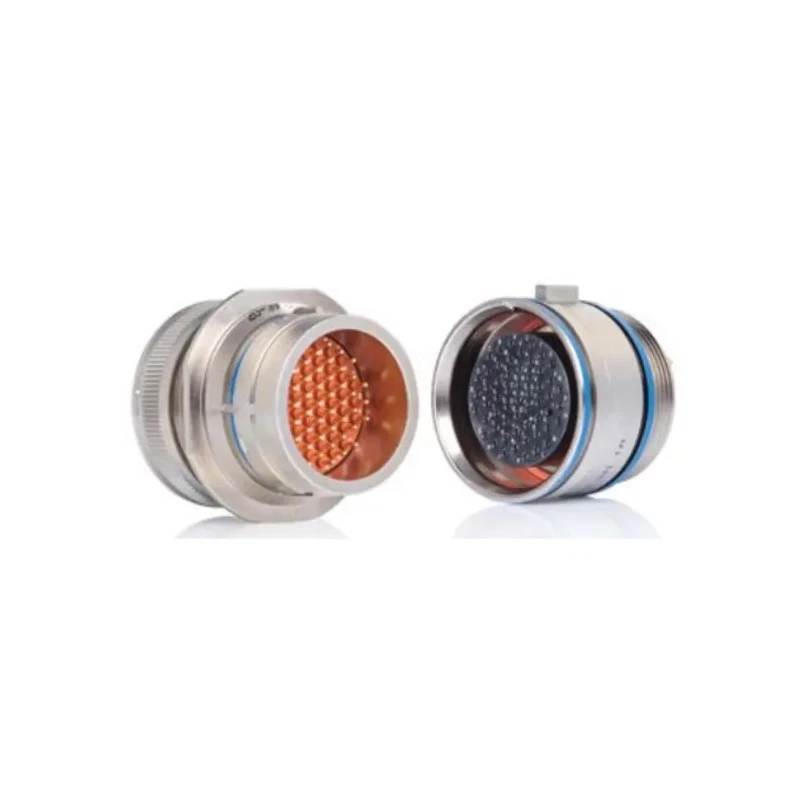

TE Connectivity MIL Spec Circular Connector Gold over Nickel Straight 56 Way Panel Connector Shell DBAS 976G 25-04 PN-A5767
Specifications
| Country of Origin | France |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | DBAS 976G 25-04 PN-A5767 |
| Mount Type | Panel |
| Housing Material | Aluminium |
| Contact Material | Gold over Nickel |
| Series | DBAS 9 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 200°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Contact Plating | Nickel Plated |
| Number of Contacts | 56 |
| Connector Gender | Male/Female |
| Shell Size | 25 |
| Mating Type | Push Pull |
| Connector Size | Standard |
Key Features
- Connector features male/female contact gender combination for versatile use.
- Shell constructed from durable aluminium ensuring robust housing.
- Gold over nickel contact material with nickel plating provides excellent corrosion resistance.
- Operates reliably within a temperature range of -55° to 200°C.
- Designed for panel mounting with a straight orientation.
- Push-pull mating type ensures secure and easy connection.
- RoHS compliant meeting environmental and safety standards.
- Suitable for harsh aerospace, military, and space applications.
Product Description
TE Connectivity DBAS 976G 25-04 PN-A5767 MIL Spec Circular Connector is a high-reliability 56 contacts electrical connector engineered for demanding aerospace, military, and space applications. Featuring a gold over nickel contact plating combined with nickel plating on contacts, this connector offers excellent corrosion resistance and long service life.
Its aluminium shell housing provides a lightweight yet durable construction, while the straight orientation and push-pull mating type allow for secure and rapid connections in panel-mounted installations. Operating efficiently across extreme temperatures from -55° to 200°C, this connector is well suited for harsh environments.
The connector assembly supports crimp termination and incorporates a male/female contact gender configuration, expanding its application versatility in complex wiring systems.
It is RoHS compliant, ensuring adherence to environmental safety guidelines. The standard shell size 25 and overall connector size conform to recognized industrial standards, making it compatible with a wide range of equipment interfaces.
Designed as part of the DBAS 9 series by TE Connectivity, this connector is manufactured in France with strict quality controls to meet military-grade specifications. Male/Female connector gender combination. Aluminium housing for lightweight durability.
Gold over nickel contact material with nickel plating. Wide operating temperature range: -55° to 200°C. Panel mount straight orientation design. Push-pull mating for secure connection. RoHS compliant for environmental safety.
Crimp termination for wire and cable connection. Standard shell size 25 for industry compatibility. Manufactured in France ensuring quality standards.
Ideal for industrial, aerospace, military, and space applications requiring robust, reliable electrical connections. Explore more from TE Connectivity and Mil Spec Circular Connectors category for superior connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 200°C.
This model is designed for panel mounting.
It features 56 contacts.
The housing is made of aluminium, and the contact material is gold over nickel with nickel plating.
The orientation of this connector is straight.
It uses crimp termination for wire and cable connections.
Yes, it is RoHS compliant, meeting environmental safety standards.
The mating type is push-pull, allowing for secure and easy connections.
The shell size of this connector is 25, conforming to recognized industrial standards.
This connector is manufactured in France.
The minimum operating temperature is -55°C.
It is suitable for aerospace, military, and space applications requiring reliable electrical connections.
