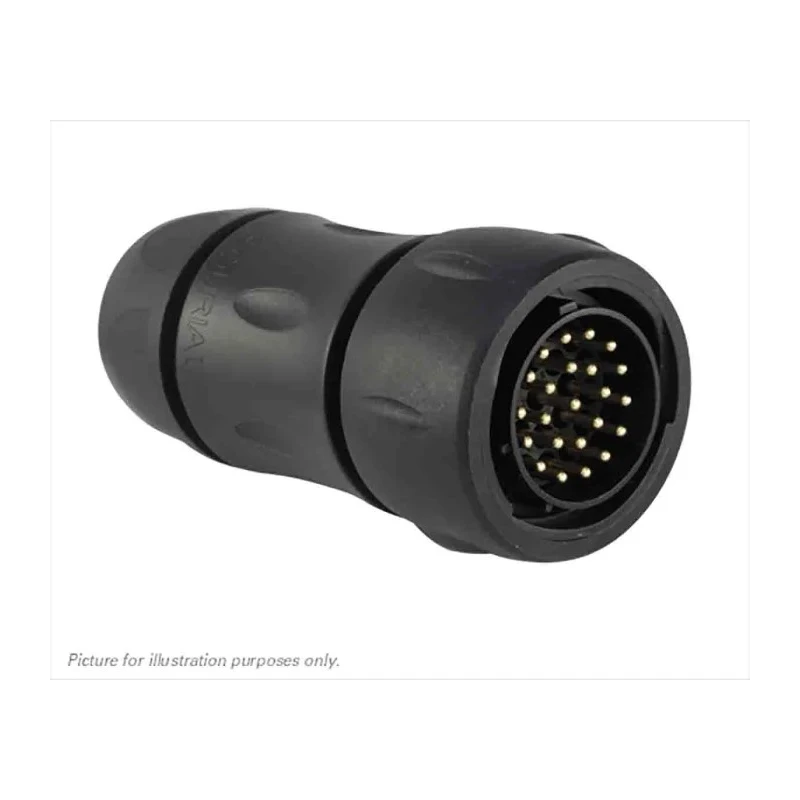

Souriau Sunbank by Eaton MIL Spec Circular Connector Copper Alloy Straight 23 Way Cable Female Black 500V UTS6JC1823P
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 500V |
| Brand | Souriau Sunbank by Eaton |
| Colour | Black |
| Orientation | Straight |
| Model | UTS6JC1823P |
| IP Rating | IP69K, IP68 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | UTS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | FBI |
| Contact Plating | Gold |
| Number of Contacts | 23 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 18 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Standard |
Key Features
- Designed for 500V operation ensuring robust power transfer.
- Connector features a black thermoplastic housing with a straight orientation.
- Bayonet mating type provides secure and quick coupling.
- Rated to IP69K and IP68 for high ingress protection in harsh environments.
- Operates reliably between -40°C and 105°C temperature range.
- Termination by crimp method for solid electrical contact.
- Connector complies with MIL-DTL-26482 military standard assuring quality and performance.
- Includes 23 contacts with male contact gender on the cable side and female connector gender on the shell.
Product Description
Souriau Sunbank by Eaton UTS6JC1823P is a MIL Spec Circular Connector designed for high-performance electronic and electrical applications. It features a straight orientation with 23 way copper alloy cable contacts plated with gold to ensure excellent conductivity and durability. The connector operates at 500V and complies with the MIL-DTL-26482 military standard, making it highly reliable for demanding industrial, military, aerospace, and transportation sectors.
The black thermoplastic housing provides mechanical robustness and environmental sealing. It offers high ingress protection standards rated IP69K and IP68, ensuring protection against dust, high pressure, and water immersion, suitable for harsh and outdoor environments. The bayonet mating type allows quick and secure coupling with female connectors.
This connector is designed to work safely in a broad temperature range from -40°C up to 105°C, suitable for extreme conditions. Termination is done by crimping, providing strong and stable electrical connections. The set contains 23 copper alloy contacts sized appropriately to handle industrial power and signals with gold plating for enhanced reliability and corrosion resistance.
The UTS series by Souriau Sunbank is well-regarded for cable plug configurations with backshell options for cable sealing ranges: size 10 (1.5-8.0mm), size 12 (3-12.0mm), and size 14 (5-14.0mm). This product is essential for electronics, military hardware, aerospace communication interfaces, and demanding industrial applications requiring rugged, reliable, and high-performance connectors.
Rated for 500V operation under the MIL-DTL-26482 standard. High ingress protection: IP69K and IP68 suitable for harsh environments. Gold-plated copper alloy contacts ensure conductivity and corrosion resistance. Crimp termination for reliable electrical connections.
Operating temperature range: -40°C to 105°C for wide environmental tolerance. Explore our Electronics Components for high-quality Mil Spec Circular Connectors and other specialized connectors available at EnvMart.
