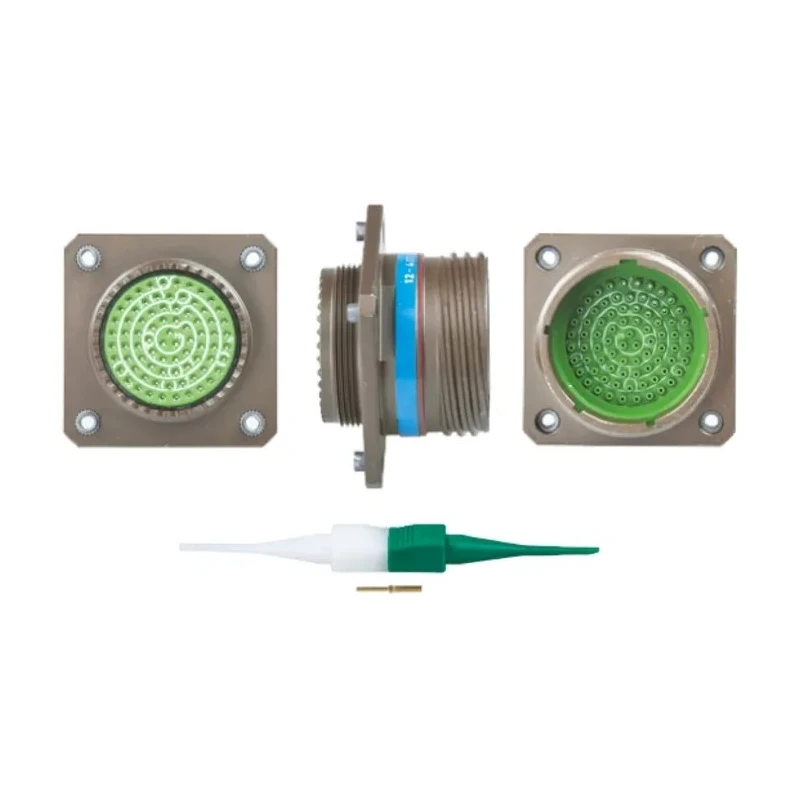

Souriau Sunbank by Eaton 79 Way Panel Mount MIL-DTL-38999 Series III Circular Connector, 5A, Aluminium Housing 8D3421W35PN

Free Delivery in India | Lowest Global Shipping Charges

Souriau Sunbank by Eaton 79 Way Panel Mount MIL-DTL-38999 Series III Circular Connector, 5A, Aluminium Housing 8D3421W35PN

Name: Souriau Sunbank by Eaton 79 Way Panel Mount MIL-DTL-38999 Series III Circular Connector, 5A, Aluminium Housing 8D3421W35PN
Brand: Souriau Sunbank by Eaton
SKU: 130229
Price: 227.2 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Souriau Sunbank by Eaton Condition New

Specifications

Country of Origin	France
Brand	Souriau Sunbank by Eaton
Orientation	Straight
Current	5A
Model	8D3421W35PN
IP Rating	IP67
Mount Type	Panel Mount
Housing Material	Aluminium
Contact Material	Copper Alloy
Series	8D
Termination Type	Crimp
Maximum Operating Temperature	175°C
Minimum Operating Temperature	-65°C
Contact Plating	Gold over Nickel
Number of Contacts	79
Contact Gender	Male
Connector Gender	Female
Shell Size	21
Military Standard	MIL-DTL-38999
Mating Type	Screw Coupling
Shell Plating	Cadmium

Key Features

The connector features a robust aluminium housing with cadmium plating for durability.
It supports a current rating of 5 amps per contact.
Contact material is copper alloy with gold over nickel plating for enhanced conductivity and corrosion resistance.
The connector offers IP67 protection and operates reliably from -65°C to 175°C.
It provides screw coupling mating with a straight orientation ensuring secure connection.
Designed in compliance with MIL-DTL-38999 Series III standards focused on military and aerospace use.
Shell size 21 with a total of 79 contacts for high-density connectivity.
Termination type is crimp, suitable for reliable electrical connections.

Product Description

Souriau Sunbank by Eaton 8D3421W35PN is a high-performance MIL-DTL-38999 Series III circular connector designed for demanding environments such as military, aerospace, marine, and industrial applications. This 79 way straight panel mount connector features an aluminium housing coated with cadmium plating for enhanced corrosion resistance and rugged durability.

The connector delivers a reliable 5 amp current rating per contact, utilizing copper alloy contacts plated with gold over nickel to ensure excellent electrical conduction and resistance to harsh conditions.

With IP67 ingress protection, the connector is suitable for use in environments exposed to dust and moisture and can operate within extreme temperature ranges from -65°C to 175°C. Its screw coupling mechanism ensures secure mating and unmating with polarizing by angular key positioning to avoid misconnection.

This panel mount connector has a shell size of 21 and offers crimp termination for stable and durable cable connections. It is engineered for over 500 mating cycles with shell-to-shell continuity to maintain EMI shielding integrity.

Manufactured in France, the product conforms with MIL-DTL-38999 Series III standards, widely recognized in civil and military aerospace, marine, and industrial sectors for its robustness and reliability in extreme environments, including resistance to vibration and shock.

The connector body is aluminium with cadmium plating to prevent corrosion. Contacts are made from copper alloy with gold over nickel plating. Supports 79 contacts with a shell size of 21 for high contact density. Operating temperature ranges from -65°C to 175°C.

IP67 rating ensures protection against dust and water ingress. Screw coupling provides quick and secure mating. Termination type is crimp for stable electrical connection. Compliant with MIL-DTL-38999 Series III standard.

Designed for industrial, aerospace, marine, and military applications.
