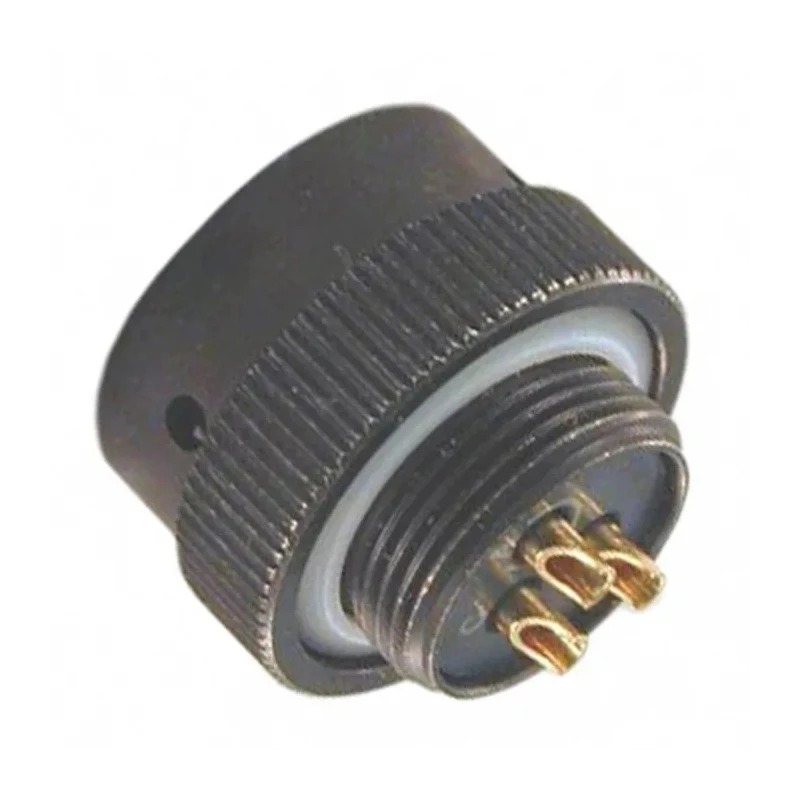

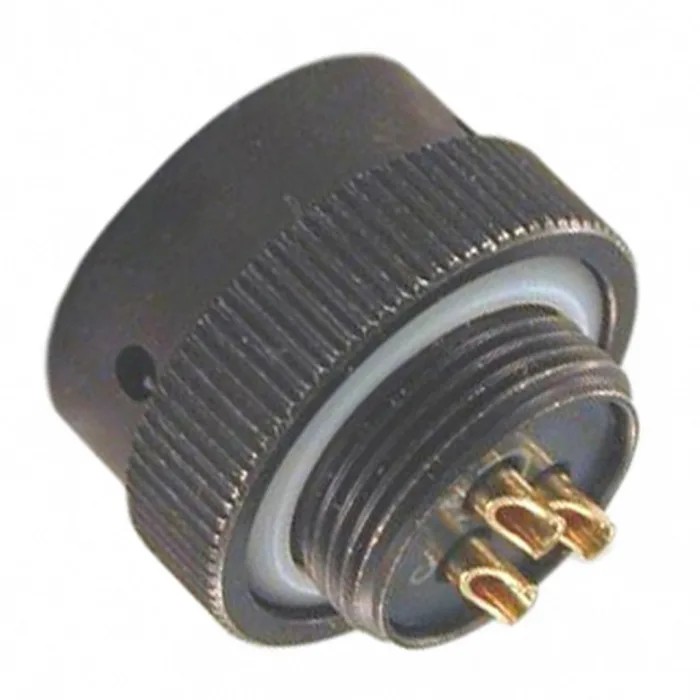

Souriau Sunbank by Eaton MIL Spec Circular Connector 3 Contacts 13A 300V AC Cable Mount Straight Copper Alloy 85106EC123S50
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 300V ac |
| Brand | Souriau Sunbank by Eaton |
| Colour | Green |
| Orientation | Straight |
| Current | 13A |
| Model | 85106EC123S50 |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | 851 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 12 |
| Military Standard | MIL-C-26482 G Series I |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Cadmium |
Key Features
- Constructed with copper alloy contacts plated with gold for reliable conductivity.
- Housing made from lightweight and durable aluminium alloy with green finish.
- Features a straight orientation with bayonet mating type for secure connection.
- Operates efficiently between -55°C and 125°C temperature range.
- Designed to MIL-C-26482 G Series I military standard ensuring high reliability.
- Shell size is 12 with cadmium plating for corrosion resistance.
- Termination type is solder suitable for robust cable connections.
- Compact size suitable for civil and military aviation, robotics, and automation applications.
Product Description
Souriau Sunbank by Eaton 85106EC123S50 MIL Spec Circular Connector is designed for high-reliability cable mounting applications. This connector features 3 contacts with male contact gender and female connector gender. Rated for 13A current and operating up to 300V AC, it supports demanding industrial and military environments.
The connector's housing is fabricated from robust aluminium alloy and plated with cadmium, providing corrosion resistance. Its copper alloy contacts plated in gold ensure excellent electrical conductivity and reliability. The straight orientation and bayonet mating type enable secure and quick coupling.
With a shell size of 12, this MIL-C-26482 G Series I certified connector operates effectively within a broad temperature range from -55°C to 125°C. The solder termination type enhances connection strength for cable assemblies.
This connector series is widely used across civil and military aviation, ground army, professional and general electronics, robotics, factory automation, machine tools, and medical equipment, demonstrating versatility and ruggedness.
Additional features include options for sealed or hermetic types, a wide variety of body styles and back fittings, and contact flexibility with solder, crimp, or PC-tail terminations.
Constructed with copper alloy contacts plated with gold for reliable conductivity. Housing made from lightweight and durable aluminium alloy with green finish. Features a straight orientation with bayonet mating type for secure connection.
Operates efficiently between -55°C and 125°C temperature range. Designed to MIL-C-26482 G Series I military standard ensuring high reliability. Shell size is 12 with cadmium plating for corrosion resistance. Termination type is solder suitable for robust cable connections.
Compact size suitable for civil and military aviation, robotics, and automation applications. Sealed design ensures protection and hermetic configuration as required. Manufactured in France, meeting stringent quality and reliability standards.
Explore more Mil Spec Circular Connectors in the EnvMart catalog for suitable industrial, laboratory, and military grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 13A current.
The maximum voltage it can handle is 300V AC.
This connector operates efficiently between -55°C and 125°C.
The housing is made from aluminium alloy, while the contacts are copper alloy plated with gold.
It uses solder termination for robust cable connections.
The shell size is 12.
It features a bayonet mating type for secure connection.
It is designed to meet the MIL-C-26482 G Series I military standard.
It is suitable for civil and military aviation, robotics, and automation applications.
The housing has a green finish.
It is manufactured in France.
This model has 3 contacts.
