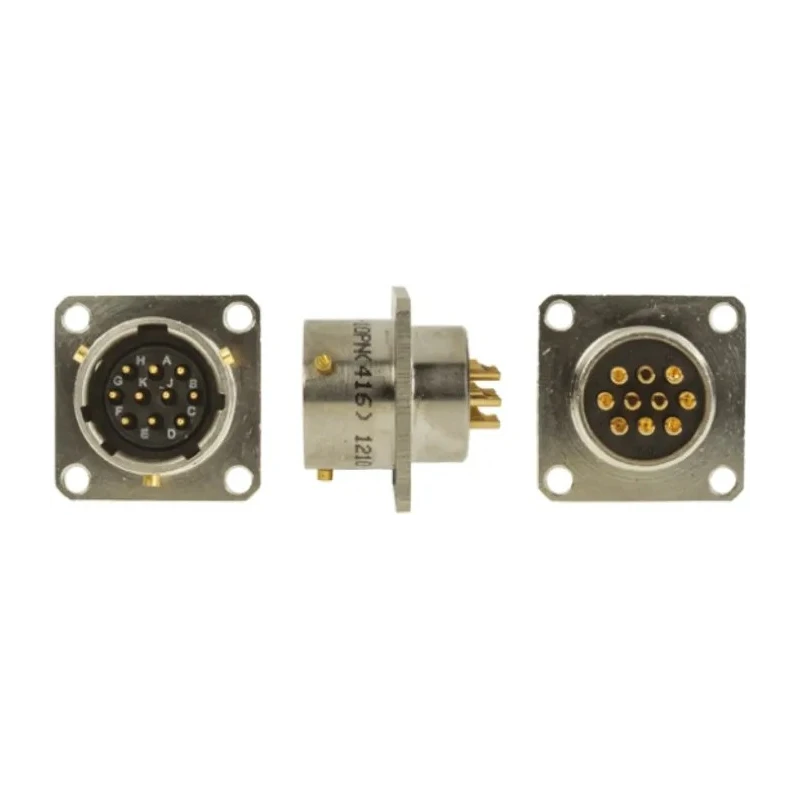

Amphenol MIL Spec Circular Connector 10 Contacts Box Mount, Nickel Iron Alloy, Miniature, 500V/700V 62GB-12E12-10PN(416)

Free Delivery in India | Lowest Global Shipping Charges

Amphenol MIL Spec Circular Connector 10 Contacts Box Mount, Nickel Iron Alloy, Miniature, 500V/700V 62GB-12E12-10PN(416)

Name: Amphenol MIL Spec Circular Connector 10 Contacts Box Mount, Nickel Iron Alloy, Miniature, 500V/700V 62GB-12E12-10PN(416)
Brand: Amphenol
SKU: 217417
Price: 54.17 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Amphenol Condition New

Specifications

Country of Origin	India
Voltage	500, 700V ac
Brand	Amphenol
Orientation	Straight
Model	62GB-12E12-10PN(416)
Mount Type	Box Mount
Housing Material	Steel
Contact Material	Nickel Iron Alloy
Series	62GB
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Tin over Copper
Number of Contacts	10
Contact Gender	Male
Connector Gender	Female
Shell Size	12
Military Standard	MIL-DTL-26482
Mating Type	Bayonet
Connector Size	Miniature
Shell Plating	Nickel

Key Features

This connector supports voltages of 500 and 700V AC.
It utilizes a bayonet mating type for secure connection.
The connector operates reliably between -55°C and 125°C.
Designed as a miniature connector with solder termination type.
Its straight orientation and box mount make it suitable for panel integration.
The shell size is 12, complying with MIL-DTL-26482 military standard.
Contact plating is tin over copper enhancing durability and conductivity.
Its housing is made from steel with an electroless nickel plating for corrosion resistance.

Product Description

Amphenol Limited 62GB-12E12-10PN(416) Mil Spec Circular Connector is a high-quality, durable circular connector featuring 10 contacts. It has a box mount type with a straight orientation designed for use in rugged industrial and military environments. The connector is constructed with a steel housing plated with nickel and utilizes nickel iron alloy contacts with tin over copper plating for reliable electrical performance.

This miniature connector supports operating voltages of 500 and 700V AC and can withstand extreme temperatures from -55°C up to 125°C. The solder termination type simplifies wiring and assembly processes. The bayonet coupling ensures a secure and quick mating mechanism, which is important in applications demanding high reliability.

The 62GB series connectors comply with the MIL-DTL-26482 military standard and feature an electroless nickel plating on their aluminum alloy shells for corrosion resistance and longevity. A special keyway design assists in preventing erroneous mating, enhancing operational safety.

These connectors are commonly used in military, aerospace, and industrial equipment where robust and reliable electrical connections are essential. The nickel-plated finish provides resilience against harsh environmental conditions, making them suitable for outdoor and heavy-duty industrial applications.

This connector is designed for solder termination with 10 male contacts and female connector gender. The box mount type allows for secure mounting on panels and chassis. It meets stringent military standards, ensuring durability and consistent performance.

Its miniature size and bayonet coupling allow for compact yet reliable connections. The nickel iron alloy contacts and plating enhance electrical conductivity and corrosion resistance.

Amphenol’s 62GB connectors are trusted components in demanding electronic systems, providing dependable connectivity under extreme conditions. Browse more connectors from Amphenol Limited and other brands on EnvMart for military and industrial connector needs.
