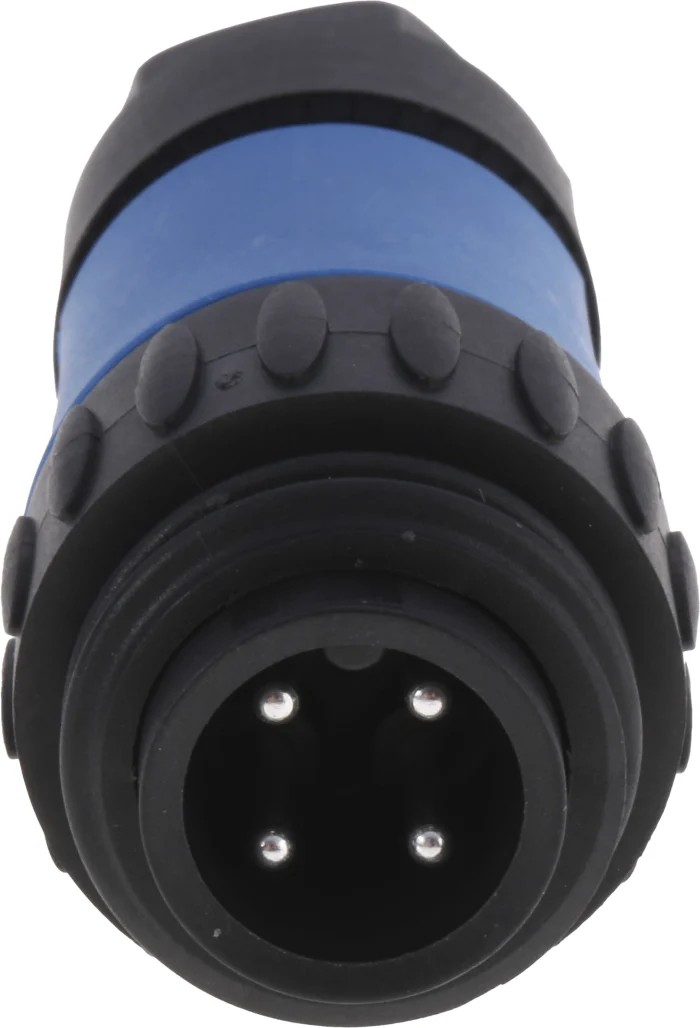

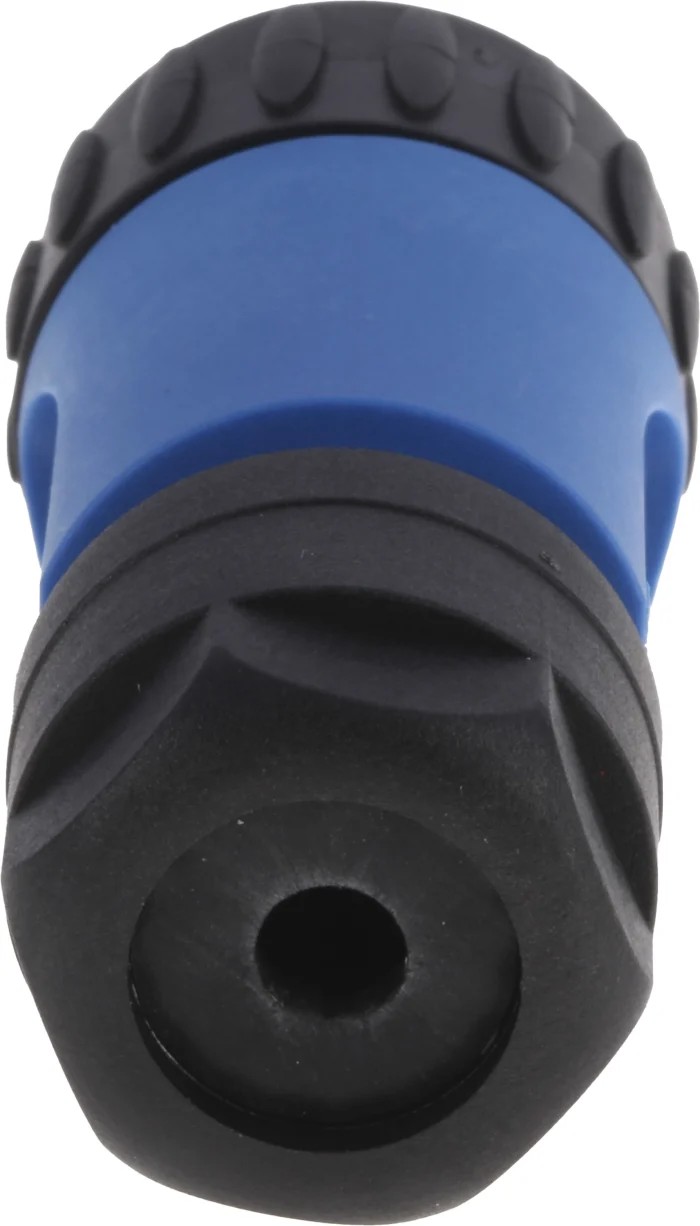

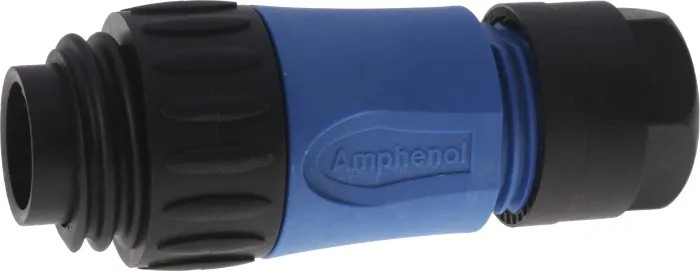

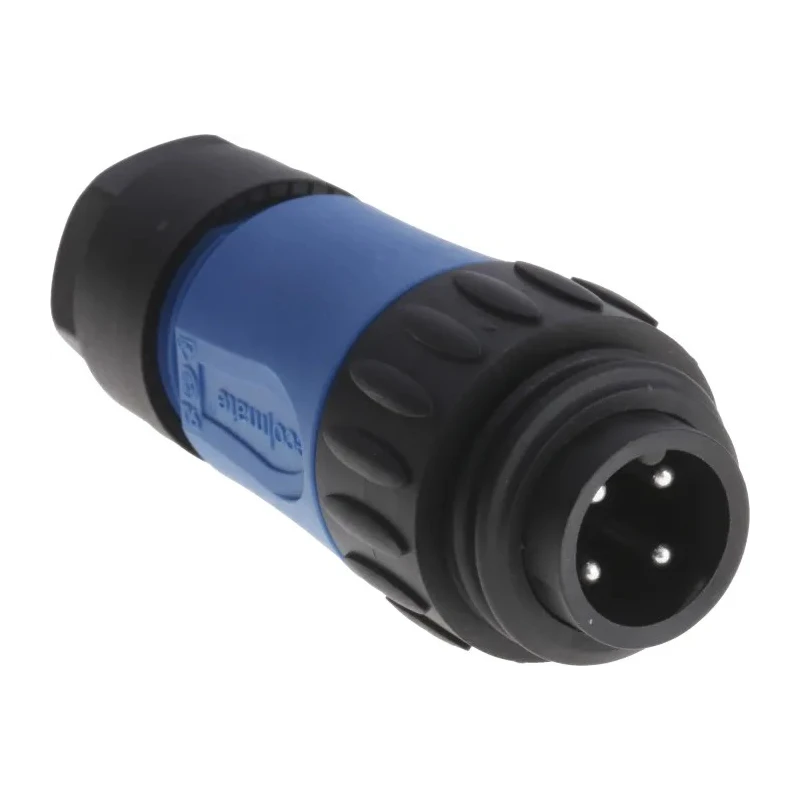

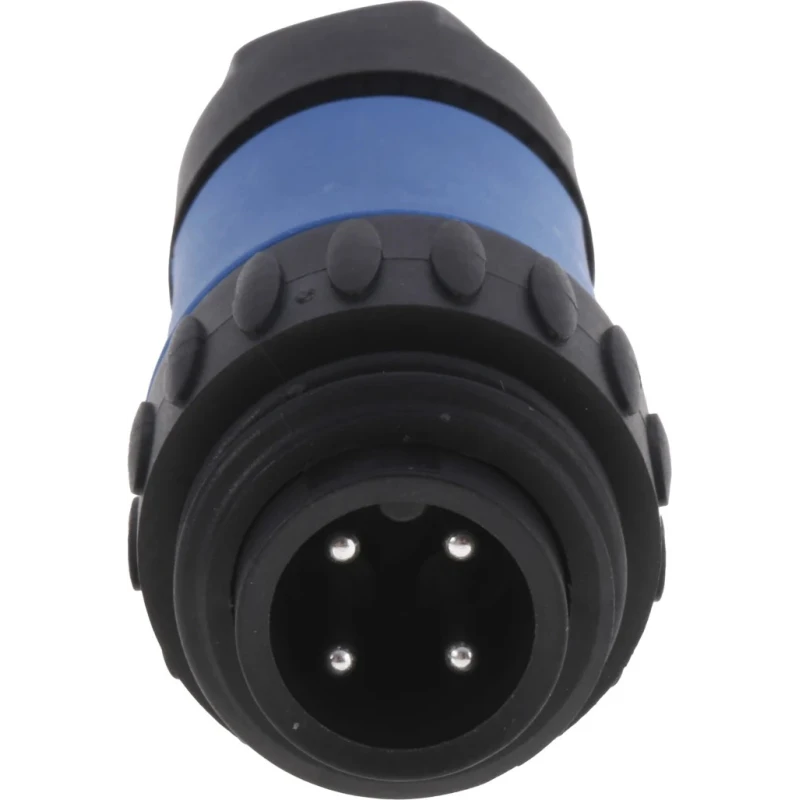

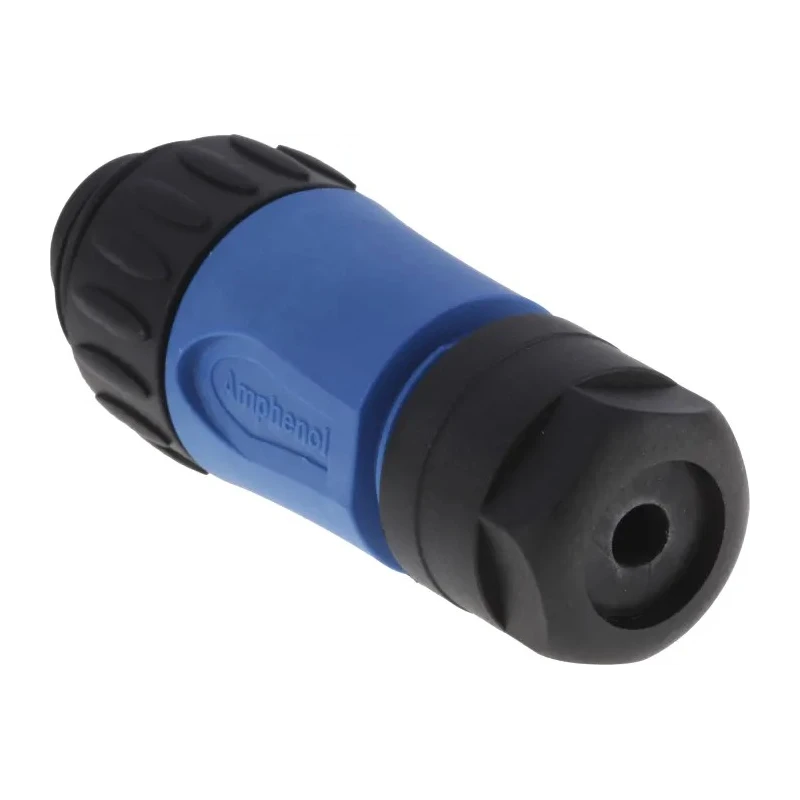

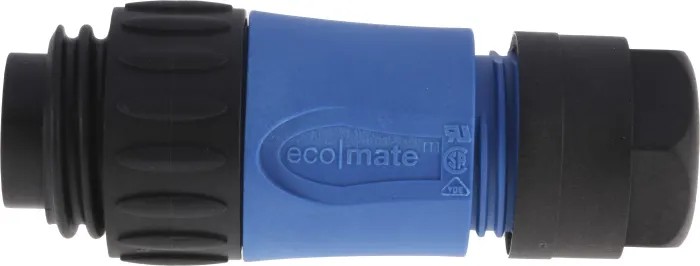

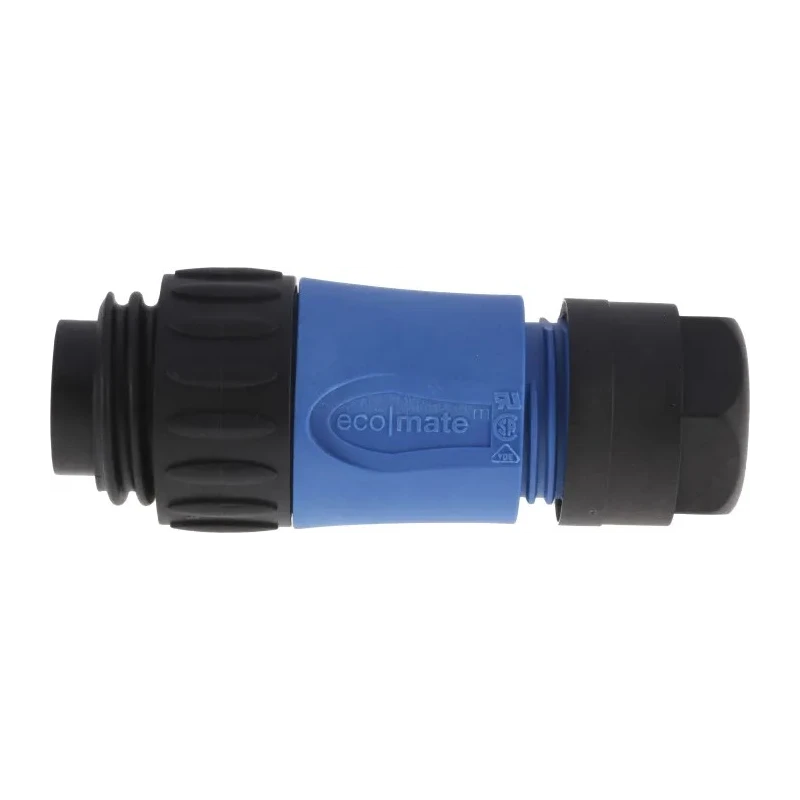

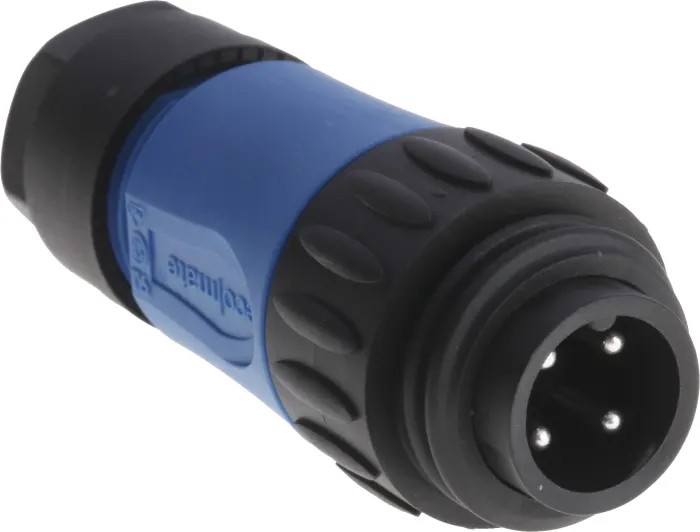

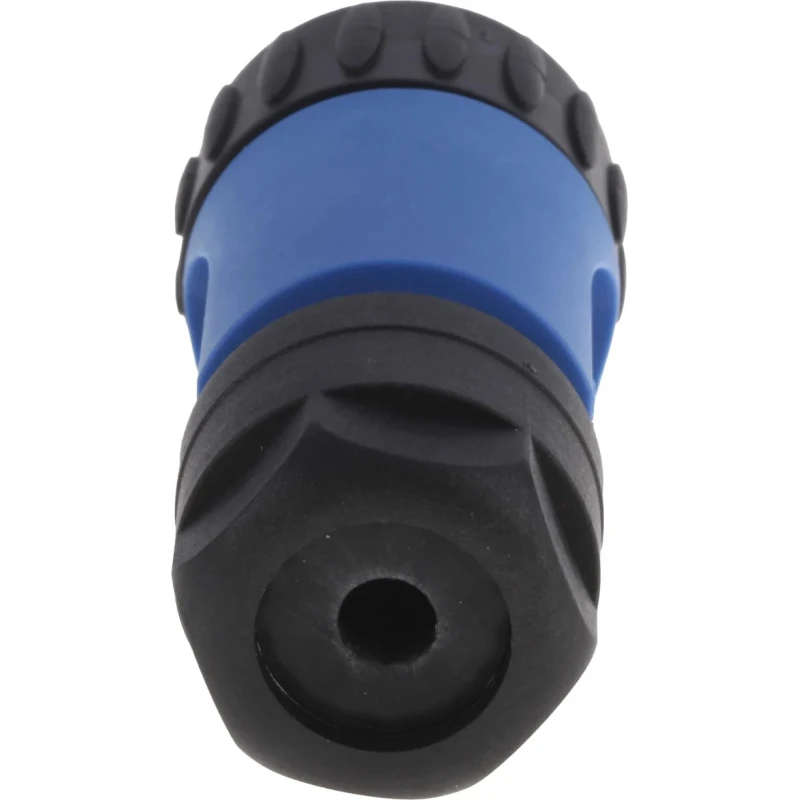

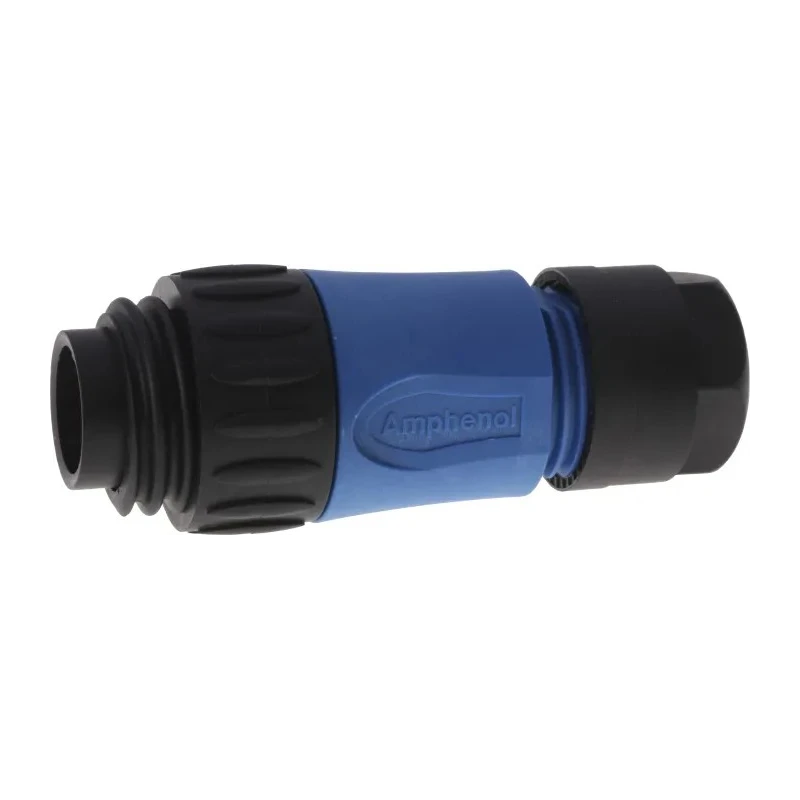

Amphenol Industrial Circular Connector, 3 Contacts, Cable Mount, Plug, Male, IP67, Ecomate M Series C01620H00310010
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 400V |
| Brand | Amphenol |
| Orientation | Straight |
| Current | 16A |
| Model | C01620H00310010 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Series | Ecomate M |
| Termination Type | Screw |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3+PE |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shell Size | 30 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Amphenol Circular Connector, 4 Contacts, Cable Mount, Plug, MaleBrand | Amphenol |
Key Features
- Features a 3-contact plus protective earth configuration for secure connections.
- Rated for operating voltages up to 400V and currents up to 16A per contact.
- Designed with a screw termination for reliable and easy assembly.
- Constructed with polymer housing and silver-plated copper alloy contacts for durability and conductivity.
- IP67 rated for water and dust protection, suitable for harsh environments.
- Compact 30 mm shell size with straight orientation and bayonet mating type.
- Operating temperature range from -40°C to 100°C broadens application scope.
- Includes key features like quick assembly, ergonomic design, and keyed orientation to prevent mismating.
Product Description
Amphenol C01620H00310010 Industrial Circular Connector offers a robust solution for power supply and control applications in industrial environments. This 3-contact cable mount connector with plug-type and male gender assures reliable electrical connections with contact ratings up to 16A and voltage up to 400V.
The connector features a polymer housing combined with silver-plated copper alloy contacts, providing excellent durability and electrical performance. Its IP67 rating ensures resistance to water ingress and dust, allowing operation under demanding conditions including submersion in fresh water.
Easy and quick assembly is facilitated by the screw termination and pre-mounted gaskets, cable glands, and clamping rings. The bayonet mating type with keyed orientation prevents incorrect mating, enhancing safety and system integrity. Operating temperatures from -40°C to 100°C make it suitable for diverse industrial and power technologies.
Applications include power supply systems, measuring and controlling environments, and other industrial uses requiring a reliable circular connector. 3 contacts plus protective earth for secure and effective power connections.
Screw termination type for durable and serviceable connections. Bayonet mating type with keyed orientation to ensure correct connection. IP67 rating provides dustproof and waterproof protection. Wide operating temperature range from -40°C to 100°C for reliability in extreme environments.
Polymer housing with silver-plated contacts ensures long service life. Compact 30 mm shell size designed for cable mount installations. Included accessories such as gaskets and clamping rings assist installation. Suitable for use in industrial, manufacturing, power supply, automation, and other demanding technical sectors requiring durable circular connectors.
Explore more Industrial Circular Connectors from Amphenol and find solutions tailored for high-performance electrical connectivity on EnvMart.
