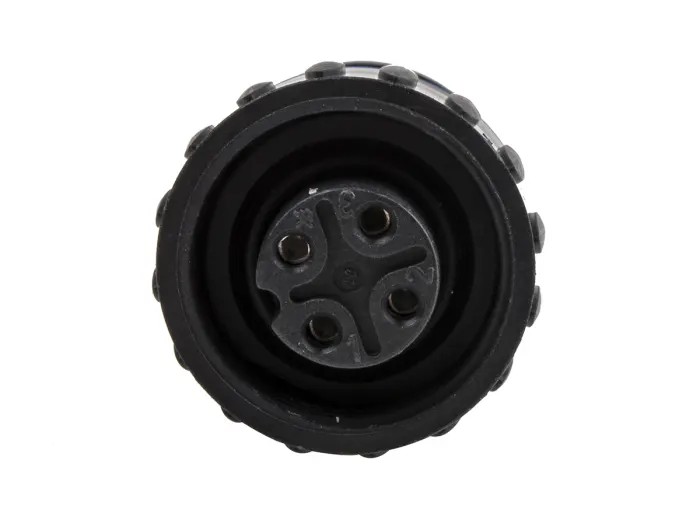

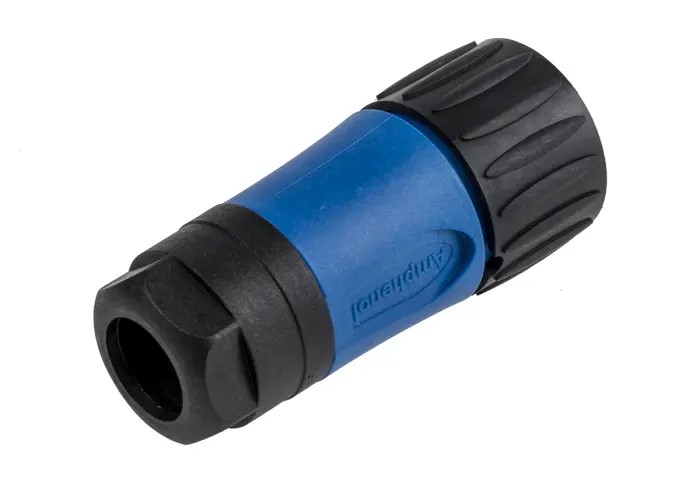

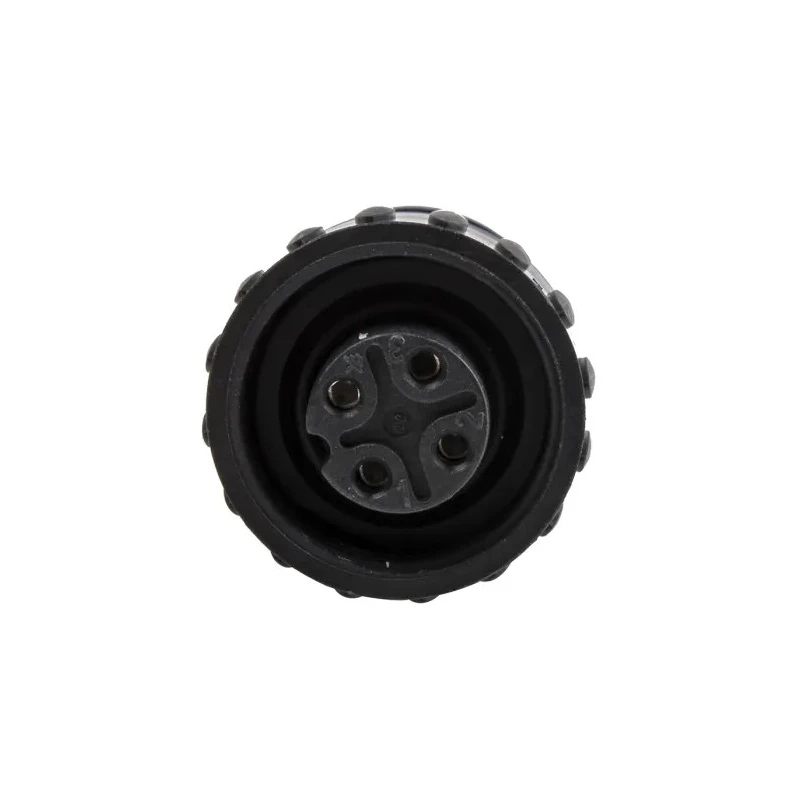

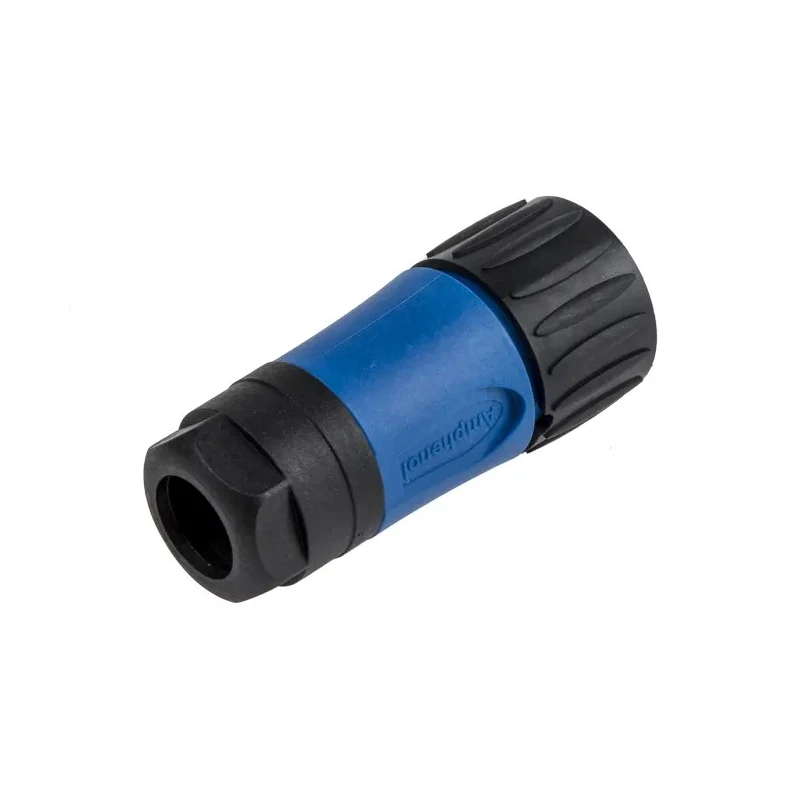

Amphenol Industrial Circular Connector 3 Contacts Cable Mount Socket Female IP67 400V 16A Ecomate M Series C01620D00310010

Amphenol C01620D00310010 is a premium Industrial Circular Connector with 3 contacts, designed as a cable mount socket type female connector from the Ecomate M Series.

This connector supports a voltage rating of 400V and a current rating of 16A per contact, suitable for robust industrial applications including measuring, controlling, and power supply technology.

It features a durable polymer housing and copper alloy contacts plated with silver over nickel, providing excellent conductivity and corrosion resistance. The connector includes a bayonet mating type for secure and easy connection with keying ensuring correct orientation.

The connector offers IP67 ingress protection, ensuring dust-tight and waterproof performance, suitable for harsh environments. Operating temperature ranges from -40°C to 100°C, making it reliable under extreme industrial conditions.

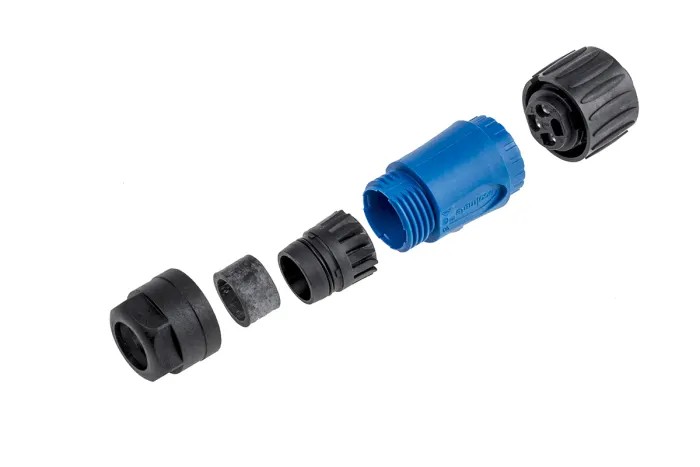

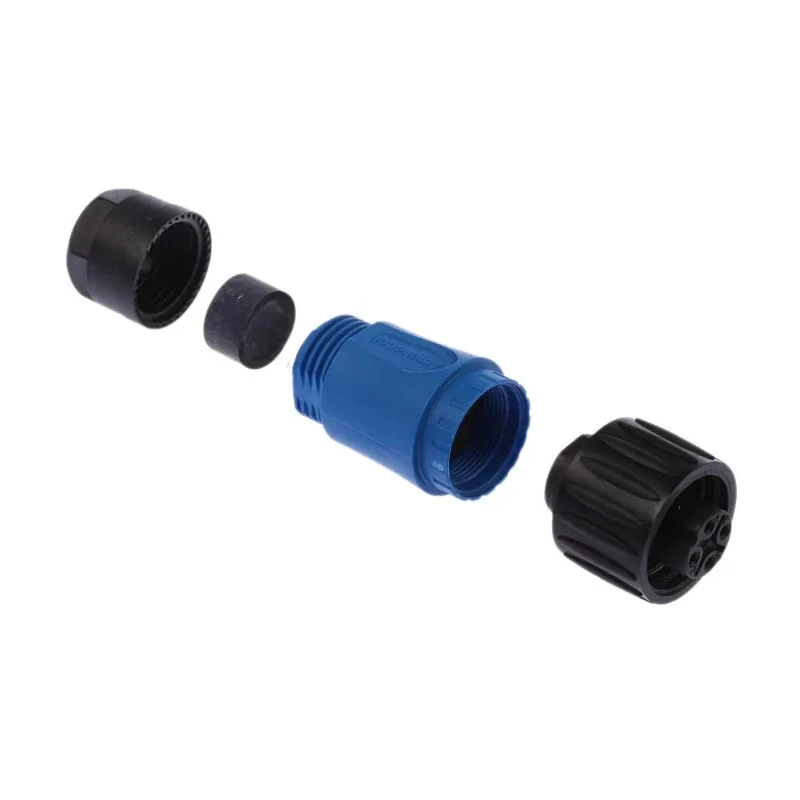

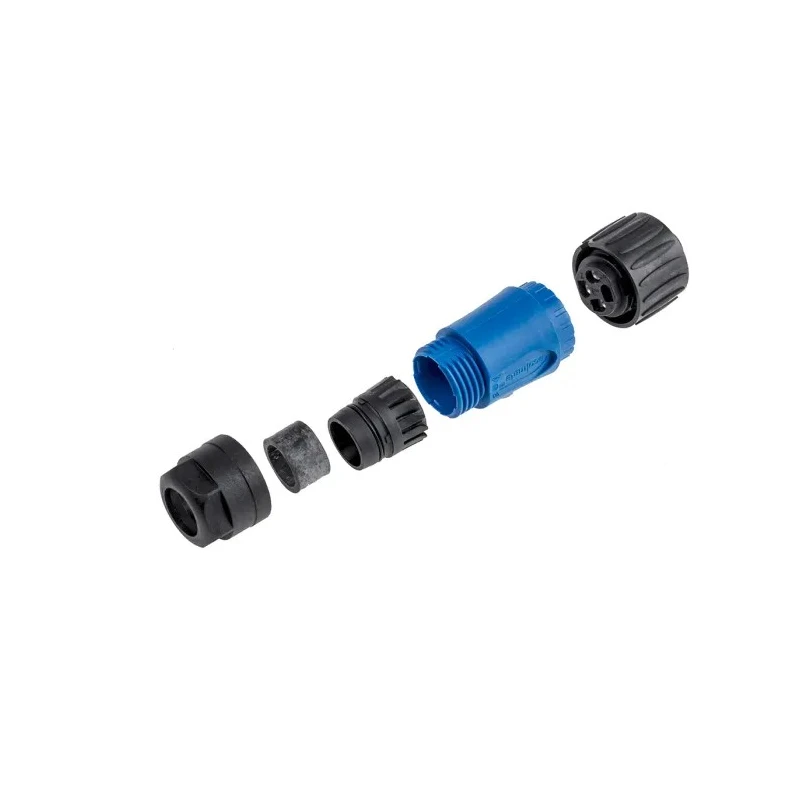

Designed with user-friendly quick and easy assembly features, it includes mounted gaskets, cable glands with clamping rings, and a pre-loaded ground contact to enhance safety and stability. The straight body orientation and standard connector size provide broad compatibility in control technology and motive engineering systems.

This industrial connector complies with IEC60664-1 and IEC60512 standards, having passed rigorous tests for performance and safety including test 5b, 3-1 and 2-1 compliance. It is mainly used in electrical power supply, measurement, and control applications in industrial settings.

The connector supports a 16A current and 400V voltage rating per contact. It has IP67 and IP65 ratings offering high ingress protection. Cable termination uses a screw type ensuring secure electrical connection. Housing material is robust polymer suitable for industrial durability.

Includes features for quick assembly and ergonomic handling. Suitable for industrial, manufacturing, and control system installations. Pre-loaded ground contact provides reliable earthing. Operates in temperatures from -40°C to 100°C safely.

Amphenol’s Ecomate M Series circular connectors are ideal for demanding applications requiring dependable connections under harsh environmental conditions. They combine rugged construction with easy installation features, making them an excellent choice for industrial automation, power distribution, and control technology.
