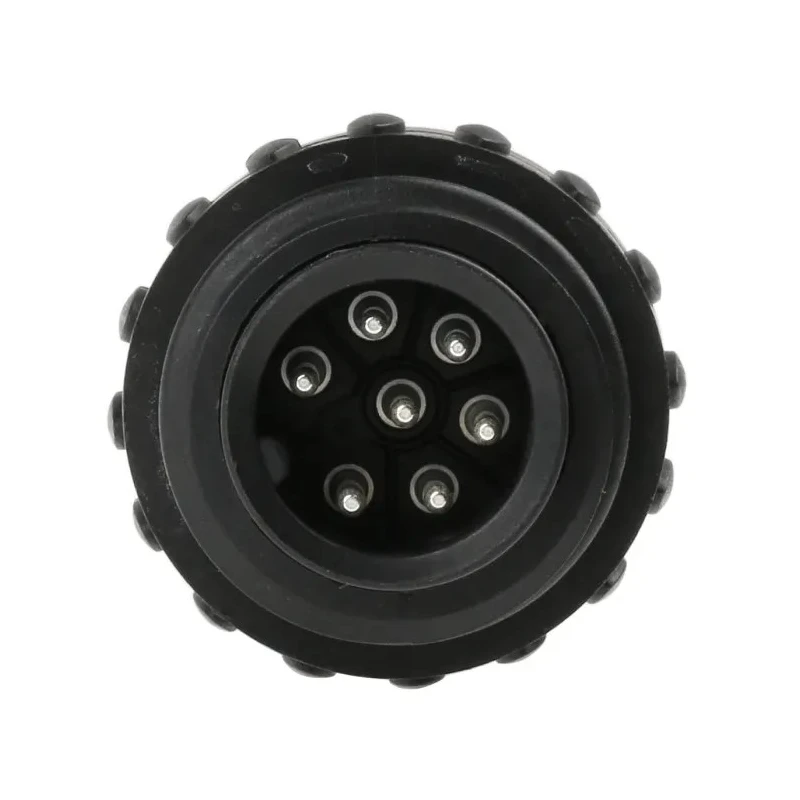

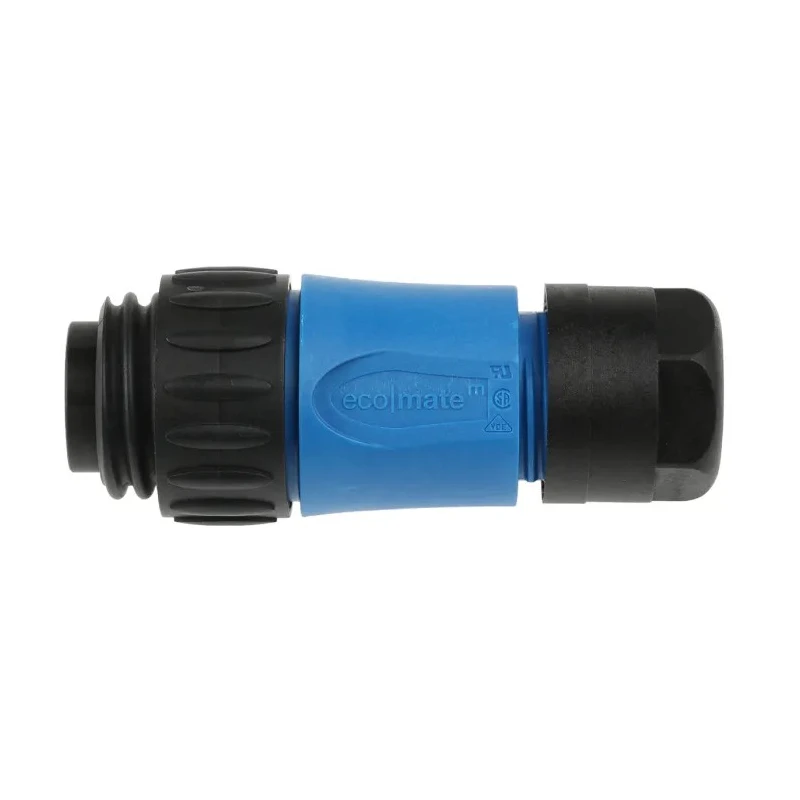

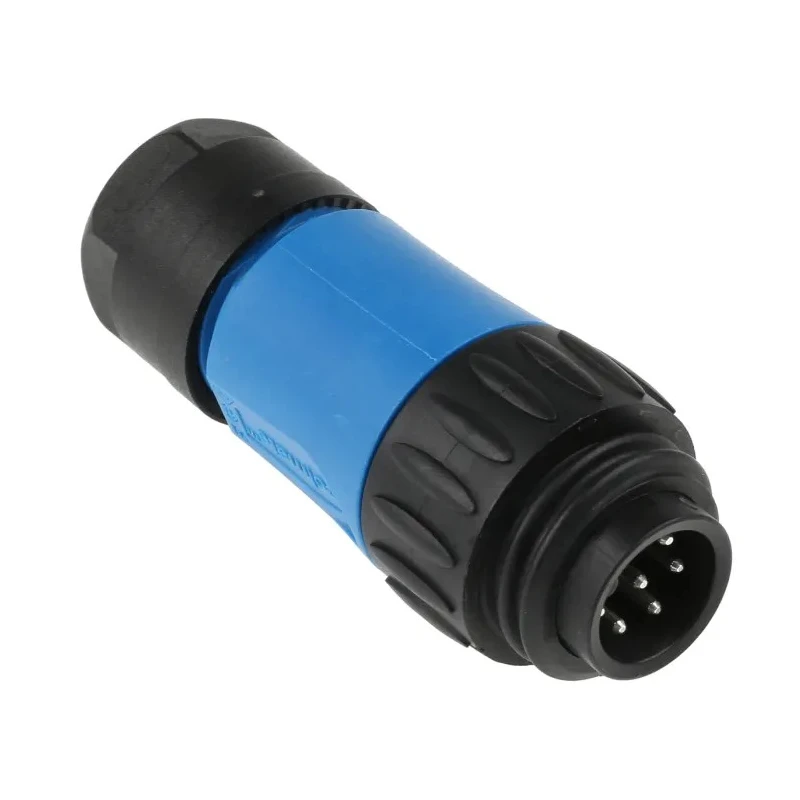

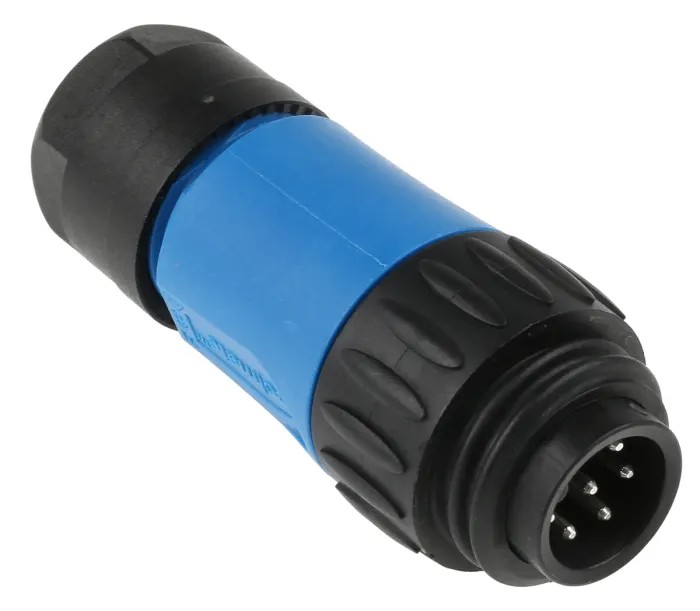

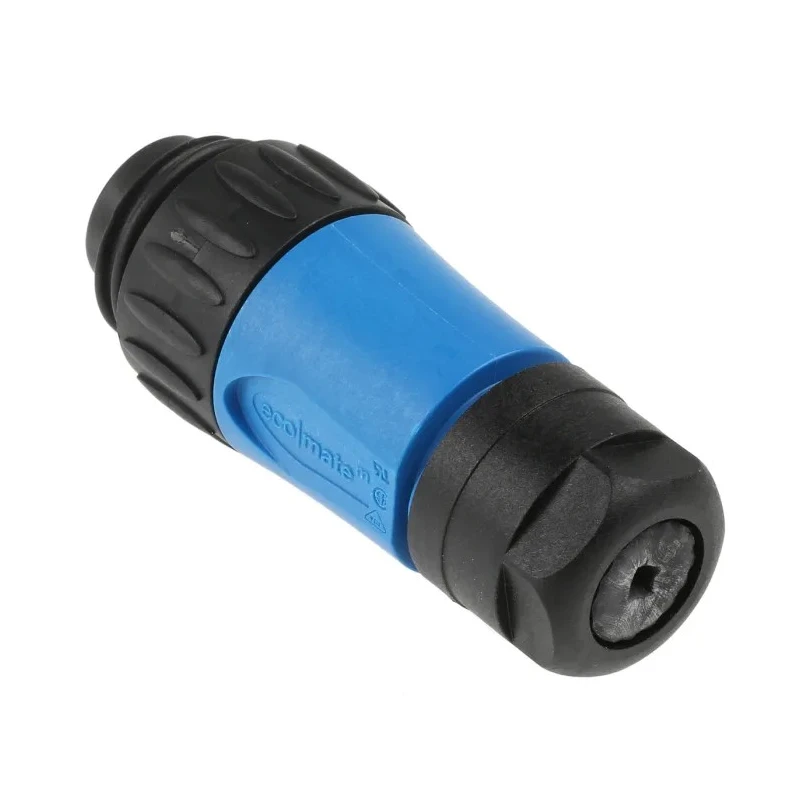

Amphenol Industrial Circular Connector 6 Contacts Cable Standard Plug Male IP67 Ecomate M Series C016 30H006 110 10

Amphenol C016 30H006 110 10 is an Industrial Circular Connector designed for rugged applications requiring a reliable connection. This cable-mounted connector features 6 silver-plated contacts plus protective earth (6 + PE), providing a current rating of 10A and voltage rating of 250V. The connector shell size measures 30 mm with a straight body orientation and a bayonet-type mating system, ensuring secure and quick connections.

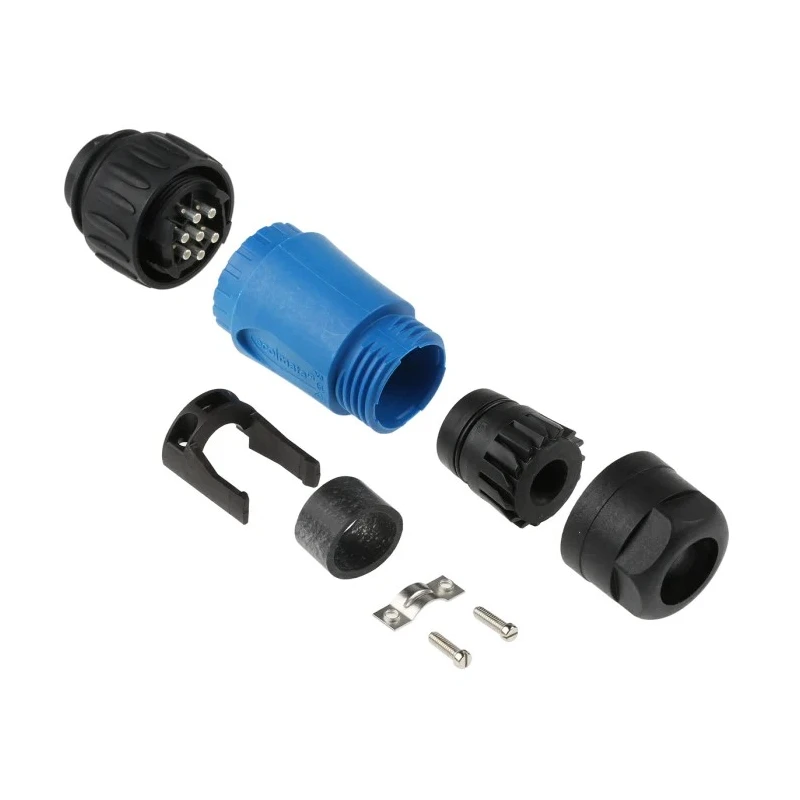

Constructed with a durable polymer housing, this connector is suitable for harsh industrial environments. It resists impact, vibration, and UV exposure, making it ideal for power supply technology, measuring, controlling, and general industrial equipment. The connector supports solder termination and includes fittings such as strain relief and clamping rings compatible with cable diameters from 6 mm to 10 mm.

The operating temperature range spans from -40°C to 125°C, accommodating diverse climates and usage conditions. The contact plating is silver over nickel, enhancing conductivity and corrosion resistance. Its robust ergonomic design combined with a pre-loaded ground contact further ensures operational safety and longevity.

These connectors comply with IEC60512 and IEC60664 standards and hold IP67 ingress protection, offering resistance against dust and water ingress. The compact and reliable design addresses the demanding requirements of industrial technology applications.

Rated for 250V voltage and 10A current per contact. Constructed with robust polymer housing for durability in industrial applications. Silver-plated copper alloy contacts ensure optimal conductivity and corrosion resistance.

Supports solder termination with a bayonet mating type and straight orientation. Operates reliably between -40°C and 125°C temperature range. Provides secure connection with a screw lock and is impact and vibration resistant.

Complies with IEC standards and features pre-loaded ground contact for enhanced safety. Includes strain relief and clamping rings for cable diameters from 6mm to 10mm.

This Amphenol Industrial Circular Connector is manufactured in the Czech Republic and dedicated for use in industrial, laboratory, construction, HVAC, manufacturing, and power supply technology environments. It is part of the Ecomate M Series known for quick assembly and robust connections.
