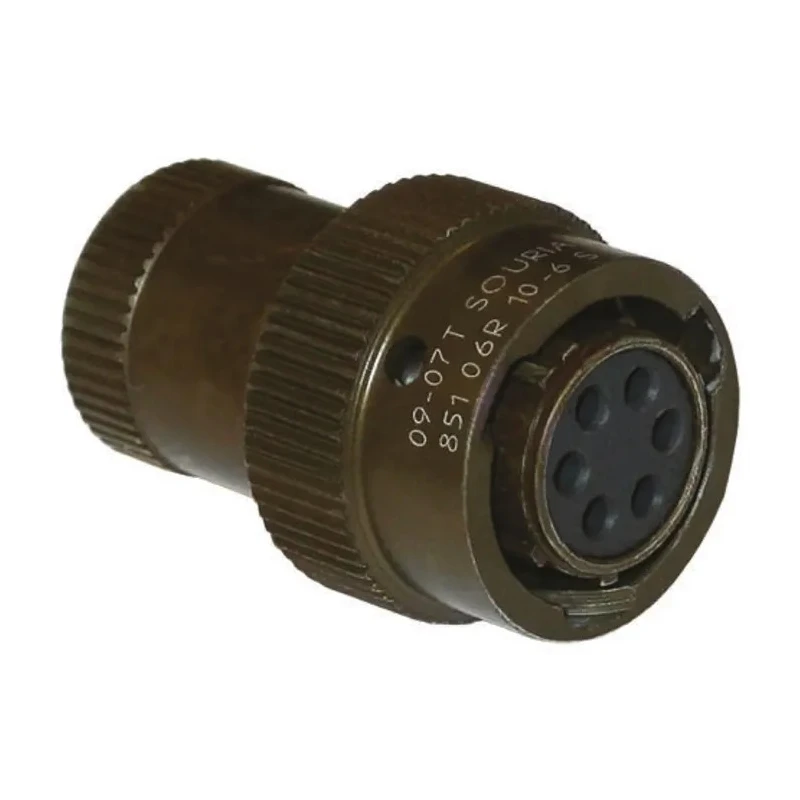

Souriau Sunbank by Eaton MIL Spec Circular Connector Copper Alloy Straight 6 Way Male Contacts 7.5A 85106T106P50

The Souriau Sunbank by Eaton 85106T106P50 Mil Spec Circular Connector is a high-quality, copper alloy straight connector designed to meet rigorous military specifications under MIL-DTL-26482 standard. It features a robust bayonet coupling mechanism, which provides a reliable mechanical and electrical connection ensuring rapid and secure locking between two mated halves.

This connector includes six male contacts capable of carrying a current of 7.5A, with gold-plated contacts to guarantee excellent conductivity and resistance to wear. The shell of size 10 is plated with olive drab cadmium to provide corrosion protection in demanding environments.

Operating in a temperature range from -55°C to 125°C, it is suitable for applications requiring durability under extreme conditions. The connector’s design includes a system of five raised keys for correct orientation and location upon mating, ensuring error-free assembly.

Its termination is solder-based providing strong, dependable electrical continuity. The cable mount type configuration allows straightforward integration into cable assemblies commonly used in industrial, military, aerospace, and transportation sectors.

Manufactured in France, the product upholds strict international quality and manufacturing standards. Practical applications include industrial electronic systems, aerospace electrical connections, and military communication setups where resilience, precision, and reliability are paramount.

Features a positive bayonet coupling mechanism for secure mating. Supports 6 male contacts with a current rating of 7.5A. Shell size 10 with olive drab cadmium plating for corrosion resistance. Operates between temperatures -55°C to 125°C with MIL-DTL-26482 military standard compliance.

Contact plating in gold for enhanced conductivity and durability. Designed with a solder termination type and cable mount configuration. Provides orientation assurance with a system of five raised keys. Constructed with copper alloy contact material for high performance.

Manufactured in France ensuring high quality standards. Explore the wide range of Souriau Sunbank by Eaton connectors for superior electrical solutions at EnvMart.
