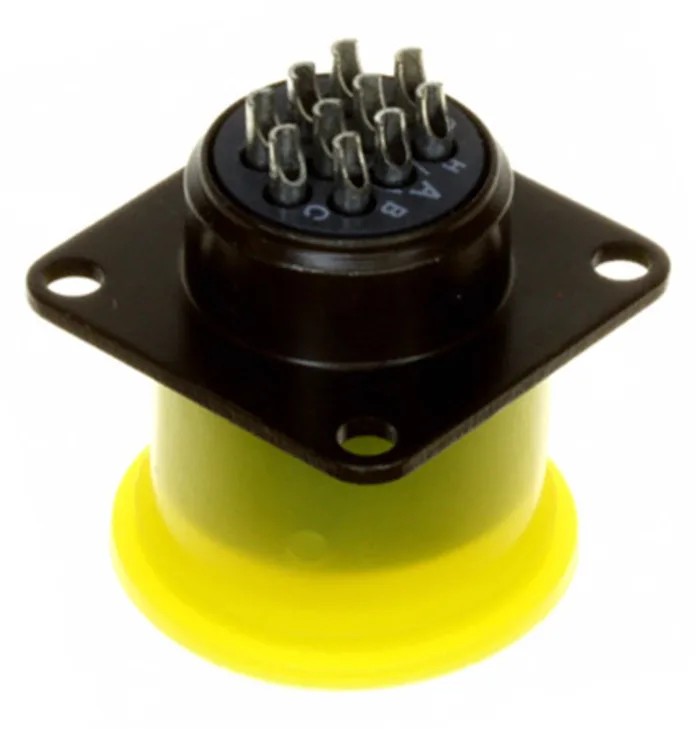

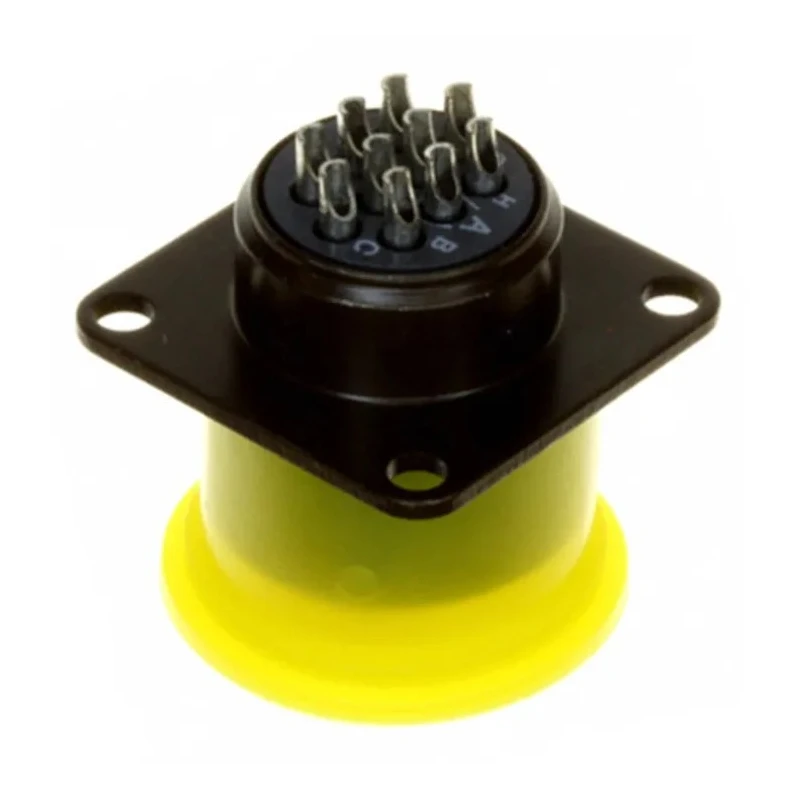

Souriau Sunbank by Eaton MIL Spec Circular Connector 10 Way Cable, Copper Alloy Straight Male Green Female 85102E1210S50
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V ac |
| Brand | Souriau Sunbank by Eaton |
| Colour | Green |
| Orientation | Straight |
| Current | 7.5A |
| Model | 85102E1210S50 |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | 851 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 12 |
| Military Standard | MIL-C-26482 G Series I |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Cadmium |
Key Features
- Features 10 female contacts allowing current up to 7.5A.
- Copper alloy contacts are gold plated to ensure reliable conductivity.
- The connector has a straight orientation with a green aluminium alloy housing plated with cadmium.
- Rated for 200V AC operation with a cable mount type.
- Complies with MIL-C-26482 G Series I military standard.
- Operates in temperatures from -55°C to 125°C, suitable for harsh environments.
- Termination type is solder, ensuring secure wiring.
- Shell size 12 and standard connector size for wide application compatibility.
Product Description
Souriau Sunbank by Eaton 85102E1210S50 MIL Spec Circular Connector 10 Way Cable is a high-quality electrical connector designed to meet rigorous military specifications. It features an aluminium alloy housing with cadmium plating and gold-plated copper alloy contacts, providing excellent corrosion resistance and electrical performance. The connector supports a current rating of 7.5A and operates at 200V AC, making it ideal for demanding industrial and aerospace applications.
The positive bayonet coupling mechanism ensures a secure and reliable connection between mating halves, maintaining mechanical robustness and electrical integrity even under vibration and environmental stresses. This connector supports a bayonet mating type and is designed for cable mounting with a straight orientation and green color coding for easy identification.
Certified to MIL-C-26482 G Series I, this connector is suitable for use in military, civil aviation, robotics, factory automation, machine tools, medical instrumentation, and other high-performance electronic systems. The assembly uses standard connector size and shell size 12, and the solder termination guarantees a stable electrical connection.
This product withstands operating temperatures ranging from -55°C to 125°C, ensuring durability under extreme environmental conditions. The contact gender is female, and the connector body is designed to mate with a male connector, facilitating versatile use.
Features 10 female contacts rated at 7.5A current. Aluminium alloy housing with cadmium plating for enhanced durability. Gold-plated copper alloy contacts provide excellent conductivity. Solder termination secures electrical connections.
Complies with MIL-C-26482 G Series I military standard. Supports bayonet coupling for reliable mating. Operates within -55°C to 125°C temperature range. Standard shell size 12 and connector size. Application suitable across military, aviation, industrial automation, and medical fields.
Use EnvMart to explore more Mil Spec Circular Connectors and other professional-grade electronic components from Souriau Sunbank by Eaton.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 7.5A.
It is rated for operation at 200V AC.
The contacts are made of copper alloy and are gold plated to ensure reliable conductivity.
It operates within a temperature range of -55°C to 125°C.
This model features a solder termination type, ensuring secure wiring.
The shell size is 12, which is a standard size for compatibility with various applications.
It uses a positive bayonet coupling mechanism for a secure and reliable connection.
The housing is made of aluminium alloy and is plated with cadmium for enhanced durability.
This connector features female contacts, designed to mate with a male connector.
It complies with the MIL-C-26482 G Series I military standard.
The housing is green, which aids in easy identification.
The connector is manufactured in India.
