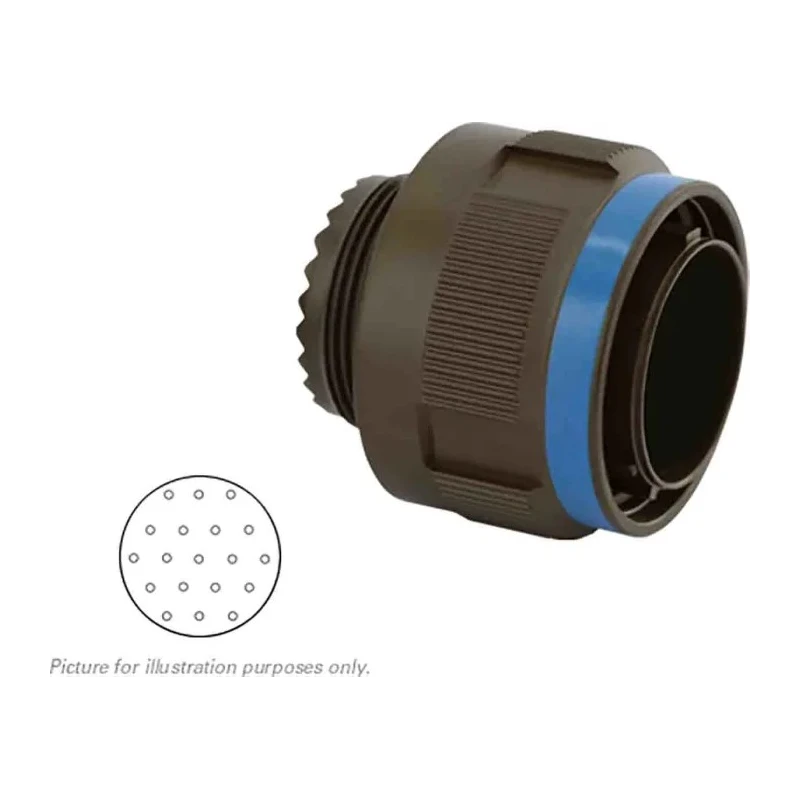

Souriau Sunbank by Eaton 19 Way Copper Alloy Straight MIL Spec Circular Connector Male, Male Contacts, Shell Size 8D515W19PN

Souriau Sunbank by Eaton 8D515W19PN 19 Way Copper Alloy Straight Mil Spec Circular Connector Male, Male Contacts, Shell Size 15 is engineered to meet MIL-DTL-38999 military specifications, ensuring superior performance in harsh environments including industrial, aerospace, marine, and military applications.

The connector features a robust aluminum housing with olive drab cadmium plating that offers excellent corrosion resistance and durability. Its male copper alloy contacts with gold over nickel plating provide reliable electrical conductivity and longevity.

This straight orientation connector uses a screw coupling mating type with a quick self-locking mechanism, allowing secure and efficient connections.

The device operates across a broad temperature range from -65°C to 175°C and supports a current rating of 7.5A. The IP67 rating ensures resistance to dust and water ingress, suitable for demanding environmental conditions.

Termination is via crimp, facilitating strong and stable cable attachment. The 8D series connectors offer 100% scoop proof polarizing options through angular key positioning and EMI enhanced protection by shielding ring and shell to shell bottoming.

This connector uses copper alloy male contacts for reliable conductivity. The shell is made of aluminum with olive drab cadmium plating for corrosion resistance. It features a straight orientation with screw coupling mating type.

Rated for 7.5A current with IP67 protection against dust and water. Operates in a wide temperature range from -65°C up to 175°C. Termination is made by crimp for secure attachment. Compliant with MIL-DTL-38999 military standard for rugged applications.

Series 8D provides quick screw coupling with self-locking mechanism. Gold over nickel plating on contacts ensures durability and minimizes corrosion. Suitable for industrial, marine, aerospace, and military use. These features make it ideal for use in industrial manufacturing, water treatment systems, aerospace engineering, marine equipment, and military communication systems.
