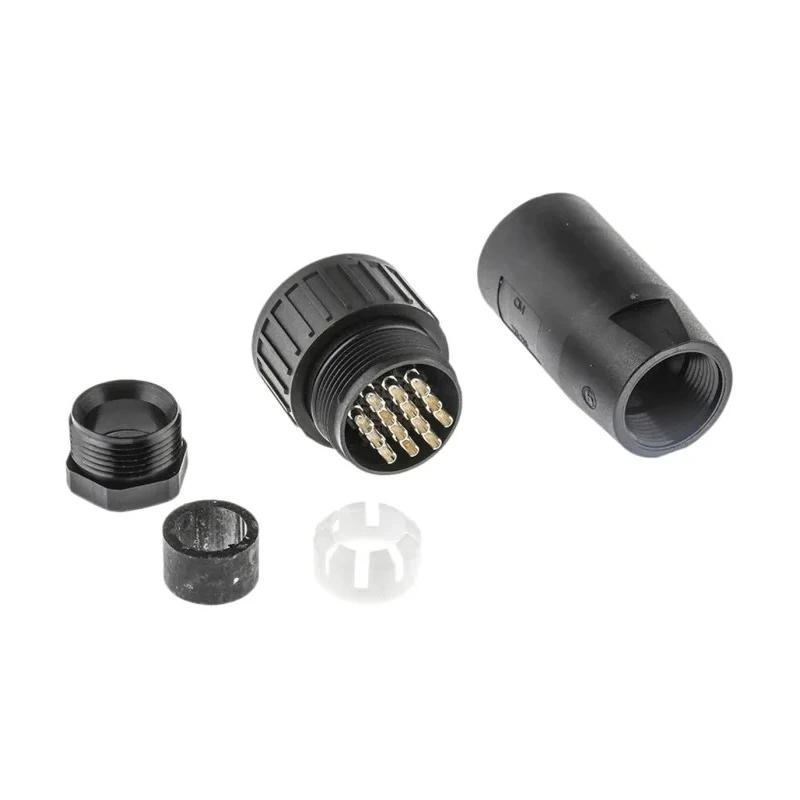

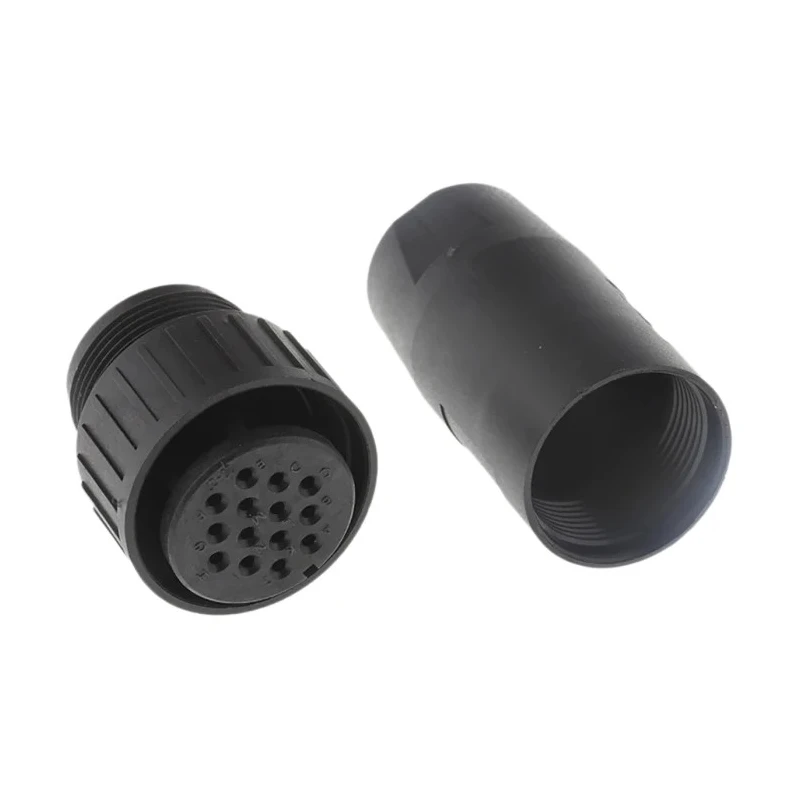

Hirschmann Copper Straight 14 Way Cable MIL Spec Circular Connector Female Contacts Shell Size 20 933067100 CM 06 EA 20-27 S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Hirschmann |
| Orientation | Straight |
| Current | 5A |
| Model | 933067100 CM 06 EA 20-27 S |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polyamide Powder-Filled with Glass Particles |
| Contact Material | Copper |
| Series | CM |
| Termination Type | Solder |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Silver |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 20 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Screw Coupling |
Key Features
- Features 14 female contacts ensuring secure electrical connectivity.
- Rated for 5A current and withstands AC voltages up to 50V.
- Designed with a durable polyamide powder-filled housing reinforced with glass particles.
- Operates reliably between -40°C and 90°C for harsh environments.
- Provides IP67 ingress protection for dust and water resistance.
- Incorporates silver-plated copper contacts for optimal conductivity and corrosion resistance.
- Designed according to MIL-DTL-5015 military standard specifications.
- Straight connector orientation with cable mount type and screw coupling mating type.
Product Description
Hirschmann 933067100 CM 06 EA 20-27 S is a MIL Spec Circular Connector tailored for demanding industrial, military, and commercial applications requiring robust and reliable cable connections. This type features 14-way female copper contacts arranged in a straight cable connector format, designed with screw coupling to ensure secure mating. The shell size 20 housing is fabricated from polyamide powder-filled with glass particles, providing high mechanical strength and durability while maintaining lightweight construction.
With a current rating of 5A and an operating voltage of 50V AC, this connector meets MIL-DTL-5015 military standards and offers IP67 protection against dust ingress and water immersion, making it suitable for harsh environments.
The contacts are copper-based with silver plating, enhancing conductivity and ensuring excellent corrosion resistance. The operating temperature range spans from -40°C up to 90°C, allowing use in extreme temperature conditions. The solder termination type simplifies cable assembly, and integrated strain relief further protects from mechanical stresses.
This Hirschmann CM series connector is widely used for connecting continuous and proportional action valves, and its contact arrangements and mounting dimensions make it interchangeable with other manufacturers’ compatible products with screw locking types.
Features 14 female contacts ensuring secure electrical connectivity. Rated for 5A current and withstands AC voltages up to 50V. Designed with a durable polyamide powder-filled housing reinforced with glass particles. Operates reliably between -40°C and 90°C for harsh environments.
Provides IP67 ingress protection for dust and water resistance. Incorporates silver-plated copper contacts for optimal conductivity and corrosion resistance. Designed according to MIL-DTL-5015 military standard specifications.
Straight connector orientation with cable mount type and screw coupling mating type. Includes strain relief to maintain cable integrity and connection stability.
Choose Hirschmann CM series for a high-quality Mil Spec Circular Connector meeting rigorous industrial and military requirements. Explore EnvMart categories for related connectors and cable assembly components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current of 5A.
The maximum operating temperature for this model is 90°C.
It features 14 female contacts made of copper with silver plating for optimal conductivity and corrosion resistance.
The shell size of this connector is 20.
The minimum operating temperature for this model is -40°C.
It has a screw coupling mating type, ensuring secure connections.
The housing is made from polyamide powder-filled with glass particles, providing high mechanical strength.
Yes, it is designed according to the MIL-DTL-5015 military standard specifications.
This model uses solder termination type for cable assembly.
This connector is widely used for connecting continuous and proportional action valves in industrial and military applications.
The connector is rated for AC voltages up to 50V.
