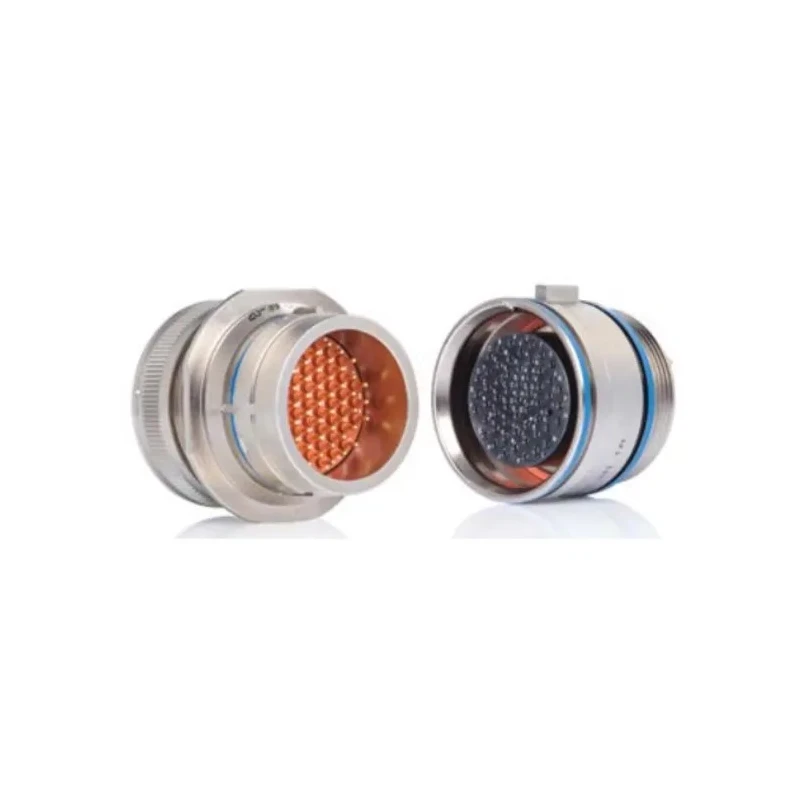

TE Connectivity MIL Spec Circular Connector 11 Contacts Male/Female Panel Mount Gold over Nickel DBAS 976-25-04 SN 059
Specifications
| Country of Origin | France |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | DBAS 976-25-04 SN 059 |
| Mount Type | Panel |
| Housing Material | Aluminium |
| Contact Material | Gold over Nickel |
| Series | DBAS 9 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 200°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Contact Plating | Nickel Plated |
| Number of Contacts | 11 |
| Connector Gender | Male/Female |
| Shell Size | 25 |
| Mating Type | Push Pull |
| Connector Size | Standard |
Key Features
- Complies with RoHS standards for environmental safety.
- Push-pull mating type enables reliable connection and disconnection.
- Operates effectively within temperature range of -55°C to 200°C.
- Constructed with aluminium housing for robust mechanical strength.
- Contact plating includes nickel plating for corrosion resistance.
- Suitable for aerospace and military applications requiring dependable circular connectors.
- Includes 11 electrical contacts supporting multiple signal or power circuits.
- Installation via panel mount ensures secure and convenient integration.
Product Description
TE Connectivity DBAS 976-25-04 SN 059 is a MIL Spec Circular Connector designed for industrial, aerospace, military, and space applications requiring high reliability in harsh environments. It features a straight orientation with a panel mount type and comprises 11 electrical contacts arranged in a male/female configuration. The connector housing is made from aluminium, providing mechanical durability and lightweight construction. Contacts are plated with gold over nickel to ensure excellent conductivity and resistance against corrosion while the shell is nickel plated over an aluminium base for robust shielding.
This connector supports a wide operating temperature range from -55°C to 200°C, making it suitable for extreme temperature environments. It employs a push-pull mating type mechanism for fast and secure connections. Termination is by crimp, facilitating stable wire-to-panel connections suitable for power and signal circuit applications.
MECHANICAL AND ENVIRONMENTAL FEATURES:. Push-pull self-locking ensures reliable coupling and uncoupling under demanding conditions. Sealable and shielded design protects against environmental contaminants. Use of polyetherimide insulation materials contributes to overall electrical insulation and heat resistance.
This component is ideal for use in aerospace manufacturing, military vehicle electronics, aerospace ground equipment, and industrial control systems requiring rugged, dependable circular connectors. The design supports secure multi-contact connections capable of handling both power and signal transmission.
Package includes one MIL Spec Circular Connector with 11 contacts in shell size 25, suitable for panel mounting. Explore more about TE Connectivity products and other Mil Spec Circular Connectors in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 200°C.
This model features 11 electrical contacts arranged in a male/female configuration.
The housing is made from aluminium, and the contacts are plated with gold over nickel for conductivity and corrosion resistance.
It employs a crimp termination type for stable wire-to-panel connections.
This connector features a push-pull mating type, allowing for quick and secure connections.
Yes, it complies with RoHS standards for environmental safety.
The shell size of this connector is 25.
The minimum operating temperature is -55°C, making it suitable for extreme conditions.
It is ideal for aerospace, military, and industrial control systems requiring high reliability in harsh environments.
This model is designed for panel mounting, ensuring secure and convenient integration.
This connector is manufactured in France.
The design includes shielding to protect against environmental contaminants, enhancing reliability in harsh conditions.
