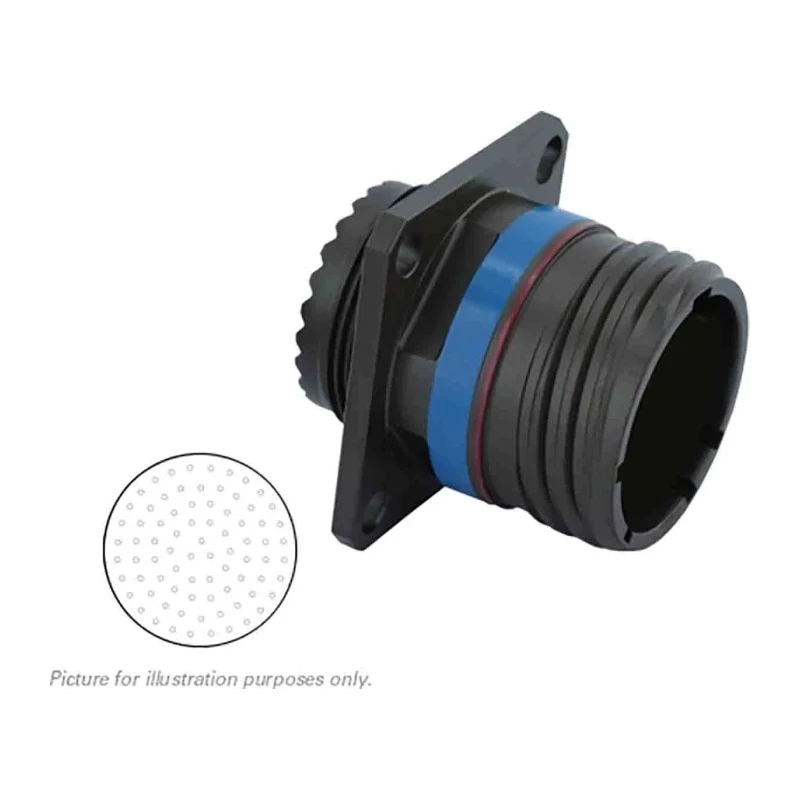

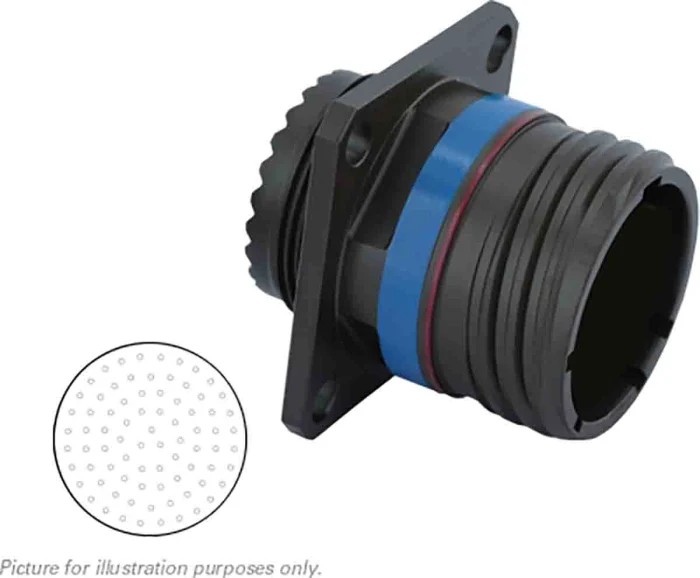

Souriau Sunbank by Eaton 79 Way Panel Mount MIL Spec Circular Connector Copper Alloy Straight 8D 8D021Z35PN
Specifications
| Country of Origin | France |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 5A |
| Model | 8D021Z35PN |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | 8D |
| Termination Type | Crimp |
| Maximum Operating Temperature | 200°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 79 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 21 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Nickel Zinc |
Key Features
- Designed for military and civil aerospace applications.
- Constructed with aluminium housing and nickel zinc plating for durability.
- Features 79 contacts with male contact gender and female connector gender.
- Rated for 5A current with crimp termination type.
- Meets MIL-DTL-38999 standard with IP67 environmental protection.
- Operates reliably from -65°C to 200°C temperature range.
- Offers screw coupling mating type with straight orientation.
- Provides high resistance to shock and vibration with over 500 mating cycles.
Product Description
Souriau Sunbank by Eaton 8D021Z35PN MIL Spec Circular Connector is a high-performance, 79 way panel mount circular connector designed according to MIL-DTL-38999 standards. It features a rugged aluminium housing with nickel zinc plating and copper alloy contacts plated with gold over nickel for superior conductivity and corrosion resistance. This straight orientation connector is intended for use in demanding environments including military, aerospace, marine, offshore, and industrial applications.
The connector supports a current rating of 5A and offers crimp termination, ensuring secure and reliable electrical connections. It meets the IP67 rating for protection against dust ingress and immersion in water, making it suitable for harsh conditions. Its operating temperature ranges from -65°C to 200°C, supporting performance in extreme temperature environments.
The 8D series is equipped with a screw coupling mechanism providing a secure locking and is 100% scoop proof with polarising options via angular positioning, enhancing connection reliability and EMI protection. It withstands high mechanical shocks (300g, 3ms) and vibration, designed for over 500 mating and unmating operations.
Commonly used in industrial, military ground personnel, marine, offshore, and aerospace equipment, this connector ensures durability and high contact density in compact form factors. The square flange receptacle design enables easy panel mounting and stable connection under vibration and shock conditions.
Rugged aluminium housing with nickel zinc plating. High density 79 contact points with gold over nickel plating. Screw coupling mechanism with self-locking feature. Compliance with MIL-DTL-38999 military standard. IP67 rated for dust and water protection.
Operates over a wide temperature range of -65°C to 200°C. Suitable for industrial, marine, aerospace, and military applications. Ensures EMI protection and 100% scoop proof design. Manufactured in France with high quality and reliability standards.
Explore the complete range of Souriau Sunbank by Eaton Mil Spec Circular Connectors at EnvMart for robust and reliable connectivity solutions in critical applications.
