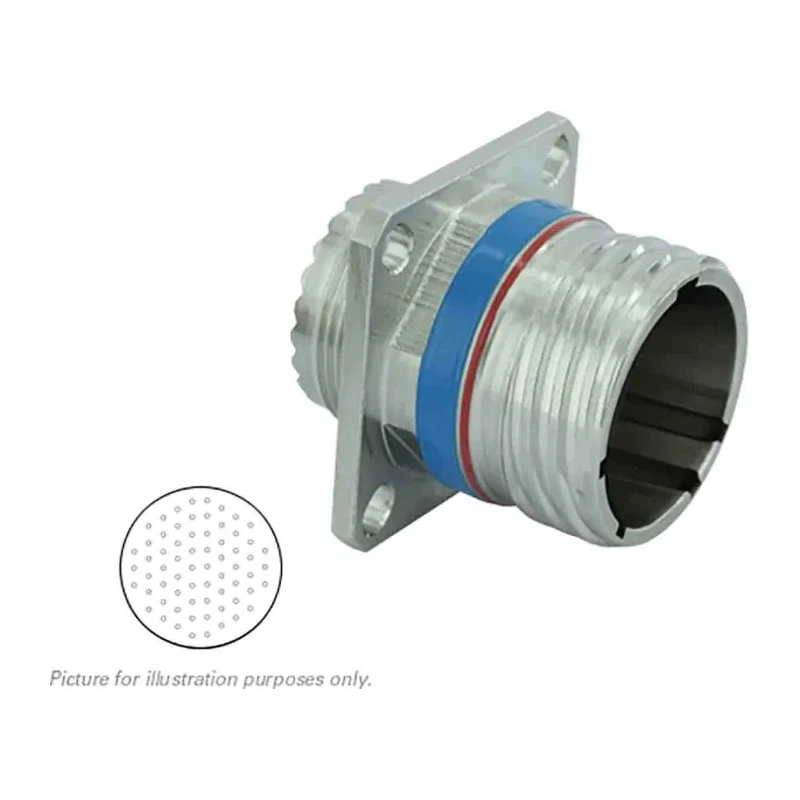

Souriau Sunbank by Eaton 66 Way Copper Alloy Straight MIL Spec Circular Connector Female with Male Contacts Shell 8D019F35AN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 5A |
| Model | 8D019F35AN |
| IP Rating | IP67 |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | 8D |
| Termination Type | Crimp |
| Maximum Operating Temperature | 200°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 66 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 19 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Nickel |
Key Features
- The connector supports up to 5A current per contact providing reliable electrical performance.
- Shell size 19 ensures compatibility with MIL-DTL-38999 military standards for rugged environments.
- Constructed with aluminium housing and nickel plating for corrosion resistance and durability.
- Contact plating of gold over nickel enhances conductivity and prevents oxidation.
- The connector has an IP67 rating for protection against dust and water ingress.
- Suitable for operating temperatures ranging from -65°C to 200°C for extreme conditions.
- Screw coupling mating type with self-locking mechanism ensures secure connections.
- Termination type is crimp for dependable contact attachment.
Product Description
Souriau Sunbank by Eaton 8D019F35AN is a 66 Way Copper Alloy Straight MIL Spec Circular Connector with female connector gender and male contacts designed to meet the MIL-DTL-38999 military standard. Featuring a shell size of 19 and aluminium housing with nickel plating, this connector is engineered for robust performance in harsh industrial and military environments.
It supports a current rating of 5A per contact and is rated IP67, providing excellent resistance to dust and water ingress. The contacts are plated with gold over nickel to ensure reliable connectivity and corrosion resistance. Suitable for operating temperatures from -65°C up to 200°C, the connector withstands extreme thermal conditions.
The screw coupling mating type incorporates a quick screw coupling with a self-locking mechanism, ensuring secure and vibration-resistant connections. The termination type is crimp, providing dependable contact attachment consistent with military and industrial standards.
This connector is part of the Souriau 8D Series III and complies with MIL-DTL-38999 Series III specifications, making it well suited for applications in aerospace, marine, offshore, industrial automation, and military sectors that demand high reliability and environmental resistance.
The connector supports up to 5A current per contact providing reliable electrical performance. Shell size 19 ensures compatibility with MIL-DTL-38999 military standards for rugged environments. Constructed with aluminium housing and nickel plating for corrosion resistance and durability.
Contact plating of gold over nickel enhances conductivity and prevents oxidation. The connector has an IP67 rating for protection against dust and water ingress. Suitable for operating temperatures ranging from -65°C to 200°C for extreme conditions.
Screw coupling mating type with self-locking mechanism ensures secure connections. Termination type is crimp for dependable contact attachment. Ideal for applications in aerospace, marine, industrial, and military environments.
Consider browsing the Electronics & Electricals category for similar Mil Spec Circular Connectors and circular connector products at EnvMart.
