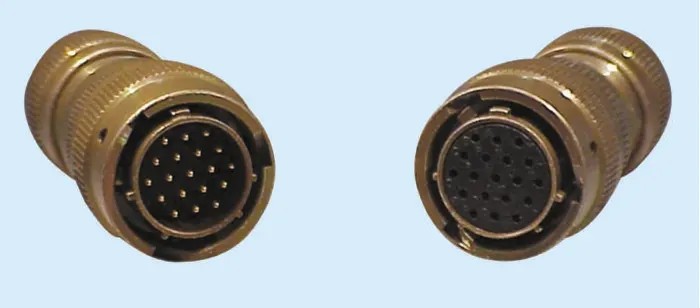

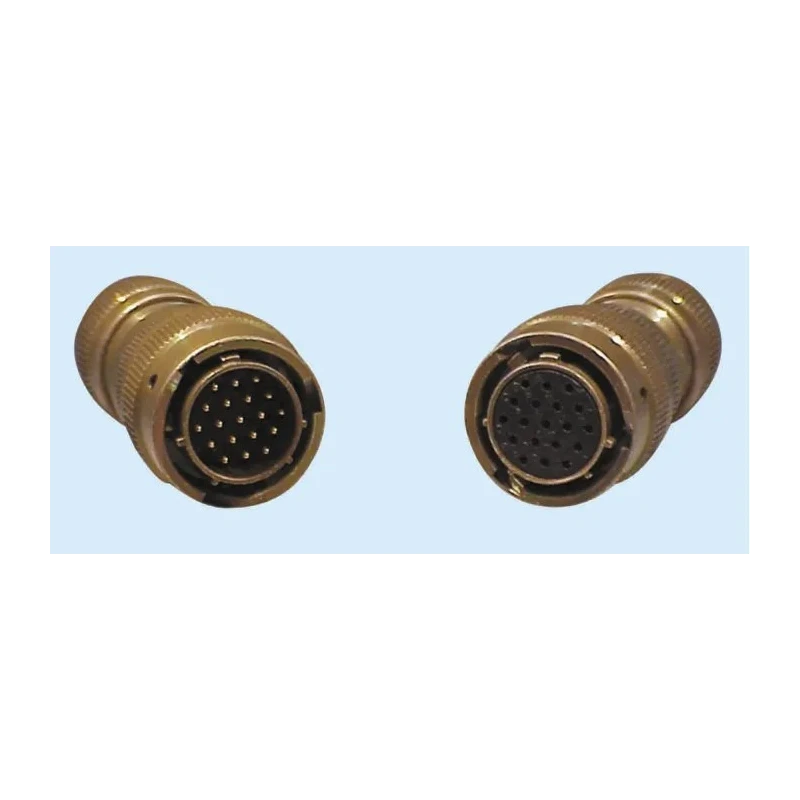

Glenair IPT Copper Alloy Straight 19 Way Cable MIL Spec Circular Connector Male, Male Contacts, Shell IPT06A14-19PPHM11F7

Free Delivery in India | Lowest Global Shipping Charges

Glenair IPT Copper Alloy Straight 19 Way Cable MIL Spec Circular Connector Male, Male Contacts, Shell IPT06A14-19PPHM11F7

Name: Glenair IPT Copper Alloy Straight 19 Way Cable MIL Spec Circular Connector Male, Male Contacts, Shell IPT06A14-19PPHM11F7
Brand: Glenair
SKU: 112388
Price: 240.38 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Glenair Condition New

Specifications

Country of Origin	Italy
Voltage	600, 700V ac
Brand	Glenair
Orientation	Straight
Current	7.5A
Model	IPT06A14-19PPHM11F7
Mount Type	Cable
Housing Material	Aluminium, Stainless Steel
Contact Material	Copper Alloy
Series	IPT
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold over Nickel
Number of Contacts	19
Contact Gender	Male
Connector Gender	Male
Shell Size	14
Military Standard	MIL-DTL-26482
Mating Type	Bayonet
Connector Size	Miniature
Shell Plating	Olive Drab Cadmium

Key Features

The connector supports currents up to 7.5 amperes for robust performance.
Constructed with aluminium and stainless steel housing for durability and corrosion resistance.
Contact plating is gold over nickel, ensuring excellent conductivity and low contact resistance.
The shell is plated with olive drab cadmium, providing military-grade protection.
The connector operates efficiently in temperatures from -55°C to 125°C.
Termination type is solder, suitable for secure cable connections.
It complies with MIL-DTL-26482 military standard for quality and reliability.
Strain relief is included to minimize cable stress during use.

Product Description

Glenair IPT06A14-19PPHM11F7 is a high-quality Mil Spec Circular Connector designed for industrial and military applications requiring robust and reliable cable connections.

This straight connector features 19 male contacts and is suitable for cable mount installations. It utilizes a bayonet mating type for secure and fast connections. The shell size is 14, and the connector size is miniature, making it compact for space-constrained environments.

The housing is constructed from aluminium and stainless steel, plated with olive drab cadmium to meet stringent durability and corrosion resistance requirements. Contacts are made of copper alloy with gold over nickel plating to ensure optimal electrical conductivity and low resistance.

The connector supports operating voltages of 600 and 700 volts AC, with a current rating up to 7.5 amperes, making it suitable for power and signal circuits in demanding conditions. It operates across a wide temperature range of -55°C to 125°C to withstand harsh environments.

Termination is by soldering, ensuring a strong mechanical and electrical connection. The integrated strain relief helps prevent cable damage and extends service life. The connector is compliant with MIL-DTL-26482 military specifications, guaranteeing quality and interoperability with compatible systems.

Its straight orientation and cable mount type enhance versatility in various applications. This component finds typical use in aerospace, defense, industrial machinery, and other sectors requiring rugged circular connectors.

Country of origin is Italy, assuring European manufacturing standards. Explore the Glenair range on EnvMart for other MIL Spec connectors and related components to meet your industrial and defence needs.
