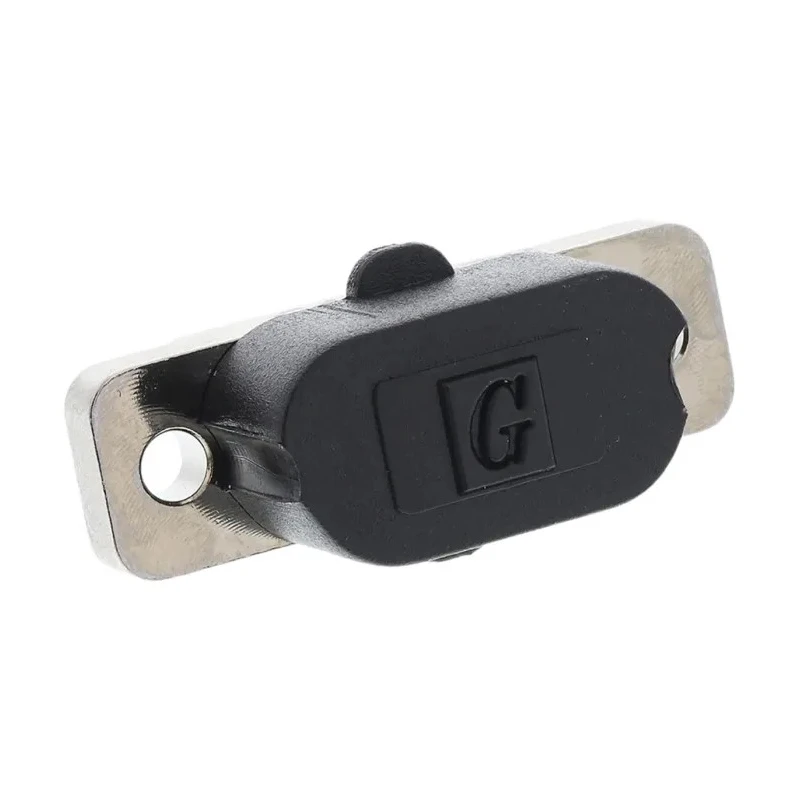

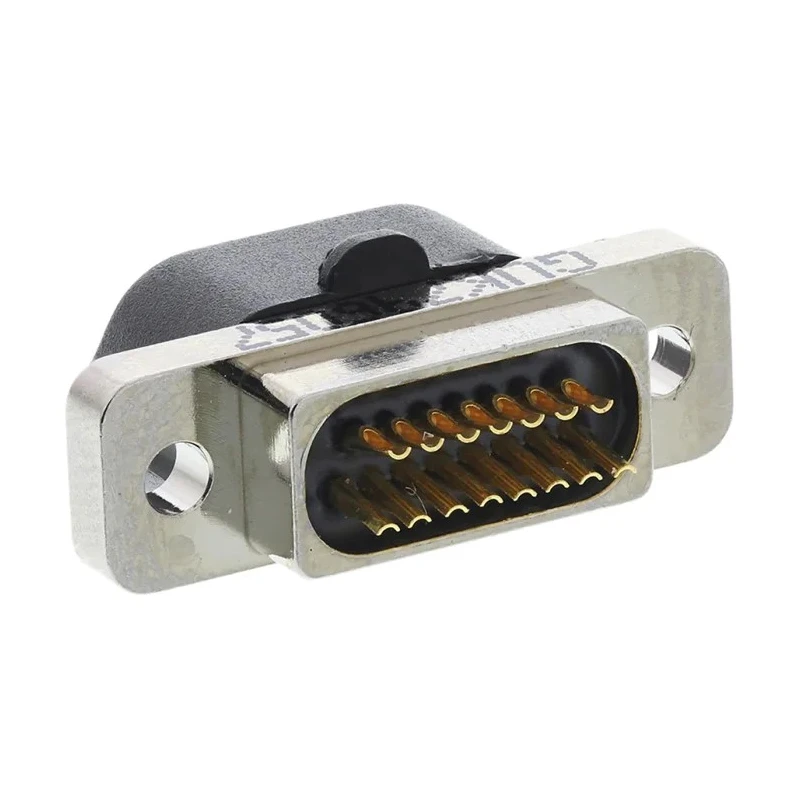

Glenair 15 Way Straight Panel Mount Micro-D D-Sub Connector Female MWDM2L-15SSB

Glenair MWDM2L-15SSB is a 15 Way Straight Panel Mount Micro-D D-Sub Connector Female designed for superior electrical performance and mechanical reliability in demanding environments. Featuring a compact 0.05 inch pitch, this Micro-D connector is engineered for use in commercial electronics, military aerospace, land and sea applications, and industrial telecommunications systems.

The connector housing is made from durable aluminium providing excellent protection, while the contact system employs gold over nickel plating on copper alloy contacts, ensuring high conductivity and resistance to corrosion. It supports a contact current rating of 3A and is capable of operating in temperatures ranging from -55°C to 150°C.

Its solder termination type features splayed solder cups sized for 26 AWG cable and smaller, easing user assembly. The straight orientation and panel mount design facilitate easy integration into various system architectures. The connector complies with military standard Mil-PRF-83513 and British Standard BS9523-F0002, highlighting its suitability for high-performance industrial and defense applications.

Additional features include a high-performance liquid crystal polymer moulded housing with trapezoidal polarisation to prevent mis-mating. This D-Sub Connector delivers exceptional mechanical stability and electrical integrity under extreme vibration and environmental conditions often encountered in industrial or harsh service environments.

Micro-D 0.05 inch contact pitch enabling high density wiring. Aluminium housing ensures durability and lightweight construction. Gold plated copper alloy contacts for excellent conductivity and corrosion resistance. Solder termination type with splayed solder cups facilitating assembly.

Operating temperature range from -55°C to 150°C. Panel mount, straight orientation suitable for system integration. Complies with Mil-PRF-83513 and BS9523-F0002 standards. Designed for commercial, military aerospace, land, sea, and industrial telecommunication use.

This connector is an ideal choice for applications that require robust, reliable electrical interconnection under extreme mechanical and environmental conditions, ensuring long service life and consistent performance.
