Glenair 15 Way Straight Through Hole Micro-D Male D-Sub Connector, Jack Screw Mount, Liquid Crystal MWDM2L-15P-6E5-18B
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 600V |
| Brand | Glenair |
| Orientation | Straight |
| Current | 3A |
| Model | MWDM2L-15P-6E5-18B |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Nickel |
| Series | MWDM |
| Mounting Hardware | Jack Screw |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Micro-D |
| RS PRO 15 Way Straight Panel Mount D-Sub Connector MaleBrand | RS PRO |
| Glenair MWDM 15 Way Straight Panel Mount D-Sub Connector MaleBrand | Glenair |
Key Features
- Features a durable Liquid Crystal Polymer housing for high performance.
- Includes 15 male nickel contacts rated for 3 amps each.
- Connector mounting is through hole with jack screw hardware for secure installation.
- Operates effectively in temperature ranges from -55°C to 150°C.
- Micro-D connector design with a high-density 0.05 inch contact pitch.
- Gold plated TwistPin contacts provide low resistance and reliable connections.
- Rugged aluminum body with nickel plating ensures shock and vibration resistance.
- Suitable for commercial, aerospace, military land, sea, and industrial applications.
Product Description
Glenair MWDM2L-15P-6E5-18B 15 Way Straight Through Hole Micro-D Male D-Sub Connector is designed for reliable electrical interconnections in demanding environments. Featuring a rugged Liquid Crystal Polymer housing and nickel plated aluminum body, it withstands operating temperatures from -55°C to 150°C, ideal for industrial, aerospace, and military applications.
This Micro-D connector offers high performance gold plated TwistPin contacts that provide robust, low resistance connections rated at 3 amps per contact. Its through hole mount type and jack screw hardware ensure secure installation with high mechanical integrity. The connector's compact design incorporates a high-density 0.05 inch pitch for space-saving applications.

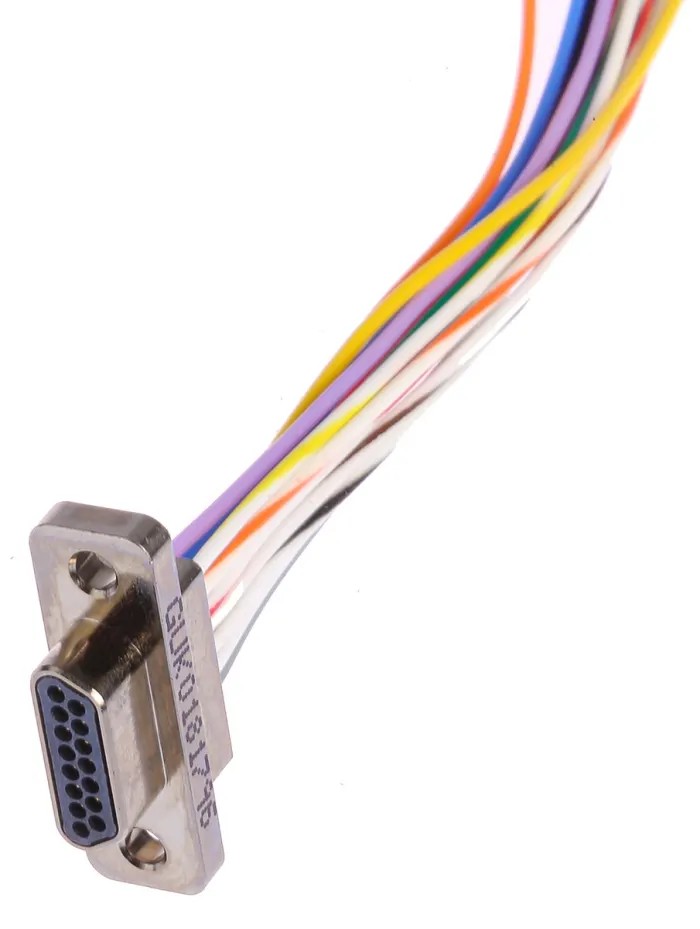

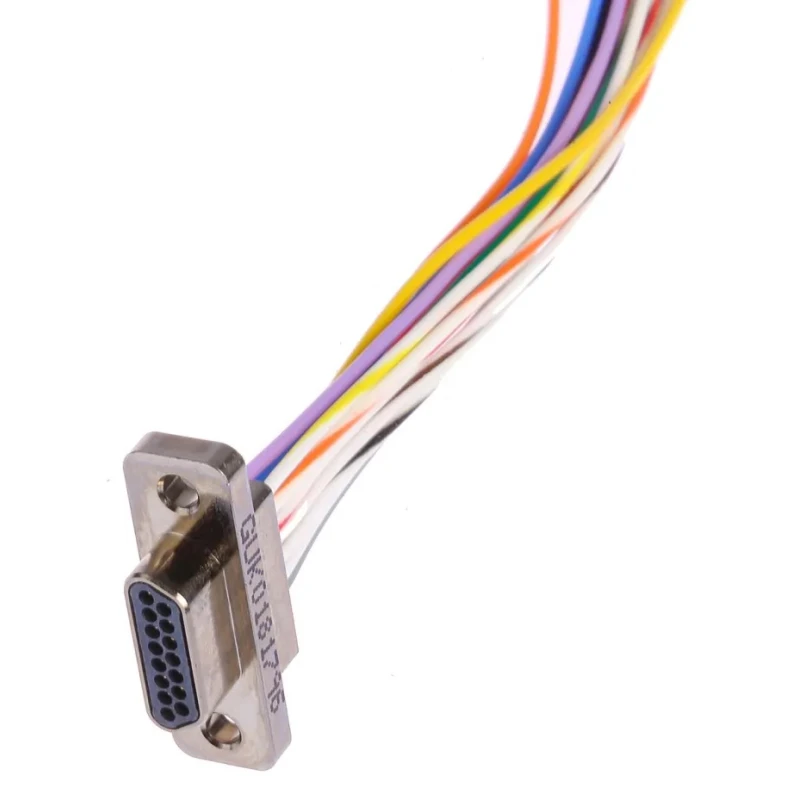

Constructed with nickel contacts and precise engineering, this connector meets the Mil-PRF-83513 and BS9523-F0002 standards, guaranteeing performance in extreme vibration and environmental conditions. The pigtail wire terminations are 26 AWG and 18 inches in length, pre-coloured for easy identification and installation.
Liquid Crystal Polymer housing with nickel plated aluminum body. High density .050 inch pitch Micro-D configuration. Gold plated TwistPin contacts rated at 3 amps. Through hole mount with jack screw hardware. Temperature range -55°C to 150°C.

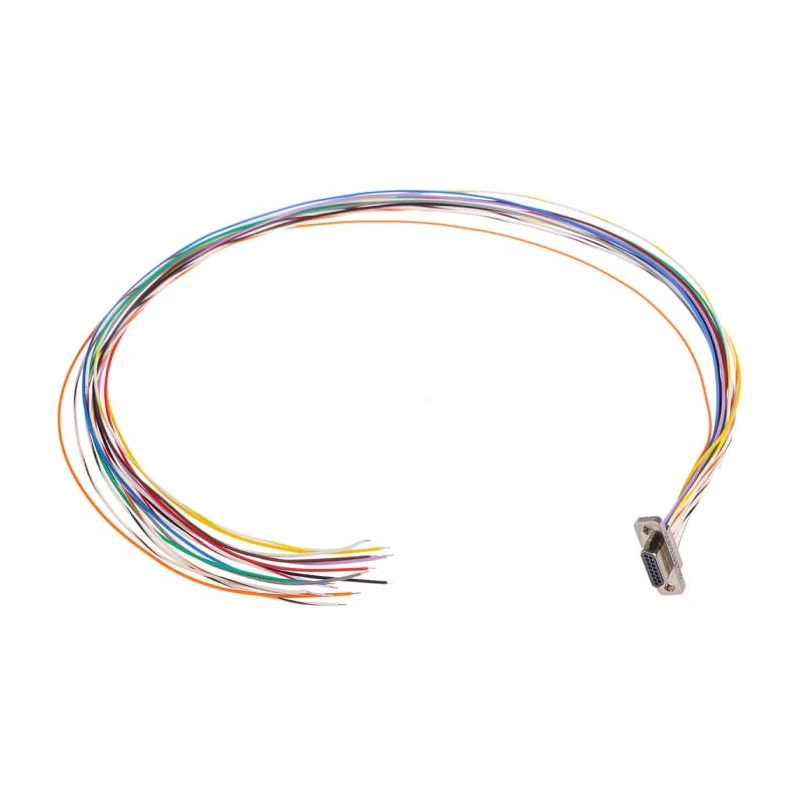

Meets military and industrial standards Mil-PRF-83513 and BS9523-F0002. Colour-coded 450mm pre-wired pigtail for ease of wiring.
This connector is well-suited for electronic systems in commercial, military aerospace, and industrial telecommunications where durability, electrical integrity, and environmental sealing are critical. It provides a reliable connection solution for harsh environments requiring shock and vibration resistance.
Browse more connectors in the Power Connectors category on EnvMart to find compatible accessories and alternative mounting options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 150°C.
Each of the 15 male contacts in this model is rated for 3 amps.
The housing is made of Liquid Crystal Polymer, and the contacts are made of nickel, while the body is aluminum with nickel plating.
This connector features a through hole mount type and uses jack screw hardware for secure installation.
The contact pitch for this Micro-D connector is 0.05 inches.
It meets the Mil-PRF-83513 and BS9523-F0002 standards, ensuring performance in demanding environments.
The connector operates effectively in temperature ranges from -55°C to 150°C.
This connector has a total of 15 male contacts.
The pigtail wire terminations are 450mm (18 inches) in length.
It is suitable for commercial, aerospace, military land, sea, and industrial applications.
The orientation of this connector is straight.
This connector supports a voltage rating of 600V.
