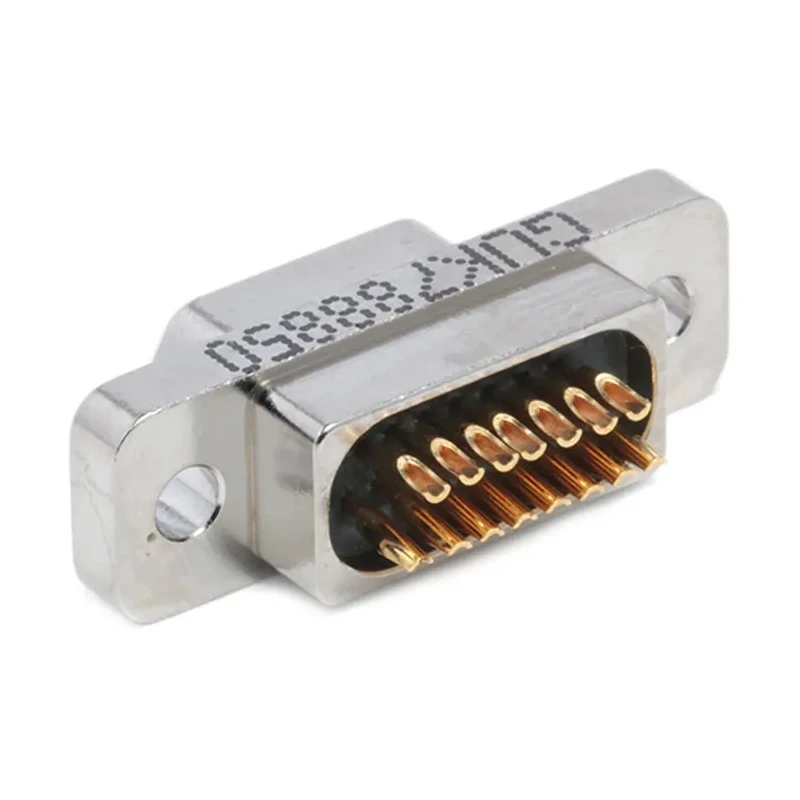

Glenair 15 Way Straight Panel Mount Micro-D Aluminium Housing D-Sub Connector Male MWDM2L-15PSB

Glenair MWDM2L-15PSB is a 15 Way Straight Panel Mount D-Sub Connector Male designed with a Micro-D connector type and high-density 0.05 inch contact pitch. It features an aluminium housing that provides strength and lightweight properties, combined with a gold over nickel plating on beryllium copper alloy contacts for enhanced conductivity and corrosion resistance. The connector supports a 3 Amp current rating with a temperature operating range from -55°C to 150°C, suitable for harsh environments.

This connector type is engineered for solder termination and panel mount applications, offering straight orientation to facilitate installation. The Micro-D connector series is widely used in demanding commercial, aerospace, military land and sea applications, industrial equipment, and telecommunication systems that require robust mechanical and electrical performance under extreme vibration and environmental conditions.

The MWDM2L-15PSB connector complies with Mil-PRF-83513 and BS9523-F0002 standards, ensuring compatibility and reliability in critical system assemblies. Its solder cups accommodate 26 AWG cable and smaller, designed with splayed solder cup rows that aid user assembly for precise and secure connections.

Manufactured in the United Kingdom, this Glenair connector maintains the highest quality standards required in various sectors from industrial manufacturing to sophisticated aerospace equipment.

Constructed with high-quality aluminium housing for durability and lightweight design. Features 15 contacts for reliable electrical connections. Gold over nickel plating on beryllium copper alloy contacts ensures excellent conductivity and corrosion resistance.

Designed for panel mount installation with a straight orientation for ease of use. Operating temperature range from -55°C to 150°C for extreme environments. Termination type is solder, suitable for secure cable connections.

Micro-D connector type with 0.05 inch contact pitch for high density. Compliant with Mil-PRF-83513 and BS9523-F0002 standards, supporting military and industrial applications. Ideal for commercial, aerospace, military land and sea, industrial, and telecommunication systems requiring mechanical and electrical integrity.

This product is part of EnvMart's extensive range of D-Sub Connectors, ideal for use in electronic components, power connectors, and computing connectors sectors. Explore our catalog to find compatible connectors and accessories for your industrial and commercial requirements.
