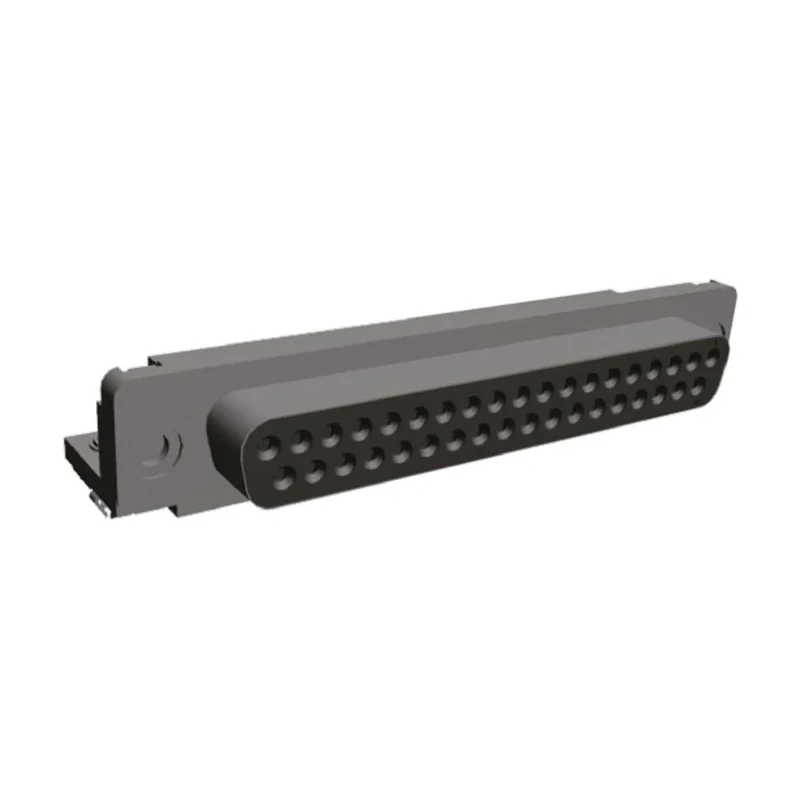

TE Connectivity AMPLIMITE HD-20 High Density 37 Way Right Angle D-Sub Connector 2.75 mm Pitch Through Hole Mount 5747847-4

TE Connectivity 5747847-4 AMPLIMITE HD-20 series is a high density 37 way D-Sub connector featuring a right angle orientation for through hole PCB mounting. The connector has a 2.75 mm pitch and utilizes 4 to 40 UNC threaded inserts for mechanical fastening, offering robust attachment to printed circuit boards.

The housing is molded from a black 94V-0 rated thermoplastic material, providing excellent flame resistance and durability. Contacts inside the connector are made of phosphor bronze with gold plating over nickel, ensuring superior electrical conductivity and corrosion resistance. The connector is designed with female contacts and connectors, intended for mating with the corresponding male D-Sub Connectors.

Operating temperature range is from -55°C minimum to 105°C maximum, allowing use in demanding environments. The product series complies with RoHS environmental regulations, supporting lead-free and hazardous substance restrictions.

This AMPLIMITE HD-20 connector series is ideal for use in industrial, laboratory, communication, and other electronic equipment requiring secure and reliable multi-pin connections. Its modular footprint and rugged construction make it suitable for high-performance PCB applications.

Additional features include tin-plated steel front shells with clear chromate-plated zinc threaded inserts and tin-plated brass eyelets, enhancing mechanical strength and durability. The recommended printed circuit board thickness varies by configuration, typically 1.58 mm for connectors with boardlocks.

This connector features a right angle orientation designed for PCB mounting. Housing is made from durable 94V-0 thermoplastic for high reliability. Contacts are phosphor bronze plated with gold over nickel for optimal conductivity.

Threaded inserts use 4 to 40 UNC hardware for secure mounting. Operates reliably within a temperature range of -55°C to 105°C. Connector gender and contact gender are female, suitable for mating with male counterparts. Complies with RoHS standards ensuring environmental compliance.

Designed for industrial, electronic assembly, and communication equipment applications. Explore the complete range of TE Connectivity connectors on EnvMart for compatible and complementary products.
