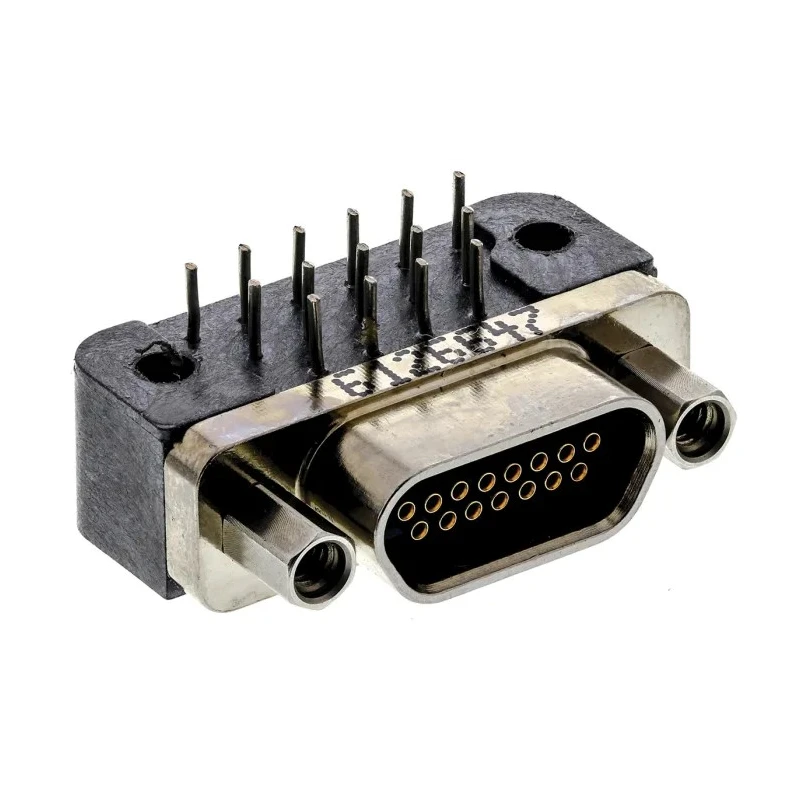

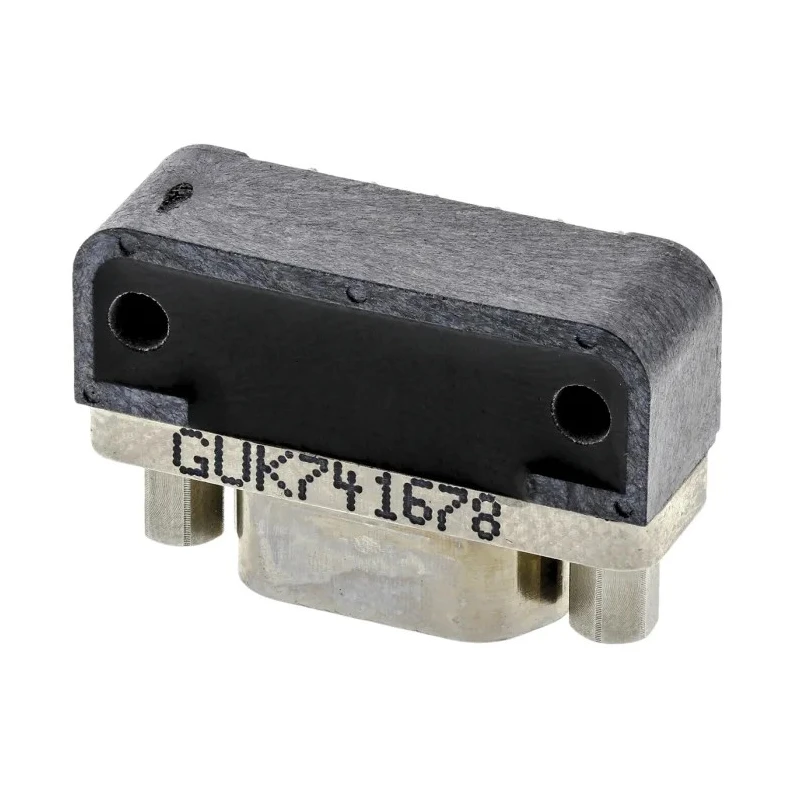

Glenair 15 Way Right Angle D-Sub Connector Female 2.54 mm Pitch Through Hole MWDM2L-15SCBRP-.110

Glenair MWDM2L-15SCBRP-.110 is a 15 Way Right Angle D-Sub Connector Female featuring a 2.54 mm pitch with through-hole mounting, designed for high-reliability electronic systems. Constructed with an aluminium alloy housing, this connector ensures mechanical strength and light weight while maintaining durability in harsh environments.

It employs a high-performance gold over nickel plating on copper alloy contacts to provide excellent electrical conductivity and reduce corrosion risks. The connector supports a current rating of 3 Amps and is terminated using a solder type method, ensuring secure electrical connections.

Rated for operation between -55°C and 150°C, this connector performs reliably under extreme thermal conditions. It meets MIL-C-83513 military standards, making it suitable for aerospace, military land and sea, industrial, and telecommunication applications that demand exceptional mechanical and electrical integrity.

The right angle, horizontal narrow profile design allows efficient use of PCB space, with a 0.100 inch x 0.100 inch termination grid and 0.02 inch diameter copper termination tails. Jackposts are supplied installed, facilitating the assembly process. Its Micro-D format with 0.05 inch pitch complements compact, high-density system designs.

Manufactured in the United Kingdom, this connector also features a protective 90° metal shell ensuring durability under vibration and environmental stress conditions. The connector's high-performance liquid crystal polymer molded housing incorporates trapezoidal polarization for correct mating.

Constructed with aluminium alloy housing for robust durability. Gold over nickel plated copper alloy contacts boost conductivity and corrosion resistance. 3 Amp contact rating suitable for demanding electrical applications.

Right angle orientation and horizontal narrow profile optimize PCB layout. Meets MIL-C-83513 standard for aerospace and military-grade performance. Micro-D size with 2.54 mm pitch for high-density electronic systems. Operating temperature range from -55°C to 150°C.

Through-hole solder termination ensures secure connections. Includes jackposts installed for easy assembly.

This Glenair MWDM series D-Sub Connector is ideal for industrial, military, aerospace, and telecommunications electronic systems requiring dependable and high-quality interconnect solutions. For more precision connectors and advanced electronic components, explore our Electronics & Electricals categories at EnvMart.
