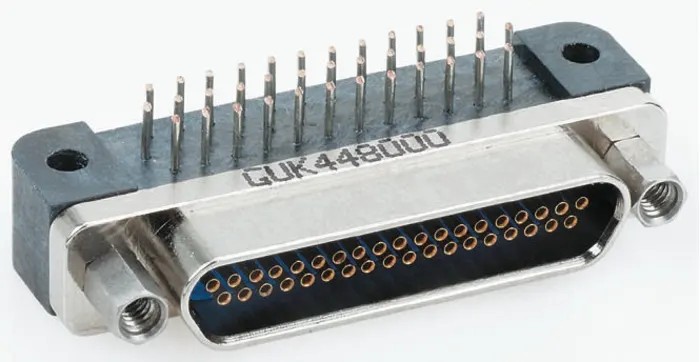

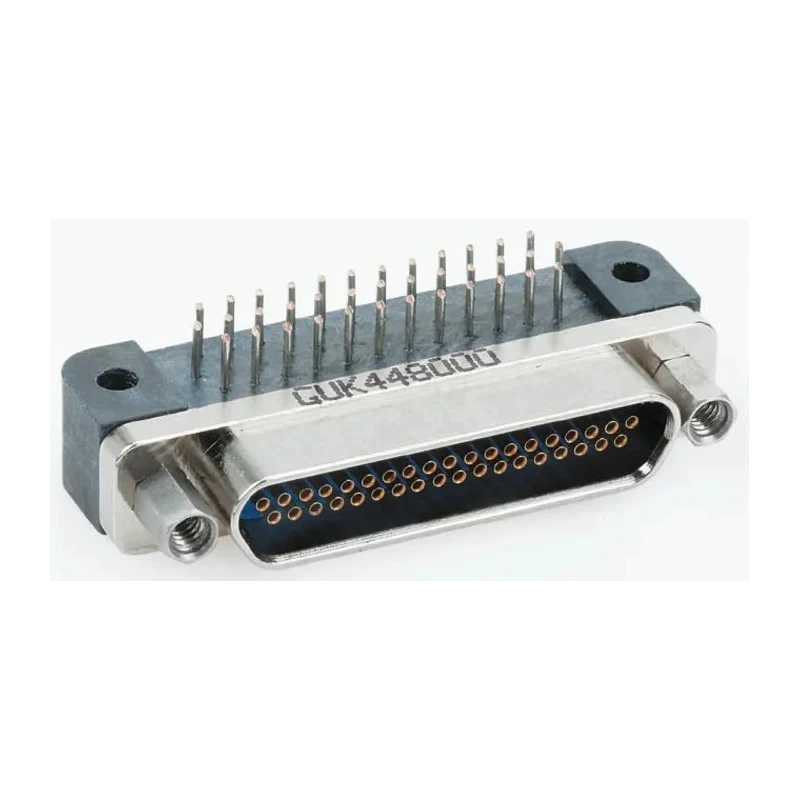

Glenair 25 Way Right Angle 1.91 mm Pitch Through Hole Micro-D Male D-Sub Connector GMR7590

Glenair GMR7590 is a 25 Way Right Angle Micro-D Male D-Sub Connector designed for demanding electronic applications requiring high density connections and robust performance. This connector features a 1.91 mm pitch with a through hole mount type, suitable for integration on printed circuit boards requiring space efficiency and reliable electrical contact.

The connector utilizes a liquid crystal polymer housing that offers superior mechanical stability and a copper alloy contact material plated with gold over nickel to provide excellent conductivity and corrosion resistance. It supports a continuous current of 3 amp and withstands operating temperatures ranging from -55°C to 150°C, making it capable of performing well under harsh industrial conditions.

The right angle orientation combined with a metal shell housing with trapezoidal polarization ensures secure mating and mechanical protection. The 0.075 inch termination grid reduces PCB footprint by approximately 23-43%, thus enabling compact PCB layouts. A high-performance gold plated twist pin contact system guarantees low signal distortion and endurance over multiple mating cycles.

Additional features include interfacial sealing gaskets fitted as standard to prevent ingress of contaminants and nickel plated, precision machined shell housing. Jackposts are installed for enhanced mechanical retention during assembly.

Rated for 3 amp current capacity ensuring robust electrical performance. Constructed from liquid crystal polymer housing and copper alloy contacts plated with gold over nickel for durability. Operates reliably in temperatures from -55°C to 150°C.

Features a 0.075 inch termination grid to reduce PCB space by up to 43%. Right angle orientation and through hole mounting facilitate versatile PCB assembly. Includes metal shell with trapezoidal polarization for secure connections.

Gold plated twist pin contact system provides high performance and corrosion resistance. Interfacial sealing gaskets are fitted as standard to enhance environmental protection. Designed and manufactured in the United Kingdom assuring quality engineering.

This connector is ideal for applications in industrial, aerospace, military, and telecommunications electronics where compact, high reliability connections are essential. It meets stringent build quality and performance criteria required in harsh environments.
