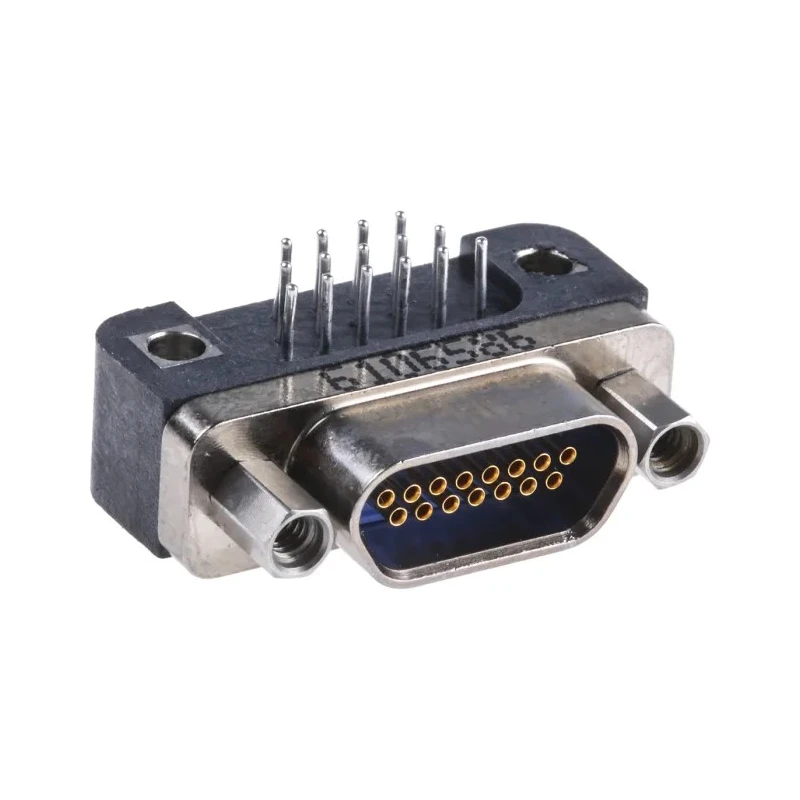

Glenair 15 Way Right Angle 1.91 mm Pitch Through Hole D-Sub Connector Female GMR7590
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Glenair |
| Orientation | Right Angle |
| Current | 3A |
| Model | GMR7590 |
| Mount Type | Through Hole |
| Housing Material | Stainless Steel, Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | GMR7590 |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 1.91mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | Micro-D |
Key Features
- Features a gold over nickel plated copper alloy contact system rated at 3A.
- Constructed with stainless steel and aluminium alloy housing materials for durability.
- Operates reliably in temperatures from -55°C up to 150°C.
- Mounts using a through hole method with vertical and horizontal mounting options.
- Includes interfacial sealing gaskets and nickel plated, precision machined shell housing.
- Complies with RoHS standards and has a compact 1.91 mm pitch for space-saving designs.
- Connector is female with right angle orientation and 15 contacts.
- Ideal for industrial, electronic, and communication equipment applications.
Product Description
Glenair GMR7590 is a 15 Way Right Angle 1.91 mm Pitch Through Hole D-Sub Connector Female designed for dense circuit configurations requiring robust and reliable connections. This connector features a high-performance gold plated twist pin contact system rated at 3 amps, ensuring dependable signal integrity in demanding environments.
The housing is manufactured from stainless steel and aluminium alloy, providing mechanical strength and resistance to corrosion. Designed to operate within an extensive temperature range of -55°C to 150°C, it suits harsh industrial, aerospace, and military applications.
Mounting is achieved using through hole techniques with options for both vertical and horizontal placement. The connector incorporates interfacial sealing gaskets as standard to ensure environmental sealing and mechanical robustness in PCB assemblies.
The compact 1.91 mm pitch reduces footprint and weight by 12-20%, enabling higher density designs in constrained spaces. Nickel plated precision machined shell housing offers trapezoidal polarization to prevent mismating. Jackposts are supplied installed to facilitate secure PCB attachments.
This product is RoHS compliant and supports applications in industrial electronics, communications equipment, aerospace systems, and other sectors requiring high reliability D-Sub connectors.
Gold over nickel copper alloy contacts for high performance. Stainless steel and aluminium alloy housing for durability. Operating temperature ranges from -55°C to 150°C. Right angle orientation supports versatile PCB mounting.
Through hole mount type for secure connection. Compact 1.91 mm pitch for high-density PCB applications. Interfacial sealing gaskets fitted as standard. Nickel plated, precision machined shell housing with trapezoidal polarization.
Set includes a 15-contact female right angle D-Sub connector with all standard features. Explore a wide selection of electrical connectors and D-Sub Connectors at EnvMart for all your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 3A.
It operates reliably within a temperature range of -55°C to 150°C.
The housing is constructed from stainless steel and aluminium alloy, providing mechanical strength and resistance to corrosion.
This model features 15 contacts.
It utilizes a through hole mounting method, allowing for both vertical and horizontal placement options.
The connector has a compact pitch size of 1.91 mm, which helps reduce footprint and weight in designs.
Yes, it includes interfacial sealing gaskets as standard to ensure environmental sealing.
The contacts are plated with gold over nickel for enhanced performance.
This connector has a right angle orientation, which supports versatile PCB mounting.
Yes, the GMR7590 is RoHS compliant, making it suitable for environmentally conscious applications.
It uses a solder termination type for secure connections.
This model is ideal for applications in industrial electronics, communications equipment, and aerospace systems.
