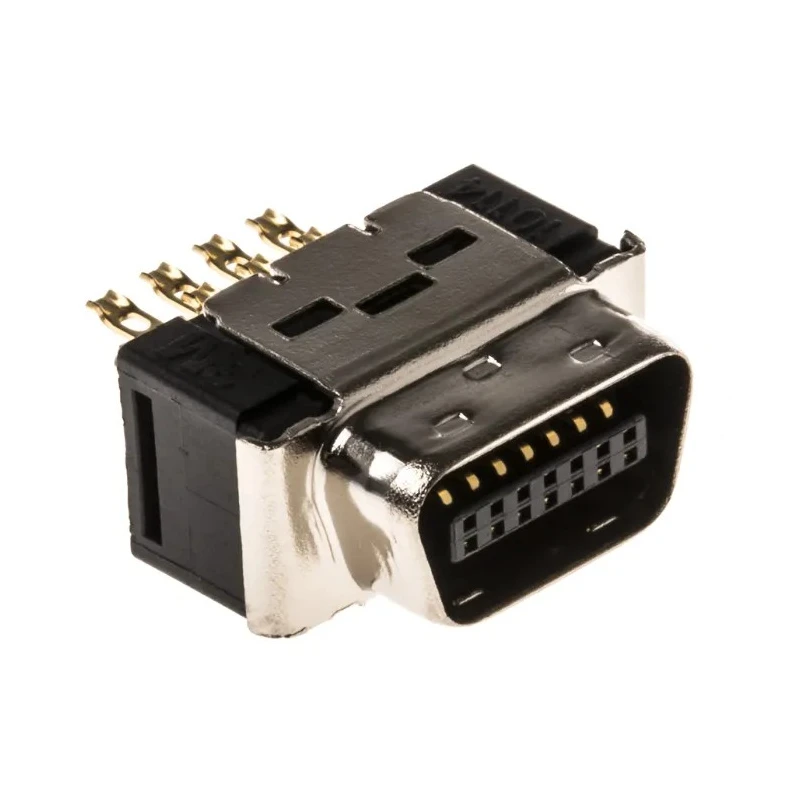

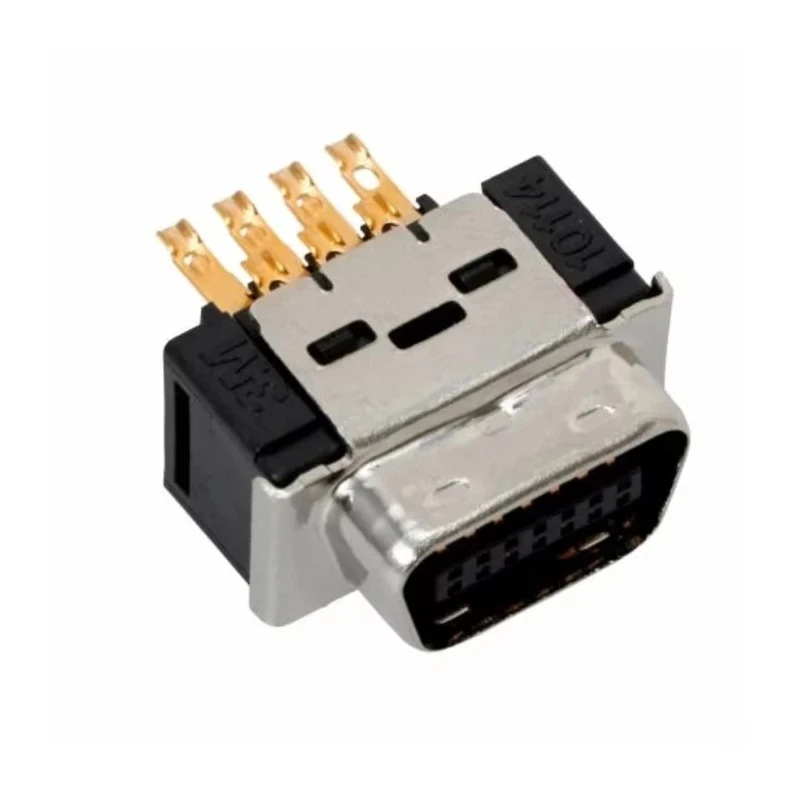

3M D-Sub Connector 14 Way Straight 2.54 mm Pitch Cable Mount Male Contact 1A Current Steel Housing 10114-3000PE

3M 10114-3000PE is a 14 way straight D-Sub Connector designed as a cable mount male type connector with a 2.54 mm pitch. It is a high-quality connector intended for electronic components and power connection applications, engineered to deliver reliable signal transmission in industrial, laboratory, and automated machinery settings.

The connector carries a rating of 1 ampere current and supports wire gauges ranging from 24 AWG to 30 AWG. The contact materials consist of copper alloy with gold plating over nickel to provide excellent corrosion resistance and superior electrical conductivity. The robust steel housing protects the internal components and complies with UL 94V-0 flame retardant standards.

Its operating temperature range from -55°C to +105°C ensures it performs well under harsh environmental conditions often found in industrial networks and R&D laboratories. The solder cup termination type facilitates manual soldering, enabling easy wire attachment without requiring specialized tools. The connector's straight orientation and 14-pin configuration make it suitable for interfacing standard cables to computers, PCBs, or other electronic devices.

This connector series features reliable wiper-on-wiper contacts that maintain excellent electrical connection integrity even after multiple insertion cycles. Its glass-reinforced insulation minimizes risks associated with electrical shocks, making it safe and durable for demanding applications.

Ideal use cases include industrial computer networks, automated machinery, and research laboratories requiring precision and dependability in signal connection hardware. The connector supports a current rating of 1A, suitable for low-voltage devices.

Gold over nickel plating on copper alloy contacts enhances conductivity and corrosion resistance. Steel housing with flame-retardant UL 94V-0 approved materials ensures safety and durability. Wide operating temperature range from -55°C to 105°C for varied environments.

Solder cup termination style provides secure and easy cable connections. Compatible with multiple wire gauges (24 AWG to 30 AWG) for versatile installation. Straight orientation with 14 pins supports standard cable mating.

Wiper-on-wiper contacts for robust, repeated mating reliability. Explore 3M connectors on EnvMart for high-quality, certified, and industry-trusted connector solutions.
