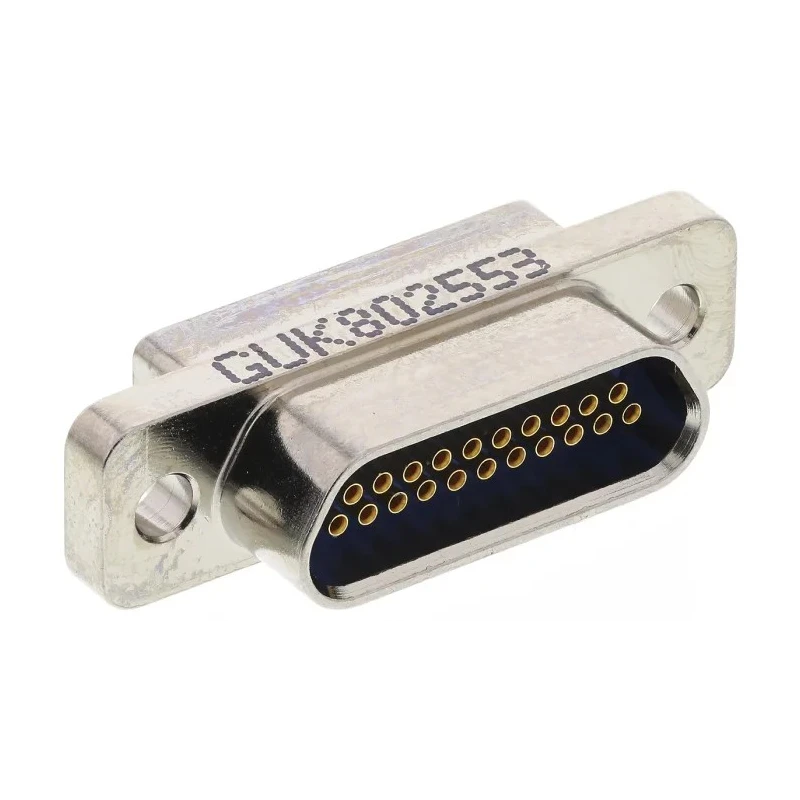

Glenair 21 Way Straight Panel Mount Micro-D D-Sub Connector Female MWDM2L-21SSB

The Glenair MWDM2L-21SSB is a 21 Way Straight Panel Mount Micro-D type female D-Sub Connector designed for exceptional mechanical and electrical integrity. Built with an aluminium housing and high-performance gold-plated copper alloy contacts, it provides reliable connection in extreme vibration and environmental conditions. This connector operates efficiently across a wide temperature range from -55°C to 150°C, making it suitable for demanding industrial, commercial, aerospace, military land and sea, and telecommunication system applications.

The connector features a high density 0.05 inch pitch contact spacing and a 3 amp contact current rating. Its solder termination and panel mount design allow for secure installation and stable signal transmission. The Micro-D D-Sub Connector series MWDM incorporates superior materials and design standards, including compliance with Mil-PRF-83513 and BS9523-F0002.

The metal shell is unterminated with solder cups sized to accommodate 26 AWG cable or smaller, arranged in splayed rows to ease assembly. The gold over nickel plating on the copper alloy contacts enhances corrosion resistance and electrical performance. The robust liquid crystal polymer molded connector housing features trapezoidal polarization to ensure correct alignment and connection integrity.

21 contacts providing stable electrical connection. 3 amp current rating suitable for power and signal applications. Aluminium housing offering mechanical strength and durability. Solder termination for reliable and permanent cable attachment.

Operates from -55°C to 150°C for harsh environments. Gold over nickel plated copper alloy contacts for corrosion resistance. Meets Mil-PRF-83513 and BS9523-F0002 military and aerospace standards. Panel mount with straight orientation for easy integration into equipment panels.

Micro-D form factor with 0.05 inch pitch contact spacing for high density applications. Manufactured in the United Kingdom with high quality control.

This connector is ideal for use in industrial automation, aerospace instrumentation, communication equipment, military systems, and harsh environment electronic assemblies. It delivers dependable performance where durability and signal integrity are critical.
