3M MDR 102 36 Way Right Angle 1.27 mm Pitch Through Hole D-Sub Connector Female 10236-55G3PL

Free Delivery in India | Lowest Global Shipping Charges

3M MDR 102 36 Way Right Angle 1.27 mm Pitch Through Hole D-Sub Connector Female 10236-55G3PL



Category D-Sub Connector Brand 3M Condition New

Specifications

Country of Origin	Japan
Brand	3M
Orientation	Right Angle
Current	1A
Model	10236-55G3PL
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Copper Alloy
Series	MDR 102
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	1.27mm
Standards/Approvals	UL 94V-0, RoHS
Contact Plating	Gold over Nickel
Number of Contacts	36
Contact Gender	Female
Connector Gender	Female
D-Sub Shell Size	D
102xx-52xx	Zinc Alloy body
102xx-55xx	PCT Insulator with Steel Nickel plated Shroud
102xx-520x	M2.6 Panel and Screw lock
102xx-521x	M2.5 Panel and Screw lock
102xx-55Bx	M2.5 Panel with Ground lock type 1 (3.8 mm)
102xx-55Fx	M2.6 Panel with Ground lock type 3 (2.3 mm)
102xx-55Gx	M2.5 Panel with Ground lock type 3 (2.3 mm)
102xx-55Hx	#4-40 Panel with Ground lock type 3 (2.3 mm)
102xx-xxx2	3.9 mm long solder Tail
102xx-xxx3	2.8 mm long solder Tail

Key Features

Features 36 contacts for reliable signal connections.
Right angle orientation allows efficient PCB layout and panel mounting.
Constructed with fibreglass reinforced polyethylene terephthalate housing for durability.
Gold over nickel plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
Supports operating temperatures from -55°C to 105°C for versatile environments.

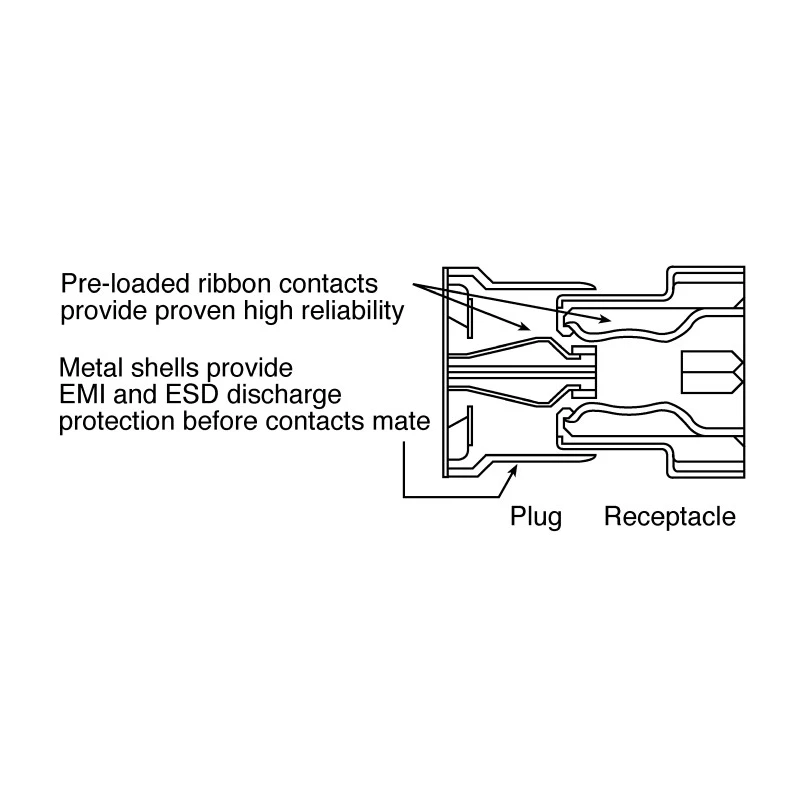

Mates with cable mounting solder plugs and offers EMI/ESD protection.
Compliance with UL 94V-0 and RoHS for safety and environmental standards.
Compact 1.27 mm pitch suitable for high-density electronic applications.

Product Description

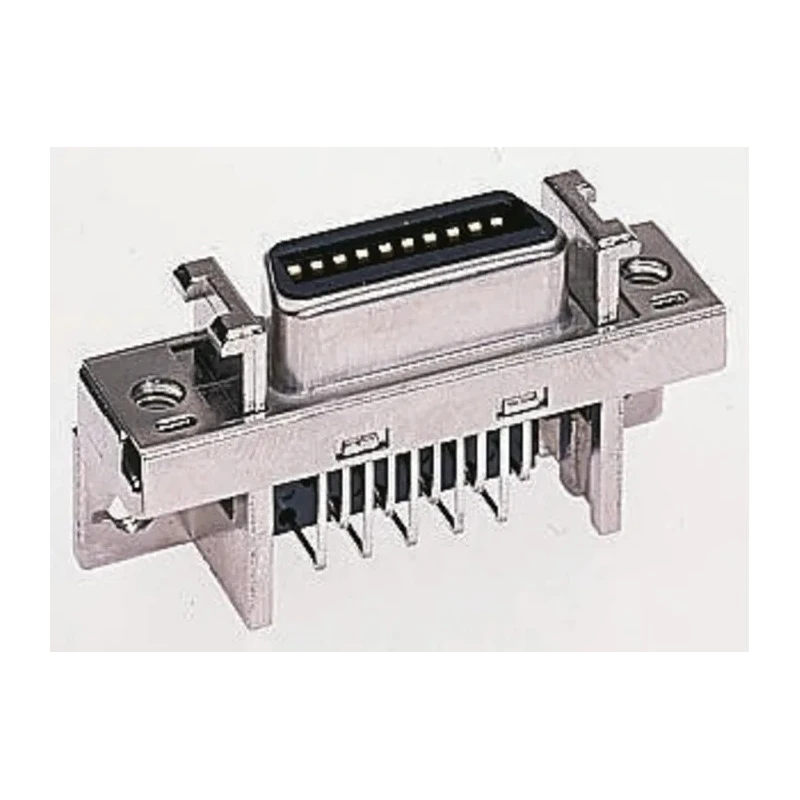

3M 10236-55G3PL MDR 102 36 Way Right Angle 1.27 mm Pitch Through Hole D-Sub Connector Female is a high-quality Mini Delta Ribbon (MDR) boardmount connector designed for robust and reliable electronic applications.

This right angle connector features 36 contacts arranged with a 1.27 mm pitch, optimized for high-density I/O requirements on PCBs. Its through-hole solder termination type ensures secure mounting and long-term durability.

The housing is made from fibreglass reinforced polyethylene terephthalate, providing excellent mechanical strength and resistance to environmental stress, with contact pins made of copper alloy plated with gold over nickel for superior electrical performance and corrosion resistance. Its operating temperature range from -55°C to 105°C allows usage in demanding industrial and commercial environments.

This connector series includes EMI and ESD protection, making it suitable for use in industrial computing, medical equipment, and heavy-duty computing systems. It mates easily with compatible cable mounting solder plugs and retains stability through panel mounting with screw or ground locks.

Features 36 gold-plated contacts for reliable connectivity. Right angle orientation supports flexible PCB layouts. Fibreglass reinforced housing ensures durability. Wide operating temperature range from -55°C to 105°C. Compliance with UL 94V-0 flame retardant and RoHS standards.

Offers excellent EMI/ESD protection for sensitive electronic environments. Manufactured in Japan for assured quality. Suitable for industrial, laboratory, electronic, and computing applications.

The product is trusted in sectors requiring high-density and durable mini delta ribbon connectors including manufacturing, electronics assembly, and testing facilities. 3M's MDR 102 series are known for their long operational life and secure mechanical interface.
