RS PRO Panel Mount Red LED Pilot Light LEDtec 22 mm Cutout 24 V AC/DC IP65 Round 909-2512

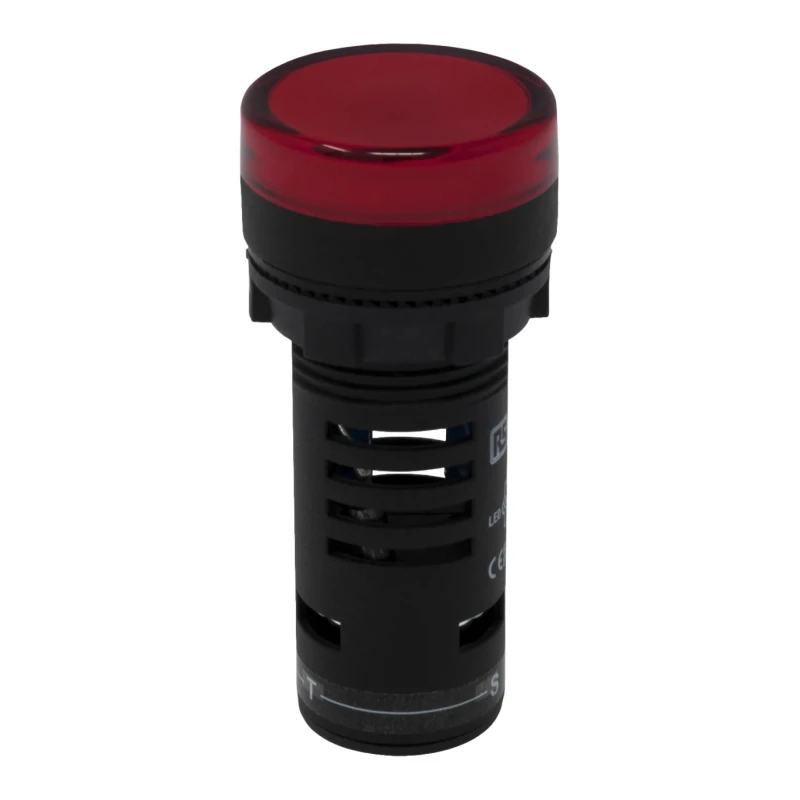

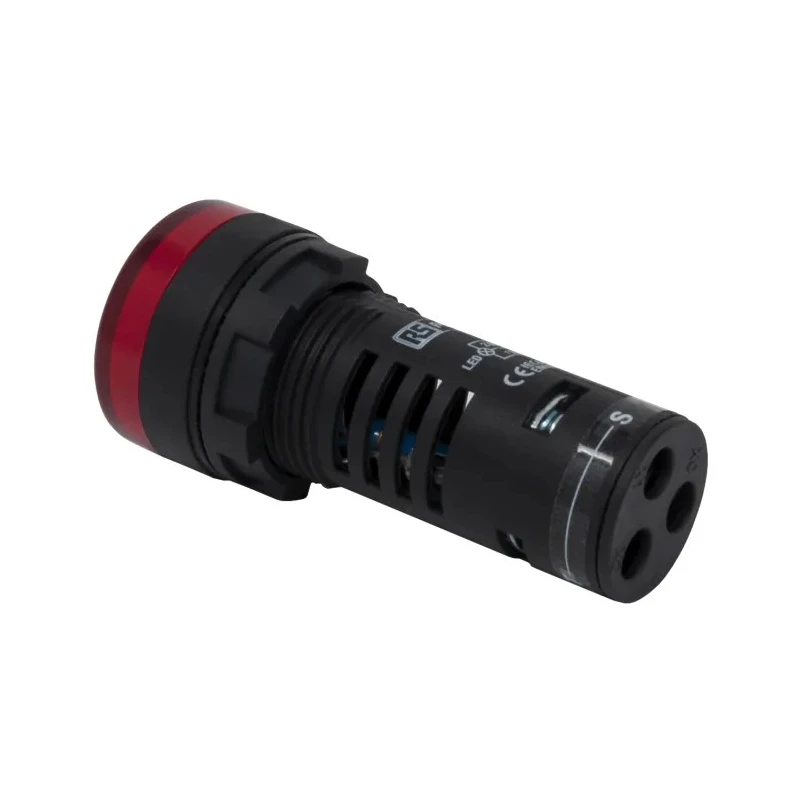

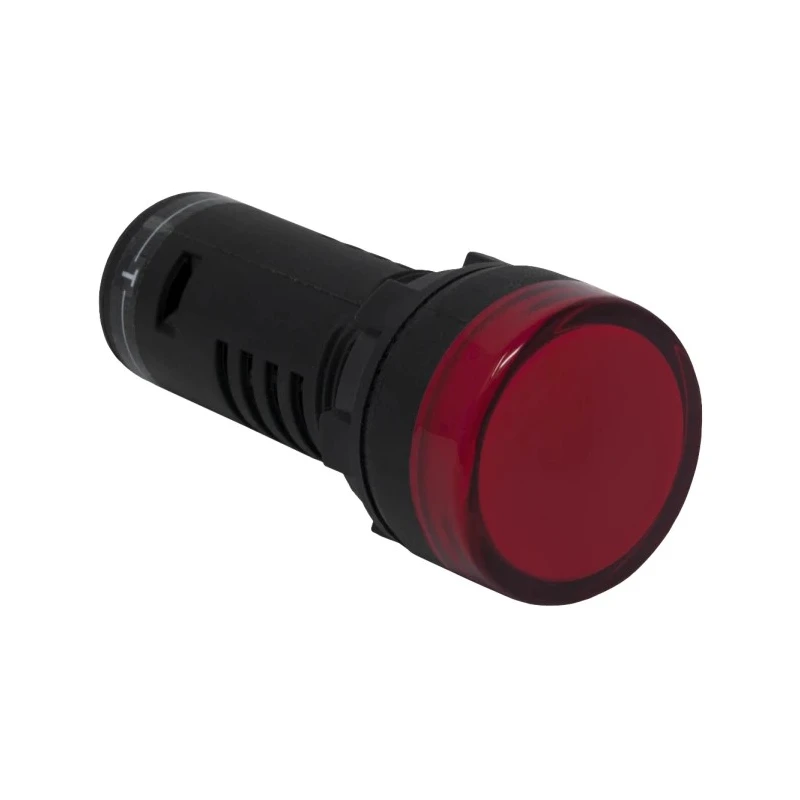

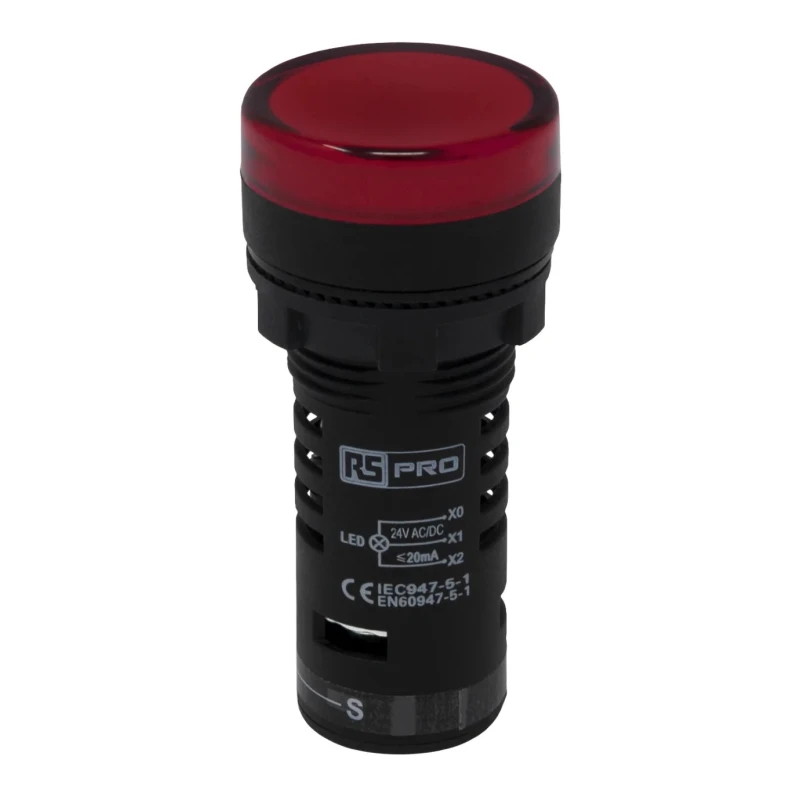

RS PRO 909-2512 Panel Mount Red LED Pilot Light is designed for precise circuit indication and diagnostic testing in electrical and automation systems. This LEDtec series pilot light features a 22 mm panel cutout and a round profile, engineered to fit standard mounting locations efficiently. Operating at 24 V AC or DC with a low current of 20 mA, it ensures energy-efficient performance without compromising visibility.

The product includes a built-in test circuit, allowing detection of faulty conditions without removing the light from the panel, making troubleshooting faster and safer. It is IP65 rated, providing excellent protection against dust ingress and low-pressure water jets, making it suitable for demanding industrial, laboratory, and commercial environments.

Manufactured with a polycarbonate body and bezel, this pilot light offers durability and resistance against mechanical impacts and environmental factors. The advanced multi-chip LED lamp delivers a bright, stable red indication light with luminance exceeding 60 cd/m³, providing clear status visibility even in bright ambient conditions.

Installation is simplified with panel mount design and captive screw-clamp terminals, eliminating the need for soldering. The pilot light conforms to UL and CE standards ensuring quality and safety compliance. It operates reliably across a wide temperature range, from -25°C to 55°C, supporting operation in varied industrial settings including instrumentation panels, kitchen appliances, and aerospace applications.

Complete with test circuit for fault detection without dismantling. IP65 rated for dust-tight and low-pressure water jet protection. Round design with 22 mm cutout suitable for most panel mounting. Operates reliably at 24 V AC/DC with 20 mA current rating.

Constructed of durable polycarbonate body and bezel materials. Multi-chip LED technology delivers strong glow and steady red color. Long lifespan of up to 30,000 hours provides dependable operation. Screw-clamp terminals allow tool-free wire connection.

Wide operating temperature range from -25°C to 55°C. Conforms to UL and CE standards for safety and performance.

This RS PRO pilot light is suited for industrial control panels, electrical equipment status indication, automation interfaces, and maintenance diagnostics. It is a trusted choice for engineers requiring robust, high-performance pilot light solutions.
