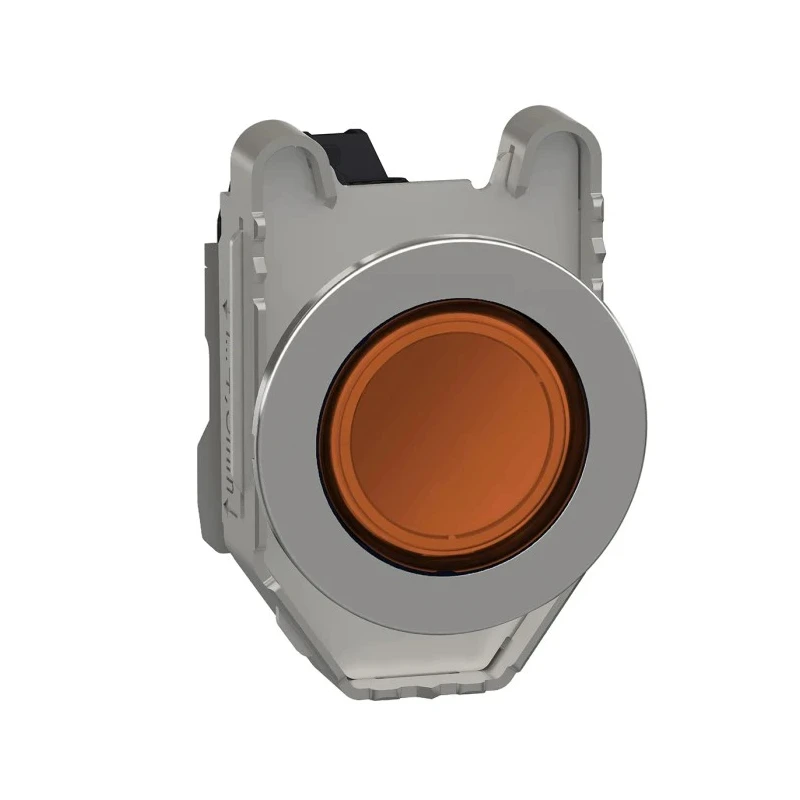

Schneider Electric Flush Orange LED Pilot Light Harmony Series 30 mm Cutout 100-132V AC Metal Bezel XB4FVG5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100, 132V ac |
| Brand | Schneider Electric |
| Body Material | Metal |
| Model | XB4FVG5 |
| IP Rating | IP67, IP66, IP69 |
| Lamp Type | LED |
| Mount Type | Flush |
| Current Rating | 14mA |
| Series | Harmony |
| Terminal type | Screw |
| Standards/Approvals | CSA, CE, UL |
| Better World Claim | Repairable by the End User |
| Cutout Diameter | 30mm |
| Pilot Light Colour | Orange |
| Pilot Light Shape | Round |
| Bezel Material | Metal |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| Ideal in extreme environments | food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructure |
Key Features
- The pilot light features a round shape with an orange lens and uses efficient LED lamp technology.
- It has a robust metal bezel and body suitable for harsh industrial environments.
- The device is rated IP66, IP67, and IP69 for protection against dust and water ingress.
- Secure installation is ensured via screw clamp terminal connections.
- Its compact dimensions of 36.6 mm height and width with 30.5 mm mounting diameter facilitate easy panel integration.
- The pilot light supports a current rating of 14 mA ensuring low power consumption.
- Designed for demanding applications with high vibration resistance and a wide operating temperature range from -40°C to 70°C.
- Compliances include CSA, CE, UL certifications with marine and industrial approvals.
Product Description
Schneider Electric XB4FVG5 flush orange LED pilot light from the Harmony series is engineered for reliable performance in industrial and demanding environments. It features a flush mount design with a 30 mm cutout diameter and operates within supply voltages of 100 to 132 volts AC. Its robust metal bezel and chromium-plated fixing collar, combined with a metal body, provide resilience against mechanical stress and corrosion.
The product incorporates a universal LED light source delivering bright and long-lasting illumination. The round orange lens enhances visibility for clear status indication in control panels and machinery systems. The pilot light’s compact size with 36.6 mm height and width and 30.5 mm mounting diameter ensures ergonomic panel integration.
Rated for IP66, IP67, and IP69 protection classes, the device is safeguarded against solid objects, dust, water jets, and high-pressure cleaning, suitable for food and beverage, automotive, mining, water treatment, and other industrial applications. The terminal screw clamp connection offers a secure and vibration-resistant wiring option.
Operating from -40°C up to 70°C, this pilot light provides outstanding environmental durability. It meets multiple international standards and approvals including CSA, CE, UL, CCC, EAC, JIS, and marine compliance, ensuring global applicability.
The pilot light is easy to install using a crosshead screwdriver and can be customized with marking options available on the Schneider Electric website.
The modular design supports various connection types such as screw clamp, faston connector, spring terminal, PCB terminal, and a wide choice of contact blocks for different switching needs.
Accessories like flush mounting kits, metal rings, spacers, and protective washers are available separately to optimize installation and panel aesthetics.
This product is ideal for electrical automation, industrial machinery, HVAC systems, manufacturing plants, and other commercial infrastructures requiring reliable and long-life pilot lights. The packaging includes one unit per package.
Discover the comprehensive range of Schneider Electric Pilot Lights and accessories to enhance your control panels and ensure efficient status indication with top-tier quality and safety. Browse EnvMart’s extensive collection to find solutions tailored to your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 100 to 132 volts AC.
The pilot light has a current rating of 14 mA, ensuring low power consumption.
It is rated IP66, IP67, and IP69 for protection against dust and water ingress.
This model features a flush mount design with a cutout diameter of 30 mm.
The body and bezel of the pilot light are made of metal, providing resilience against mechanical stress.
It operates effectively in a wide temperature range from -40°C to 70°C.
The pilot light complies with CSA, CE, and UL standards, among others.
It supports various connection types including screw clamp, Faston connector, spring terminal, and PCB terminal.
It is ideal for use in food and beverage, automotive, mining, water treatment, and other industrial applications.
Installation is straightforward and can be done using a crosshead screwdriver for secure mounting.
Accessories such as flush mounting kits, metal rings, spacers, and protective washers are available separately.
The pilot light features a round shape with an orange lens for clear visibility.
