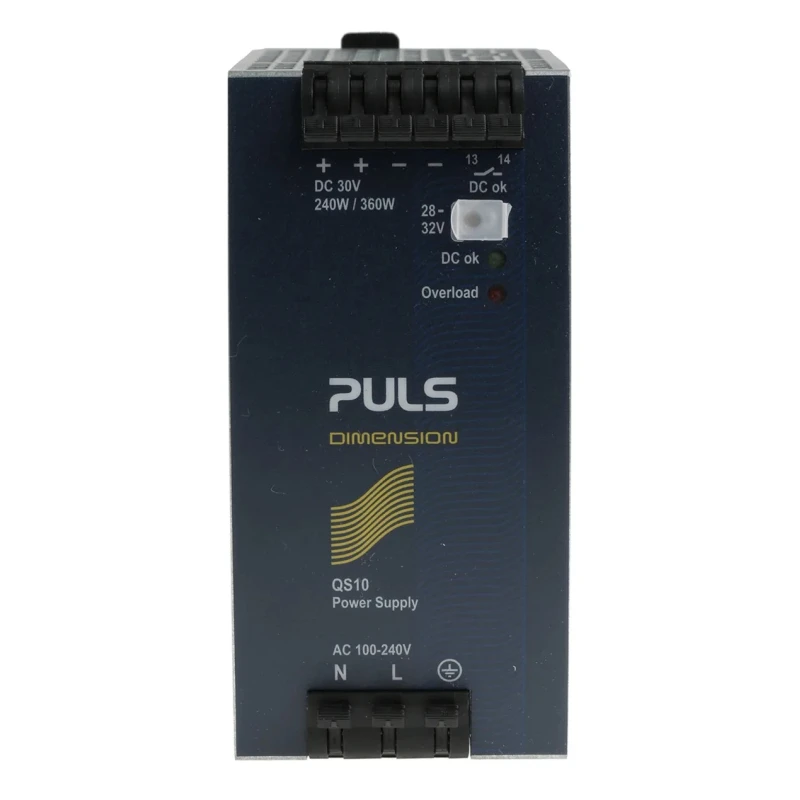

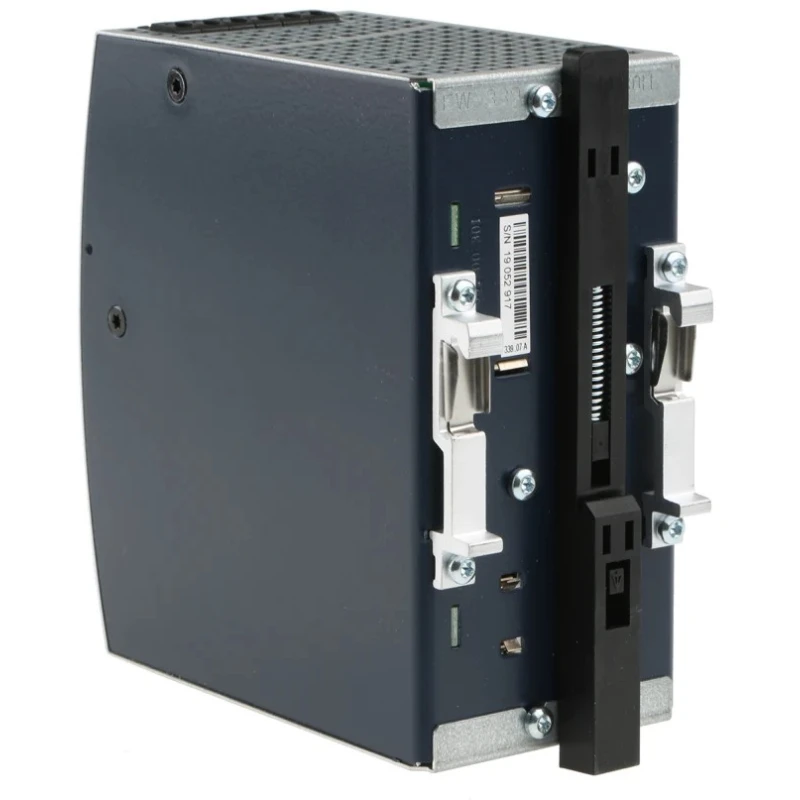

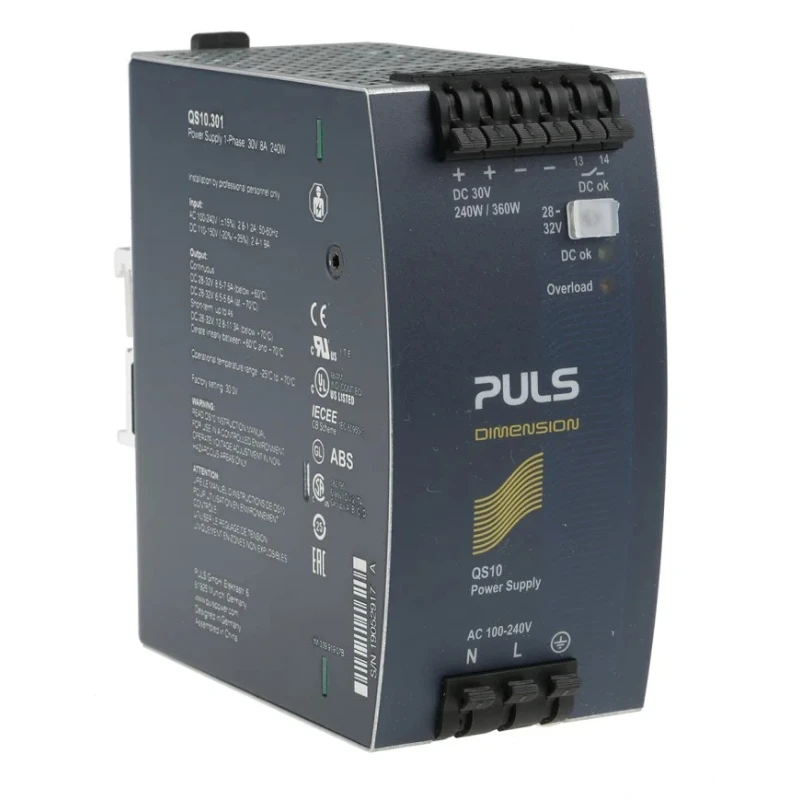

PULS DIMENSION Switched Mode DIN Rail Power Supply 100-240V AC Input 32V DC 8A Output 240W QS10.301
Specifications
| Country of Origin | China |
|---|---|
| Brand | PULS |
| Power | 240W |
| Height | 124mm |
| Model | QS10.301 |
| Depth | 117mm |
| IP Rating | IP20 |
| Width | 60mm |
| Series | DIMENSION |
| Output Current | 8A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 240V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 32V dc |
| Minimum Input Voltage | 100V ac |
Key Features
- Compact and lightweight design suitable for DIN rail mounting.
- Wide input voltage range from 100V to 240V AC.
- High efficiency up to 93.5% to reduce energy consumption.
- Equipped with quick-connect spring-clamp terminals for easy installation.
- Includes DC-OK signal with relay and LED indicators for operation status.
- Operating temperature range from -25°C to 70°C ensures reliable performance.
- Power reserves up to 50% available for 4 seconds in overload conditions.
- IP20 rated for basic protection in industrial environments.
Product Description
PULS QS10.301 DIN Rail Power Supply is a switched mode power supply unit designed for reliable industrial use, offering 240W power output with a 32V DC voltage and 8A current output. It accepts a wide AC input voltage range of 100V to 240V, making it suitable for various electrical environments.
This power supply is part of the DIMENSION series, known for its compact size and high-quality manufacturing. It features quick-connect spring-clamp terminals that facilitate easy and secure installation on standard DIN rails.
Its efficiency reaches up to 93.5%, reducing energy waste and operational costs. The unit provides diagnostic functions with a green DC-OK LED, a red overload LED, and a dry contact DC-OK signal with relay output to monitor functionality. Power reserves of 50% for up to 4 seconds help handle momentary overloads without interruption.
The operating temperature range of -25°C to 70°C ensures performance stability across diverse industrial conditions, while the IP20 rating protects against solid foreign objects but is not suitable for exposure to liquids.
Applications include industrial control systems, automation processes, communication devices, and instrumentation equipment requiring a reliable and high-performing DIN rail power supply.
Compact dimensions of 124mm height, 60mm width, and 117mm depth optimize space in electrical enclosures. Includes safety features with no hazardous area certification indicated. Manufactured in China under strict quality controls, this product meets reliable performance needs in demanding industrial environments.
Browse additional high-quality DIN Rail Power Supplies and related components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output power of this model is 240W.
It accepts a wide AC input voltage range from 100V to 240V.
The maximum output voltage is 32V DC.
The maximum output current is 8A.
The dimensions are 124mm in height, 60mm in width, and 117mm in depth.
The operating temperature range is from -25°C to 70°C.
It is equipped with quick-connect spring-clamp terminals for easy installation.
It has an efficiency rating of up to 93.5%.
The unit has an IP20 rating, providing basic protection against solid foreign objects.
Yes, it includes a green DC-OK LED, a red overload LED, and a dry contact DC-OK signal with relay output for monitoring functionality.
It is suitable for industrial control systems, automation processes, communication devices, and instrumentation equipment.
It is manufactured in China under strict quality controls.
