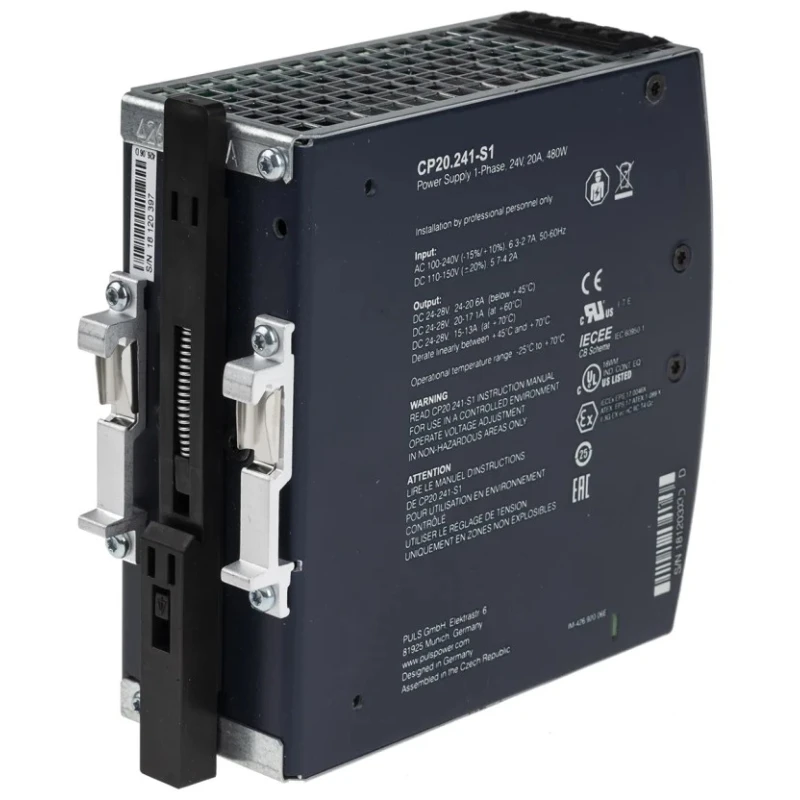

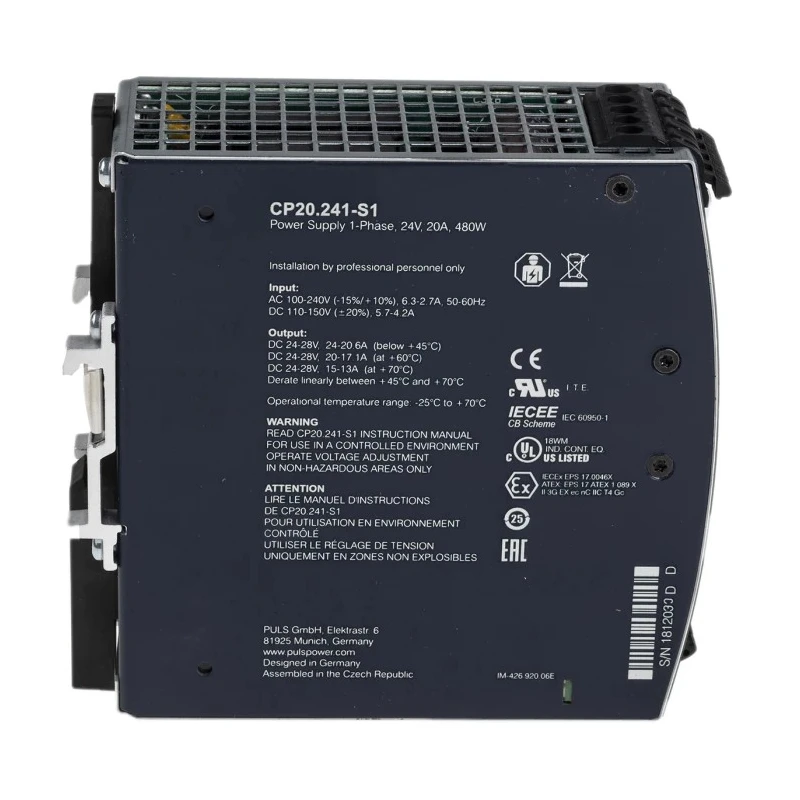

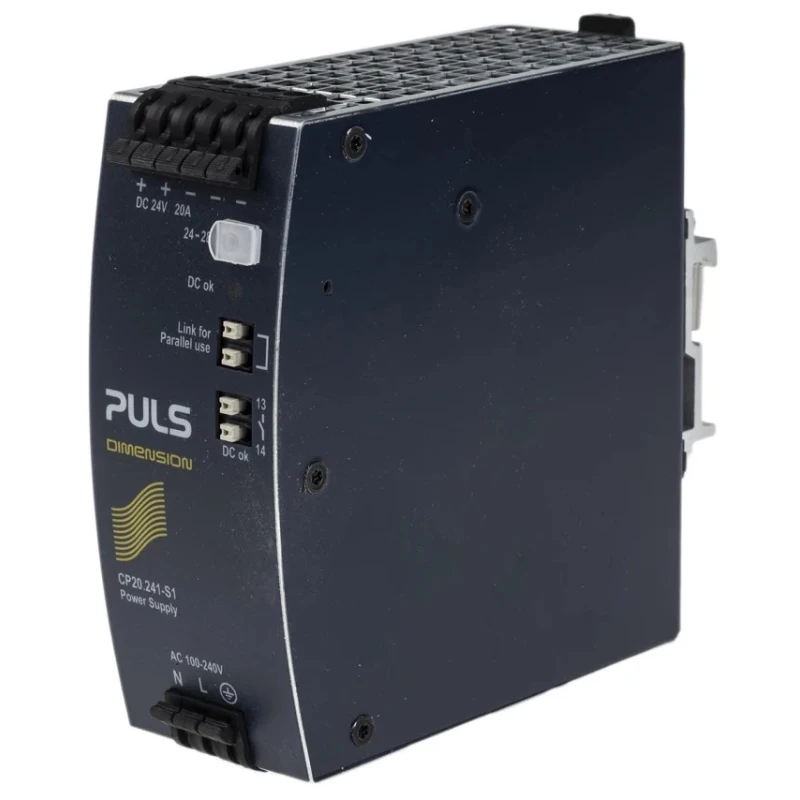

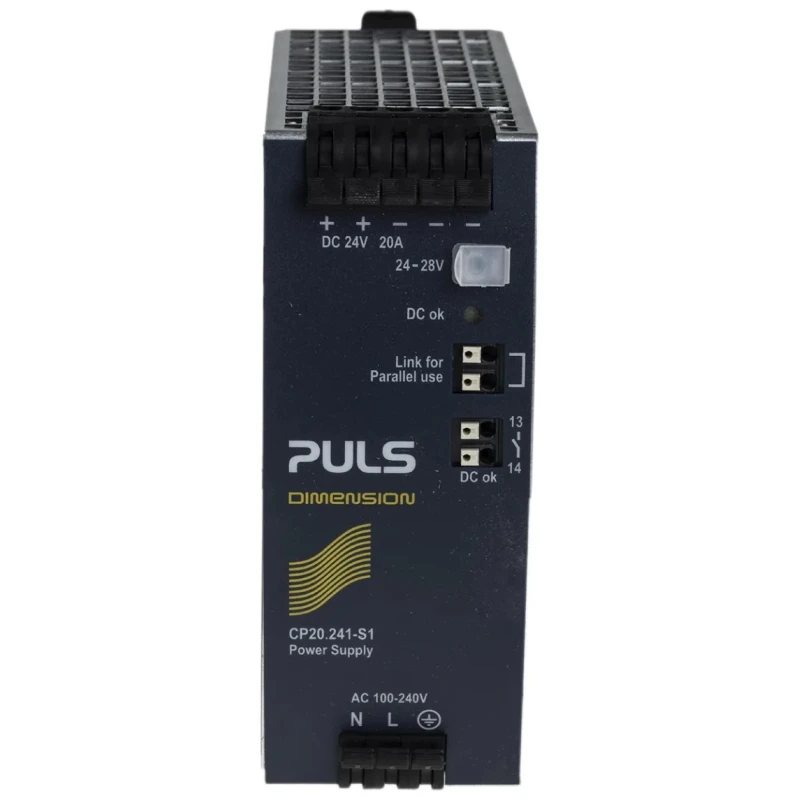

PULS DIN Rail Power Supply 24 V dc, 480 W, 20 A Output, 100-240 V ac Input CP20.241-S1
Specifications
| Country of Origin | India |
|---|---|
| Brand | PULS |
| Power | 480W |
| Efficiency | 95.6% |
| Height | 124mm |
| Model | CP20.241-S1 |
| Depth | 127mm |
| IP Rating | IP20 |
| Width | 48mm |
| Series | CP |
| Output Current | 20A |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 150, 240V dc |
| Electrical Phase | 1 |
| Hazardous Area Certification | ATEX, IECEx |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 100, 110V ac |
Key Features
- Equipped with conformal coated PC boards for resistance to harsh industrial environments.
- High efficiency of up to 95.6%, providing energy savings and reduced heat generation.
- Supports active power factor correction and minimal inrush current for system reliability.
- Compact dimensions of 124 mm height, 48 mm width, and 127 mm depth for space-saving installations.
- Certified with ATEX, IECEx, CE, cULus and UL standards ensuring safety in hazardous areas.
- Wide operating temperature range from -25°C to 70°C for varied environmental conditions.
- Single output channel optimized for industrial and ITE commercial power applications.
- IP20 rated enclosure provides protection against solid objects.
Product Description
PULS CP20.241-S1 DIN Rail Power Supply offers a reliable 24 V DC output with a power rating of 480 W and an output current of 20 A, accepting input voltages from 100 V to 240 V AC. The device features conformal coated printed circuit boards, allowing its use in harsh industrial environments while maintaining operational integrity.
This power supply is designed for industrial machines, manufacturing systems, and ITE commercial applications requiring stable DC power. Its high efficiency of 95.6% results in lower energy consumption and reduced heat dissipation, thereby enhancing component lifespan.
The product incorporates active power factor correction and exhibits minimal inrush surge current, improving overall system performance and reducing stress on electrical components at startup. Compact dimensions (124 mm height, 48 mm width, and 127 mm depth) facilitate installation in confined electrical cabinets or DIN rail enclosures.
It is certified under ATEX and IECEx for hazardous area applications, along with CE, cULus, UL 508, and UL 60950-1 standards, ensuring compliance with global safety regulations. The operating temperature range spans -25°C to +70°C, accommodating many industrial environments.
The DIN rail mounting power supply includes quick-connect spring clamp terminals that secure wiring effectively and tolerate mechanical vibrations common in industrial settings. The IP20 rating protects internal components from solid intrusion while allowing ventilation.
Equipped with conformal coated PC boards for harsh environments. High efficiency up to 95.6% reduces energy loss. Active power factor correction ensures stable operation. Minimal inrush current prevents electrical surges.
Compact form factor for easy DIN rail mounting. Wide operating temperature range from -25°C to +70°C. Complies with ATEX, IECEx, CE, cULus, and UL approvals. IP20 rated for protection against solid objects. Quick-connect spring clamp terminals for secure wiring.
This power supply is essential in industrial automation, manufacturing plants, HVAC systems, and electrical panel installations requiring dependable DC voltage sources. The PULS CP20.241-S1 ensures high uptime and operational safety in demanding industrial contexts.
Browse more DIN Rail Power Supplies and PULS products on EnvMart to find the right solution for your application needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output power of 480 W.
It has an efficiency rating of up to 95.6%.
The operating temperature range is from -25°C to +70°C.
The dimensions are 124 mm in height, 48 mm in width, and 127 mm in depth.
It is certified under ATEX, IECEx, CE, cULus, and UL standards for safety in hazardous areas.
The input voltage range is from 100 V to 240 V AC.
This power supply has a single output channel.
It supports DIN rail mounting, making it suitable for installation in electrical cabinets.
The output current is 20 A.
The IP20 rating protects the internal components from solid objects while allowing ventilation.
Yes, it incorporates active power factor correction for improved system performance.
It includes quick-connect spring clamp terminals for secure wiring.
