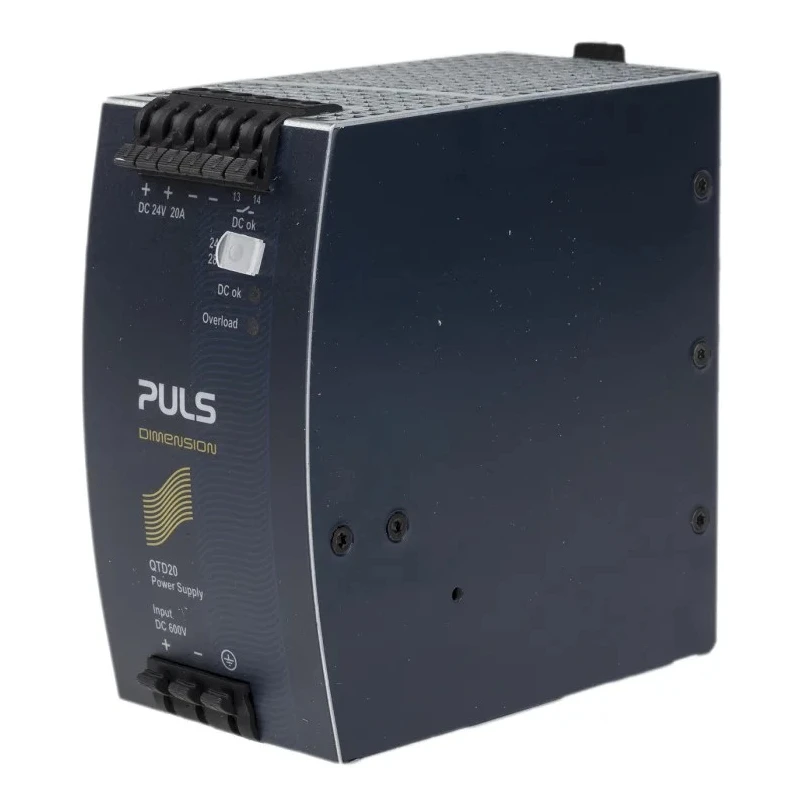

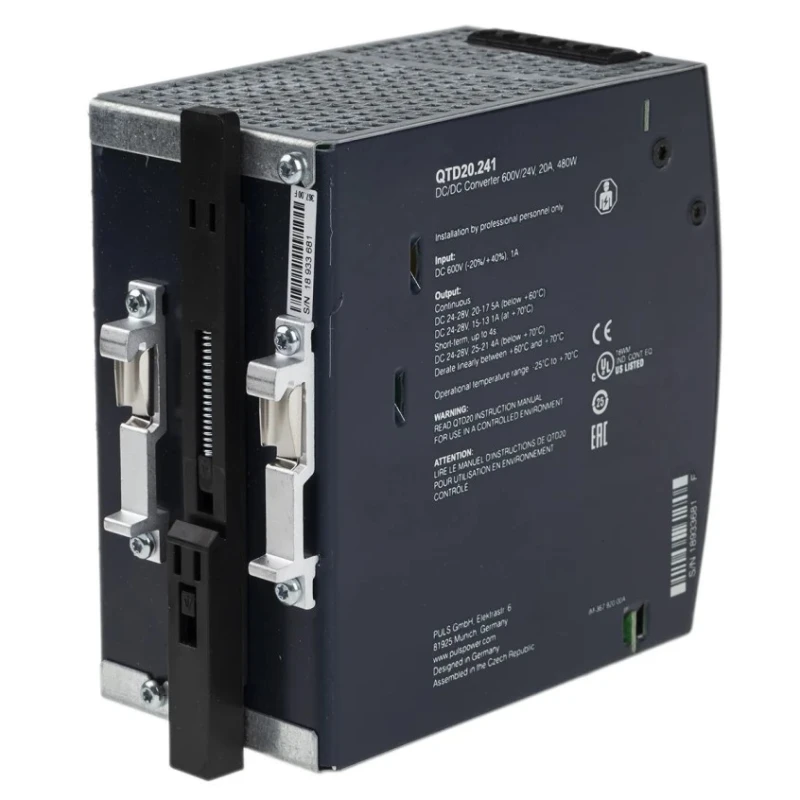

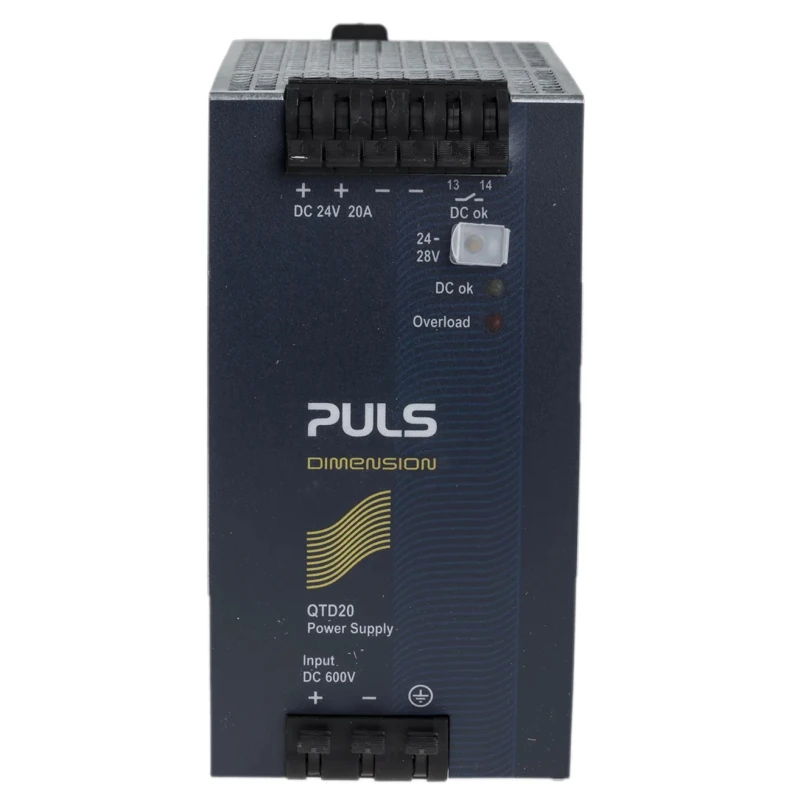

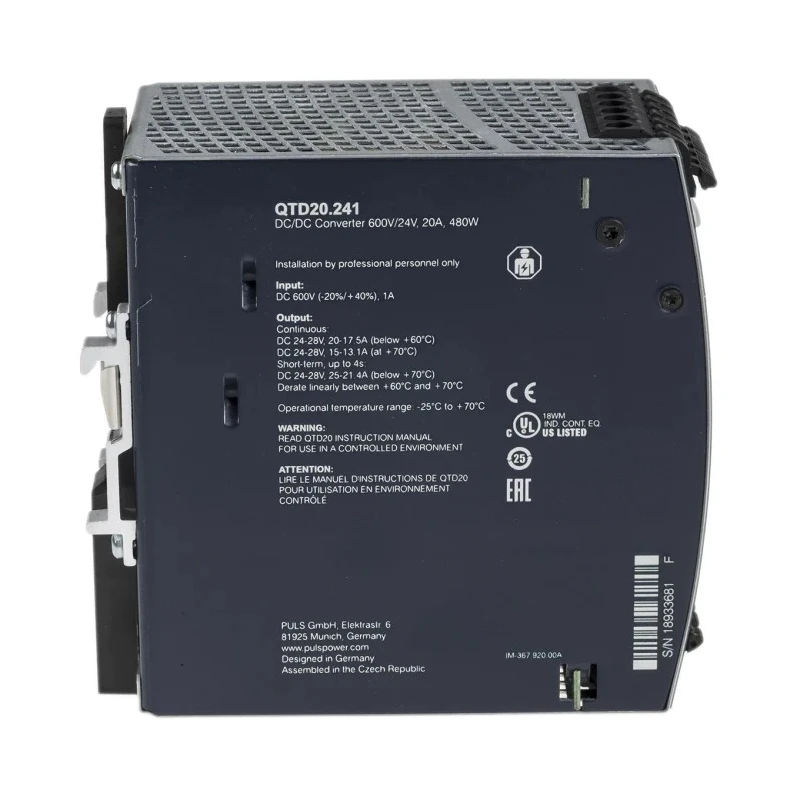

PULS DC/DC Converter 24V DC Output 20A, 600V DC Input, DIN Rail Mount, 480W, Max Operating Temp 70°C, Model QTD20.241
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | Converters / DC-DC Converters PULS Q DC/DC Converter, 24V dc/ 20 A, 600V dc Inpu |
| Brand | PULS |
| Efficiency | 95% |
| Length | 127mm |
| Model | QTD20.241 |
| Depth | 127mm |
| Gross Weight | 890g |
| Width | 65mm |
| Mount Type | DIN Rail |
| Series | Q |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| MTBF | 100h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 480W |
| Maximum Input Voltage | 600V dc |
| Standards/Approvals | CE, UL 508, cULus |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 20A |
| Output Voltage Adjustment Range | 24 to 28 V |
Key Features
- High efficiency up to 95% ensures energy-saving operation.
- Supports an output power rating of 480W for robust performance.
- Designed for operating temperatures from -25°C to 70°C.
- Equipped with active input transient filtering to protect against voltage spikes.
- Includes reverse input polarity protection for enhanced safety.
- Compact dimensions of 127mm x 127mm x 65mm fit standard DIN rails.
- Includes two input fuses rated for DC 600V for reliable protection.
- Ripple and noise level is low at 100mV peak-to-peak for stable output.
Product Description
The PULS QTD20.241 DC/DC Converter is a compact, high-performance module delivering a regulated 24V DC output at 20A, designed for use with industrial DIN rail mounting systems. It features a wide 600V DC input voltage tolerance, making it suitable for demanding power conversion tasks in industrial environments such as drive systems and motor control panels.
This converter is engineered to maintain excellent electrical performance with 95% efficiency, minimizing energy loss and heat generation. Its active input transient filtering and reverse polarity protection enhance device reliability and longevity in harsh electrical scenarios.
The device operates efficiently within a temperature range from -25°C to 70°C, enabling its use in various industrial and commercial settings where temperature fluctuations are common.
Physical dimensions of 127mm length, 127mm depth, and 65mm width provide a compact footprint, compatible with standard DIN rail installations. The converter features low ripple and noise levels of 100mV peak-to-peak, supporting sensitive electronic equipment.
Included two DC 600V input fuses provide secure protection against electrical faults. The unit’s MTBF is rated at 100 hours, reflecting robust build quality and durability. High efficiency up to 95% for energy-saving operation.
Active filtering and protection features enhance system reliability. Compact DIN rail mounting design optimizes space use. Supports a wide input voltage range for flexibility. Industrial-grade build suitable for harsh environments.
This product is CE certified and UL 508 and cULus approved, making it compliant with stringent international safety and quality standards. Ideal applications include industrial automation, manufacturing equipment, HVAC systems, and power supply for servo drives.
PULS products are globally recognized for quality and reliability in power conversion technology. Explore more PULS power converters and similar industrial electronics on EnvMart for your engineering and operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 480W.
It supports a maximum input voltage of 600V DC.
This converter has an efficiency rating of up to 95%.
The dimensions are 127mm in length, 127mm in depth, and 65mm in width.
It operates efficiently within a temperature range from -25°C to 70°C.
It can output a current of 20A.
It includes active input transient filtering and reverse input polarity protection.
The ripple and noise level is low at 100mV peak-to-peak.
It is designed for DIN rail mounting.
It is CE certified and UL 508 and cULus approved.
The Mean Time Between Failures (MTBF) is rated at 100 hours.
It is suitable for applications in industrial automation, manufacturing equipment, HVAC systems, and power supply for servo drives.
