RS PRO 9 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector Male with 4 to 40 UNC Screw Lock A-DS 09 A/KG-T2

Free Delivery in India | Lowest Global Shipping Charges

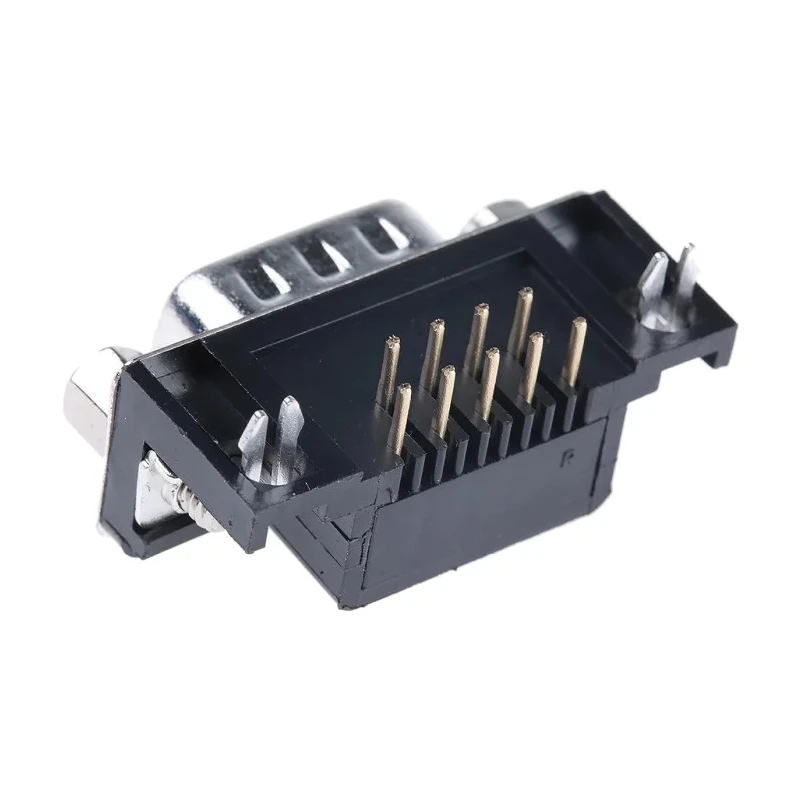

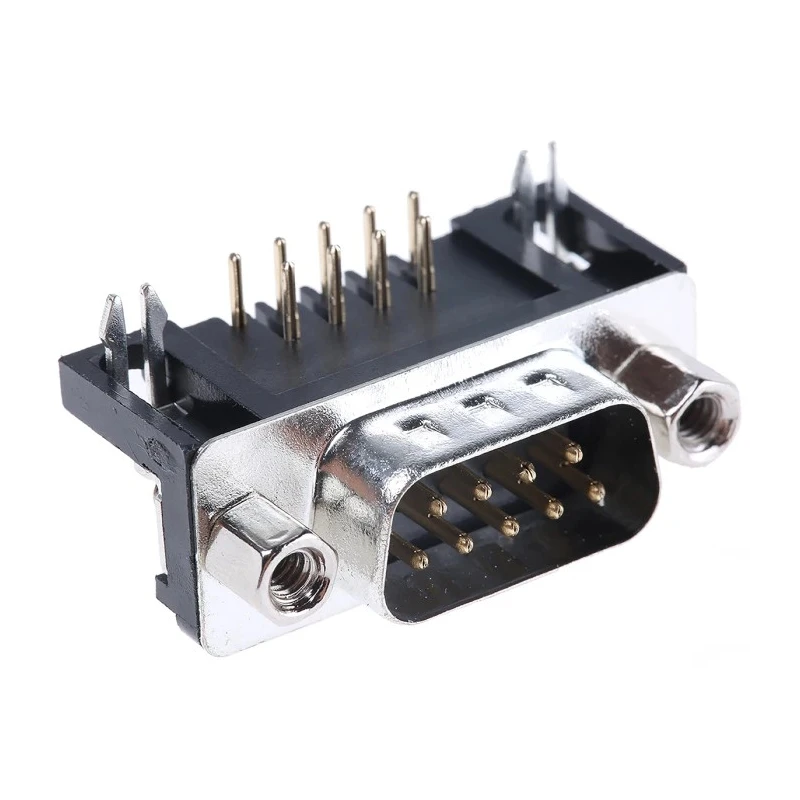

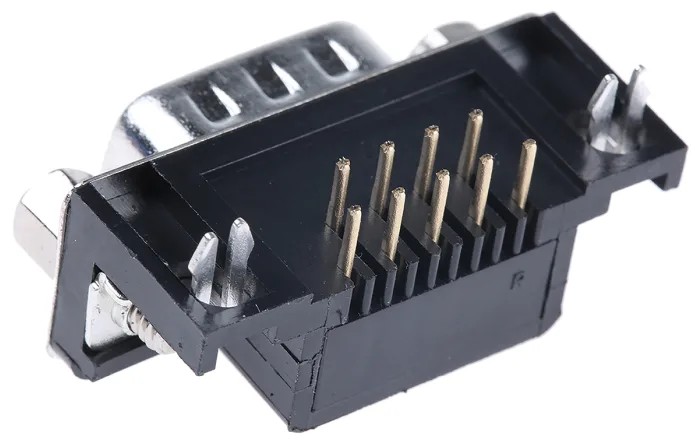

RS PRO 9 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector Male with 4 to 40 UNC Screw Lock A-DS 09 A/KG-T2

Name: RS PRO 9 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector Male with 4 to 40 UNC Screw Lock A-DS 09 A/KG-T2
Brand: RS PRO
SKU: 126000



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	RS PRO
Orientation	Right Angle
Current	3A
Model	A-DS 09 A/KG-T2
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-DS
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.77mm
Contact Plating	Gold, Nickel
Number of Contacts	9
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	DF-9

Key Features

This connector features 9 contacts for secure signal connections.
The right angle orientation facilitates PCB mounting and circuit board design.
It supports a 3A current rating and 250V voltage for robust electrical performance.
Constructed with polybutylene terephthalate housing for enhanced durability.
Gold and nickel plating on brass contacts ensures corrosion resistance and reliable conductivity.
Designed with 4 to 40 UNC screw lock mounting hardware for secure attachment.
Suitable for operating temperatures ranging from -40°C to 105°C, accommodating diverse environments.
Termination type is solder for dependable electrical contact on PCB.

Product Description

ASSMANN WSW A-DS 09 A/KG-T2 is a high-quality 9 Way Right Angle D-Sub Connector with a 2.77 mm pitch designed for through hole mounting in PCB applications. It is engineered to offer reliable electrical connections with a 3 amp current capacity and a voltage rating of 250 volts.

The right angle orientation of the connector supports optimized circuit board assembly and space management. The housing is made from durable polybutylene terephthalate, providing robust mechanical strength and electrical insulation.

Featuring brass contacts plated with gold and nickel, this connector ensures corrosion resistance and excellent conductivity essential for industrial and commercial electronics. Its 4 to 40 UNC screw lock mounting hardware securely fixes the connector to the PCB, preventing loosening in demanding conditions.

Operating temperature ranges from -40°C to a maximum of 105°C, enabling usage in various industrial, laboratory, telecommunications, and manufacturing environments. The solder termination type is standard for soldering to printed circuit boards, enhancing mechanical stability of connections.

This product is suited for applications requiring reliable D-Sub connectors, including industrial electronic devices, instrumentation, networking equipment, and control systems. 9 electrical contacts provide secure connections.

Right angle orientation aids compact PCB layout. 3 amp current capacity with 250 V voltage rating. Durable polybutylene terephthalate housing material. Gold and nickel plated brass contacts for high reliability. 4 to 40 UNC screw lock for secure mounting.

Wide operating temperature range from -40°C to 105°C. Solder termination type for robust PCB integration. Standard 2.77 mm contact pitch.

This 9 Way Right Angle D-Sub Connector by ASSMANN WSW represents a dependable solution within the power and signal connector category. Find a complete selection of compatible D-Sub Connectors and accessories at EnvMart.
