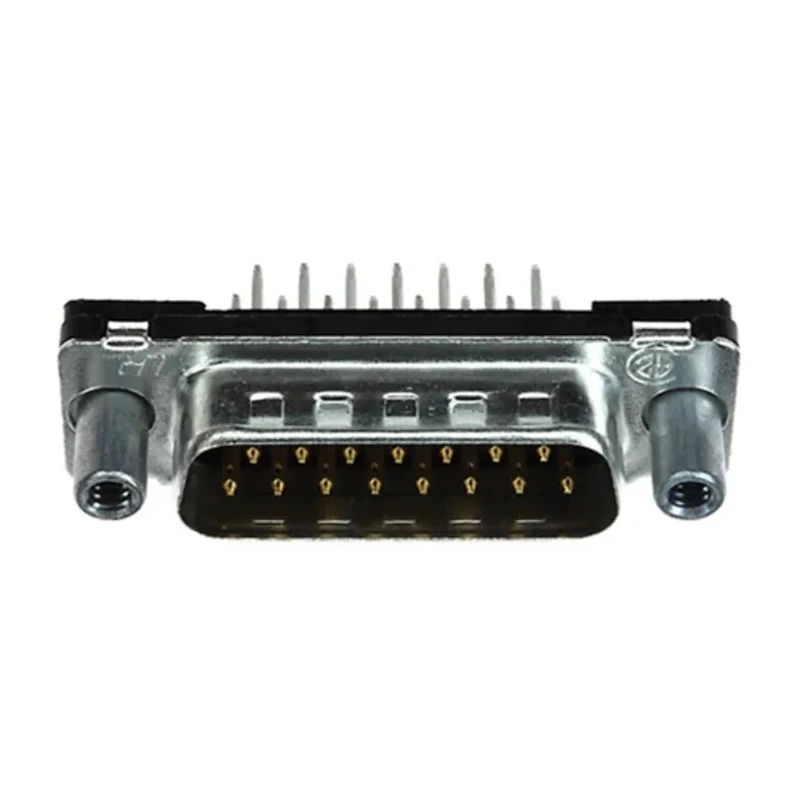

TE Connectivity AMPLIMITE HD-20 15 Way Straight Through Hole D-Sub Connector 2.743 mm Pitch 1-5747872-6

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HD-20 15 Way Straight Through Hole D-Sub Connector 2.743 mm Pitch 1-5747872-6

Name: TE Connectivity AMPLIMITE HD-20 15 Way Straight Through Hole D-Sub Connector 2.743 mm Pitch 1-5747872-6
Brand: TE Connectivity
SKU: 132221



Category D-Sub Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	6A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	AMPLIMITE HD-20
Mounting Hardware	4 to 40 UNC
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.743mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	15
Contact Gender	Male
Connector Gender	Male
Contact Size	20
Connector Type D	D-Sub
D-Sub Shell Size	DS-2

Key Features

Features 15 contacts for versatile electrical connections.
Constructed with thermoplastic housing for durability.
Supports through hole mounting for PCB integration.
Brass contact material with gold plating ensures corrosion resistance.
Operates reliably between -55°C and 105°C temperatures.
Connector type is DD-Sub with DS-2 shell size.
Mounting hardware includes 4 to 40 UNC screws for secure attachment.
Solder termination ensures solid electrical joints.

Product Description

TE Connectivity 1-5747872-6 is an AMPLIMITE HD-20 series 15 Way Straight Through Hole D-Sub Connector designed for robust and precise electronic connections on printed circuit boards. Featuring a 2.743 mm pitch, this connector accommodates currents up to 6 amps, suitable for various industrial, electronic, and electrical applications requiring reliable signal and power transmission.

The connector utilizes a durable thermoplastic housing rated to 94V-0 flammability standards, ensuring long service life and resistance to harsh environments. Brass contacts plated with gold provide excellent conductivity and corrosion resistance, while a front metal shell enhances shielding and mechanical robustness.

This model adopts a DS-2 shell size with male connector gender and straight orientation, making it compatible with standard D-sub mounts and assemblies. Mounting is performed via through-hole technique using 4 to 40 UNC screws, allowing firm mechanical fixation to PCB substrates. Solder terminations guarantee secure and permanent electrical connections to circuits.

Operating temperature ranges from -55°C to 105°C provide versatility for use in demanding industrial, commercial, laboratory, and manufacturing environments. The product complies with RoHS standards, reflecting adherence to environmental and safety directives.

The AMPLIMITE HD-20 series is known for a range of D-Sub Connectors with high-quality construction suitable for power and signal applications, making this model ideal for electronic kits, testing equipment, instrumentation, and automation systems.

Features 15 contacts for versatile electrical connections. Constructed with thermoplastic housing for durability. Supports through hole mounting for PCB integration. Brass contact material with gold plating ensures corrosion resistance.

Operates reliably between -55°C and 105°C temperatures. Connector type is DD-Sub with DS-2 shell size. Mounting hardware includes 4 to 40 UNC screws for secure attachment. Solder termination ensures solid electrical joints.

Meets RoHS compliance standards for environmental safety. Explore the comprehensive range of TE Connectivity connectors on EnvMart for advanced electronic component solutions tailored to industrial and commercial applications.
