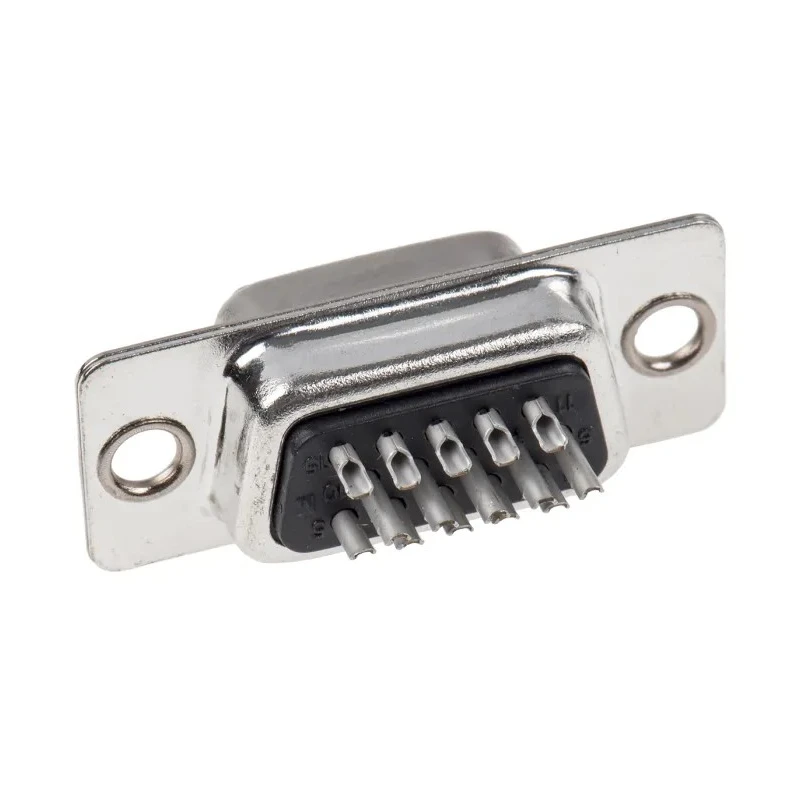

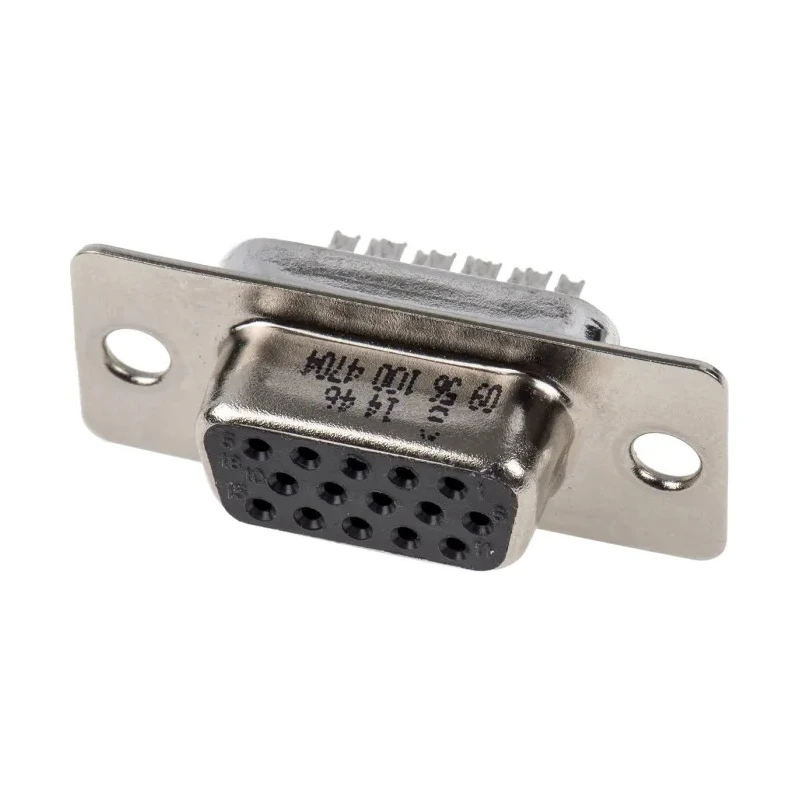

HARTING D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub Connector 09561004704

Free Delivery in India | Lowest Global Shipping Charges

HARTING D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub Connector 09561004704

Name: HARTING D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub Connector 09561004704
Brand: HARTING
SKU: 125348
Price: 3.53 USD
Availability: InStock



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	China
Voltage	1000V
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Cable
Housing Material	Steel
Contact Material	Copper Alloy
Series	D-Sub
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.29mm
Contact Plating	Gold
Number of Contacts	15
Contact Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	E
HARTING D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub ConnectorBrand	HARTING

Key Features

This connector features 15 female contacts with a 2.29 mm pitch.
It supports a current rating of 2A and voltage up to 1000V.
The housing is made of durable steel with gold-plated copper alloy contacts for reliable conductivity.
Designed for cable mount with a straight orientation, suitable for solder termination.
Operates reliably between -55°C and 105°C, suitable for harsh environments.
Meets performance level 3 with over 50 mating cycles according to DIN 41 652, part 2 standards.
High-density connector with 70% increased contact capacity compared to standard D-sub connectors.
Manufactured in China ensuring quality and performance consistency.

Product Description

HARTING 09561004704 D-Sub 15 Way Straight 2.29 mm Pitch Cable D-Sub Connector is designed for reliable electronic connection in various industrial and electronics environments. This connector incorporates 15 female copper alloy contacts with gold plating, ensuring excellent electrical performance and durability under demanding conditions.

The connector's robust steel housing provides mechanical strength, while the straight cable mount design allows for convenient wiring and installation. Operating voltage reaches up to 1000V with a current rating of 2 Amps, making it suitable for power and signal applications. The contact pitch is 2.29 mm, featuring a high-density layout that exceeds standard subminiature D connectors by 70% contact capacity.

It supports a wide temperature range from -55°C to 105°C, enabling use in extreme conditions without degradation. The product complies with performance criteria per DIN 41 652, part 2, guaranteeing more than 50 mating cycles without gas test requirements, which is crucial for long-term reliability.

Applications span across industrial machinery, electronic components, power connectors, computing devices, and various automated systems. The connector facilitates efficient signal and power transmission for demanding setups in manufacturing, automation, and other commercial sectors.

This connector features 15 female contacts with a 2.29 mm pitch. It supports a current rating of 2A and voltage up to 1000V. The housing is made of durable steel with gold-plated copper alloy contacts for reliable conductivity.

Designed for cable mount with a straight orientation, suitable for solder termination. Operates reliably between -55°C and 105°C, suitable for harsh environments. Meets performance level 3 with over 50 mating cycles according to DIN 41 652, part 2 standards.

High-density connector with 70% increased contact capacity compared to standard D-sub connectors. Manufactured in China ensuring quality and performance consistency.

Choose this HARTING D-Sub Connector for efficient, reliable connectivity in industrial, electronic, and power distribution applications. Explore our extensive range of connectors and related industrial components at EnvMart for your next project.
