RS PRO 15 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with 3.05 mm Through Hole Female 544-3799

Free Delivery in India | Lowest Global Shipping Charges

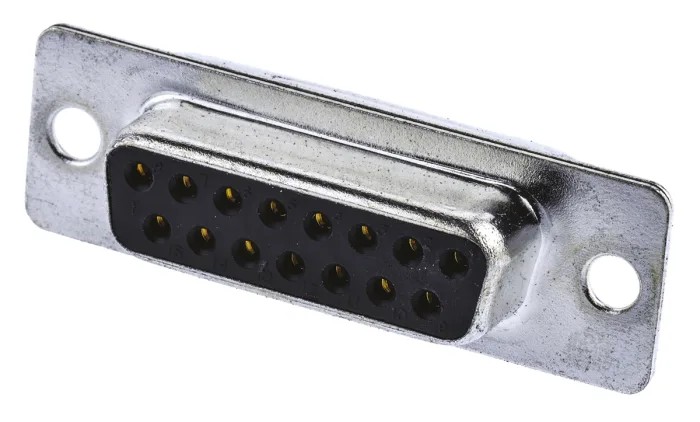

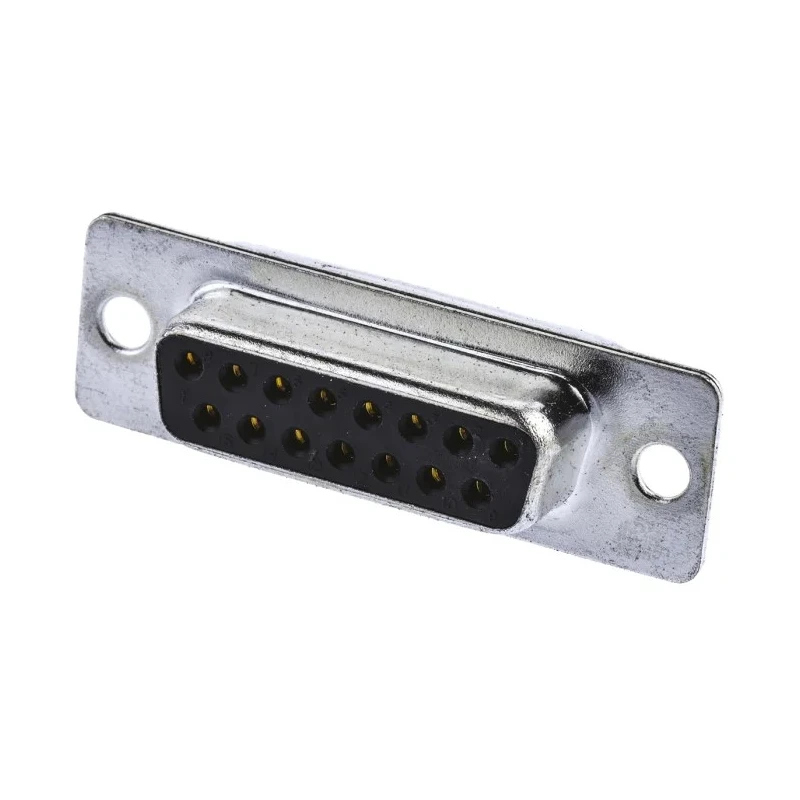

RS PRO 15 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with 3.05 mm Through Hole Female 544-3799

Name: RS PRO 15 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with 3.05 mm Through Hole Female 544-3799
Brand: RS PRO
SKU: 123497
Price: 6.45 USD
Availability: InStock



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	500V
Brand	RS PRO
Orientation	Straight
Current	5A
Model	544-3799
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Brass
Mounting Hardware	3.05 mm Through Hole
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.77mm
Contact Plating	Gold
Number of Contacts	15
Contact Gender	Female
Connector Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	A
D-sub ConnectorBrand	NEUTRAL
15W D SCREENED SKT.-COMMBrand	NEUTRAL

Key Features

This panel mount connector has a robust steel housing with gold-plated machined contacts.
It is designed for reliable solder termination with solder cup contacts.
The connector supports a maximum current of 5A and voltage rating of 500V.
It features a 3.05 mm through hole mounting hardware for secure panel fixing.
The operating temperature range is -55°C to 105°C, suitable for industrial applications.
The pitch between contacts is 2.77 mm ensuring precise connectivity.
The shell size is A, which is compact and standardized for D-Sub connectors.
The contacts are made of brass with gold plating for corrosion resistance and optimal conductivity.

Product Description

RS PRO model 544-3799 is a 15 way straight D-Sub connector featuring a 2.77 mm pitch and panel mount with 3.05 mm through hole female connectors. It is designed to provide durable and reliable signal connectivity in a wide range of industrial, commercial, networking, and computing applications.

The connector shell is made of high-quality steel, offering mechanical strength, and is fitted with gold-plated brass machined contacts to ensure excellent electrical contact and resist corrosion. Its solder cup terminations allow for secure wire connections using standard soldering techniques.

This D-Sub Connector supports a voltage rating of 500 volts and a current rating of 5 amps, making it suitable for power and signal applications. The operating temperature range spans from -55°C to 105°C, allowing it to function reliably in harsh environments.

RS PRO 544-3799 features a compact shell size A and a pitch of 2.77 mm between contacts to ensure compatibility with corresponding connectors. The female connector gender socket mates perfectly with male D-Sub plugs. The panel mount design with 3.05 mm through hole hardware enables easy and stable installation on equipment chassis or panels.

This connector finds application in computers, monitors, scanners, networking devices, test and measurement equipment, and various industrial systems that require secure and precise input/output interconnections.

Robust steel shell for durability and mechanical protection. Gold-plated brass machined contacts for reliable conductivity. Solder cup termination for easy wire attachment. Panel mount through-hole design with 3.05 mm mounting size.

Supports currents up to 5 amps and voltages up to 500 volts. Wide operating temperature range from -55°C to 105°C. Compact size A shell with 15 contacts at 2.77 mm pitch.

Manufactured in Taiwan, Province Of China, this RS PRO connector is suitable for industrial, laboratory, computing, and communications equipment needing dependable cable interconnections. Explore EnvMart's comprehensive catalog for compatible connectors and accessories.
