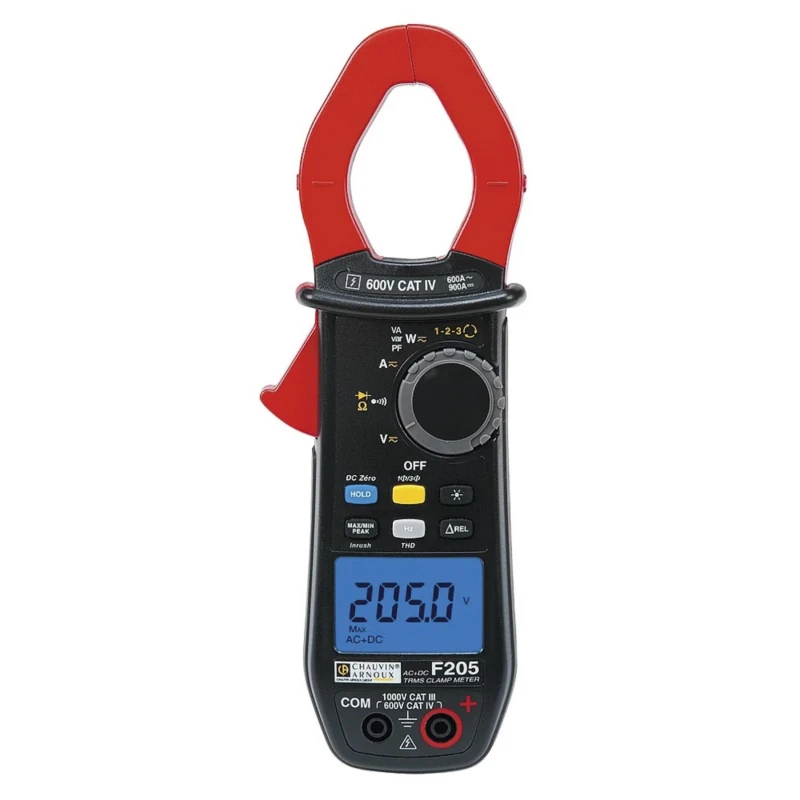

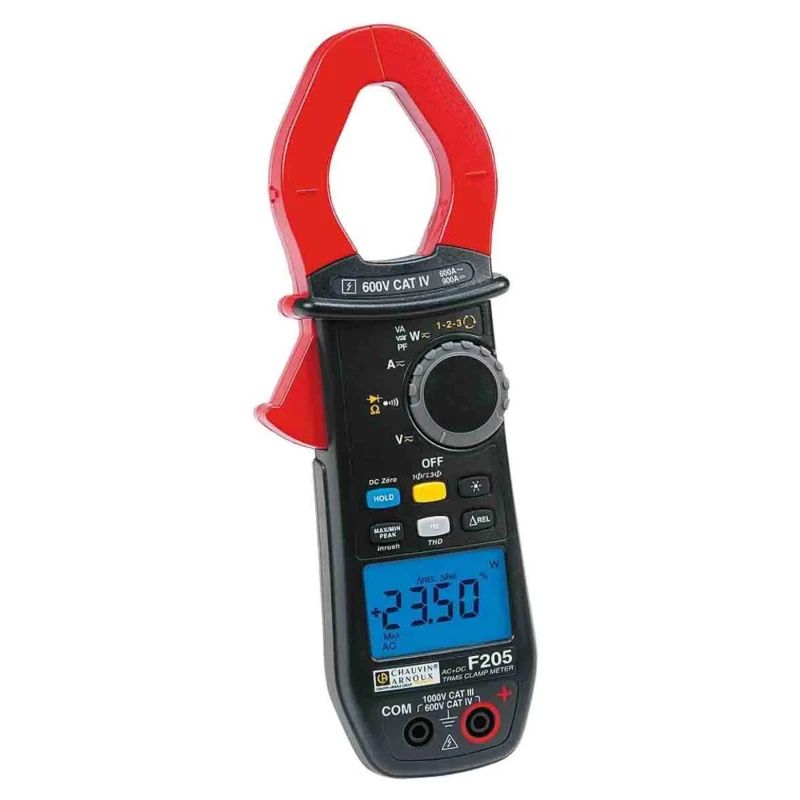

Chauvin Arnoux Clamp Meter, F205 Model, 900 A DC, 1400 V DC, 1000 V AC, True RMS, CAT III, CAT IV P01120925
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD Backlight |
| Brand | Chauvin Arnoux |
| Battery Life | 130h |
| Battery type | 6LR61 |
| Current | 600 AAC/ 900 ADC |
| Height | 272mm |
| Length | 92mm |
| Model | P01120925 |
| Gross Weight | 600g |
| Width | 41mm |
| AC Voltage Resolution | 0.01V ac |
| Minimum Operating Temperature | 55°C |
| DC Current Accuracy | ±1 % rdg + 3 Digits |
| DC Voltage Resolution | 0.01 V dc |
| Resistance Measurement Accuracy | ±1 % + 5 Digits |
| Resistance Resolution | 100mΩ |
| DC Current Resolution | 10mA |
| Maximum Jaw Opening | 34mm |
| Functions Measured | AC Voltage, Continuity, Power, DC Voltage, Phase Rotation, Frequency, Diode, Inrush Current, DC Current, Power Factor, Harmonics, Resistance, AC Current |
| Maximum Resistance Measurement | 60kΩ |
| Maximum DC Voltage Measurement | 1400V dc |
| Maximum DC Current Measurement | 900A dc |
| Maximum AC Voltage Measurement | 1000V ac |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 1kV |
| Maximum Conductor Size | 48mm |
| Clamp Meter Type | AC/DC Clamp Meter |
| Chauvin Arnoux F05 Clampmeter, 400A dc, Max Current 400A ac CAT III 600 VBrand | Chauvin Arnoux |
Key Features
- Measures AC and DC current up to 900 A and voltage up to 1400 V DC and 1000 V AC.
- Maximum jaw opening of 34mm fits conductors up to 48mm in diameter.
- Equipped with LCD backlight display and 130 hours battery life.
- Advanced functions include power, phase rotation, frequency, diode test, and inrush current.
- High accuracy with ±1 % reading plus digits for DC current and voltage.
- Safety rated CAT III and CAT IV for 1kV applications.
- Robust IP54 protection and compact, lightweight design.
- Operates up to 55°C and weighs about 600 grams.
Product Description
Chauvin Arnoux F205 Clamp Meter is engineered for electricians and electrical professionals requiring accurate and reliable AC/DC current and voltage measurements. With capability to measure up to 900 A DC current, 1400 V DC, and 1000 V AC voltages, this True RMS clamp meter performs precision diagnostics in industrial, commercial, and maintenance applications.
The meter features a 34mm jaw opening accommodating conductors up to 48mm diameter, delivering versatile measurement access. Its LCD backlit display ensures clarity in low-light conditions while a robust battery life of 130 hours supports extended field use.
Advanced functions include power and power factor measurement, phase rotation detection, frequency measurement, diode testing, and inrush current analysis, critical for comprehensive electrical system assessments. Its ±1 % reading accuracy with additional digit counts ensures dependable results.
Safety is prioritized with CAT III and CAT IV ratings certifying use in high-energy installations up to 1kV. The meter’s IP54 rating provides resistance against dust and water splashes, enhancing durability on site. Its compact design and 600 g weight support portability.

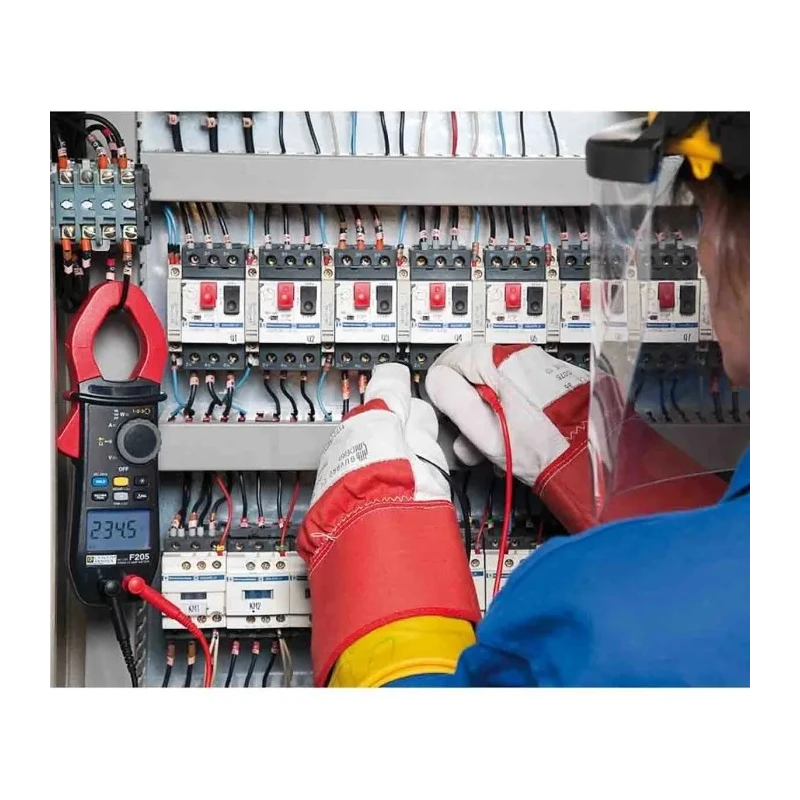

Designed and manufactured in China, the F205 Clamp Meter is a compact, easy-to-use instrument ideal for electrical installation verification, troubleshooting, and maintenance in industrial plants, electrical contractors, and field engineers.
Measures AC/DC current up to 900 A and AC/DC voltage up to 1400 V/1000 V respectively. True RMS measurement technology for accurate readings under non-linear loads. 12-bit digital acquisition for fast and reliable data capture.
Multifunction capabilities including power, frequency, harmonics, and inrush current. Compact size with 34mm jaw opening and clear LCD backlight display. Robust safety standards adherence with CAT III, CAT IV, 1kV rating.
Suitable for industrial, laboratory, construction, and electrical maintenance applications. Explore more precision measuring instruments and Clamp Meters at EnvMart for your professional electrical testing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure DC current up to 900 A and AC current up to 600 A.
It can measure up to 1400 V DC and 1000 V AC.
The maximum jaw opening is 34 mm, accommodating conductors up to 48 mm in diameter.
It is equipped with an LCD backlight display for visibility in low-light conditions.
The battery life is approximately 130 hours, using a 6LR61 battery type.
It is rated for CAT III and CAT IV applications, suitable for use in high-energy installations up to 1 kV.
It measures AC voltage, DC voltage, AC current, DC current, power, frequency, phase rotation, diode testing, inrush current, and resistance.
The accuracy for DC current measurements is ±1 % of reading plus 3 digits.
It has a height of 272 mm, a length of 92 mm, and a width of 41 mm, with a gross weight of 600 g.
The minimum operating temperature is -55°C.
It can measure resistance up to a maximum of 60 kΩ with an accuracy of ±1 % plus 5 digits.
It is suitable for industrial, laboratory, construction, and electrical maintenance applications.
