Bernstein AG SCR Safety Relay, 24V ac/dc, 4 Safety Contacts, 3 NO/1 NC Contact Configuration, DIN Rail Mount 6075111009

Free Delivery in India | Lowest Global Shipping Charges

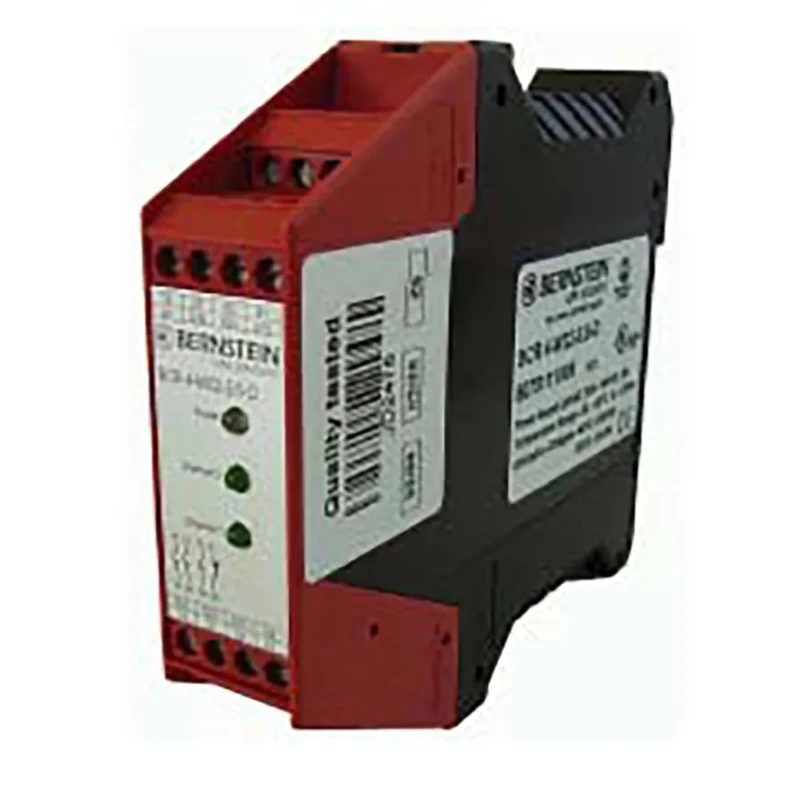

Bernstein AG SCR Safety Relay, 24V ac/dc, 4 Safety Contacts, 3 NO/1 NC Contact Configuration, DIN Rail Mount 6075111009

Name: Bernstein AG SCR Safety Relay, 24V ac/dc, 4 Safety Contacts, 3 NO/1 NC Contact Configuration, DIN Rail Mount 6075111009
Brand: Bernstein AG
SKU: 153511
Price: 231.51 USD
Availability: InStock



Category Safety Relay Brand Bernstein AG Condition New

Specifications

Country of Origin	Germany
Brand	Bernstein AG
Height	114.5mm
Length	22.5mm
IP Rating	IP20, IP40
Width	99mm
Mount Type	DIN Rail
Protection Class	IP20
Series	SCR
Maximum Operating Temperature	55°C
Contact Configuration	3 NO/1 NC
Minimum Operating Temperature	-25°C
Safety Category	CAT 4
Terminal type	Screw
Ambient Temperature	0°C to +60°C
Coil Voltage	24V ac/dc
Switching DC Voltage	24V dc
Switching AC Voltage	240V ac
Contact Current	5A
Safety Contacts	4
Number of Auxiliary Contacts	3
I/O Link protocol	V1.1
Output current per signal output I.e.	50mA

Key Features

Designed for mounting on DIN rail for easy installation.
Operates with switching voltages of 24V dc and 240V ac.
Equipped with screw terminals for secure wiring.
IP20 and IP40 protection ratings suitable for industrial environments.
Certified to EN ISO 13849-1 and TÜV standards for safety category CAT 4.
Wide operating temperature range from -25°C to 55°C ensures robust performance.
Output current per signal output is 50mA with I/O Link protocol V1.1 support.
Designed and manufactured in Germany for quality assurance.

Product Description

Bernstein AG 6075111009 Safety Relay is a high-quality single-channel safety relay designed for industrial automation and safety systems. It operates at a coil voltage of 24V ac/dc, providing dependable switching of safety circuits with 4 safety contacts configured as 3 normally open and 1 normally closed.

This device supports mounting on standard DIN rails, allowing efficient panel integration in control cabinets. It features high switching voltages of 24V dc and 240V ac and uses screw terminals ensuring secure and stable electrical connections.

Rated with IP20 and IP40 protection classes, the relay is suitable for indoor industrial environments where protection against solid objects and low-level ingress is required. The relay meets stringent safety standards including EN ISO 13849-1, TÜV type testing, EU directives (2006/42/EG, 2014/30/EU), and CUL US certification, providing confidence in safety-critical applications with Safety Category 4 classification.

The relay sustains operational temperature extremes from -25°C to 55°C, guaranteeing functionality under varying environmental conditions. Compactly sized with dimensions 99mm wide, 114.5mm high, and 22.5mm deep, it easily integrates within electrical panels without excessive space requirements.

Four safety contacts enabling 3 NO and 1 NC contact configuration. Auxiliary contacts numbering three for additional circuit functionality. Supports I/O Link protocol V1.1, enhancing communication capabilities. Maximum output current per signal output is 50mA, suitable for control signal transmission.

Manufactured in Germany, assuring rigorous quality control and reliability.

This safety relay is ideal for industrial, manufacturing, and automation systems requiring reliable and certified safety interlock and emergency stop functions. Its robust design and certification make it suitable for integration into modern safety control panels, machinery protection circuits, and safety automation solutions.
