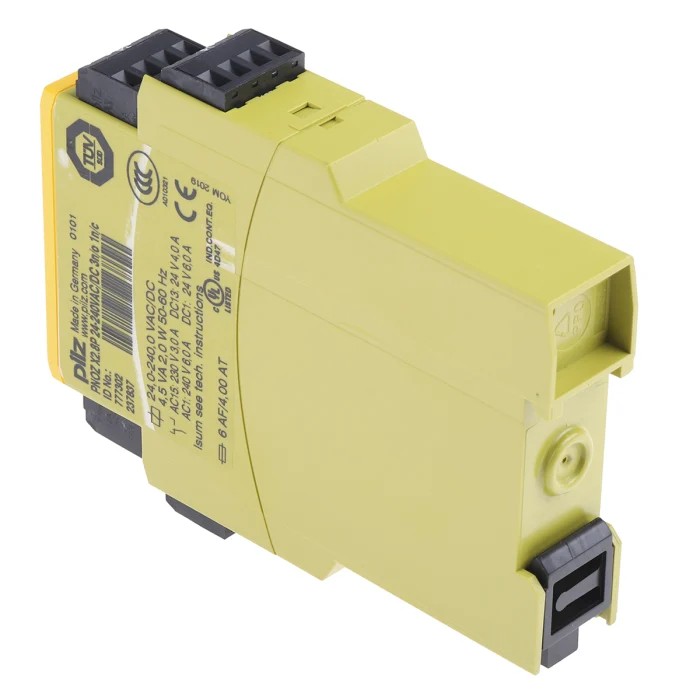

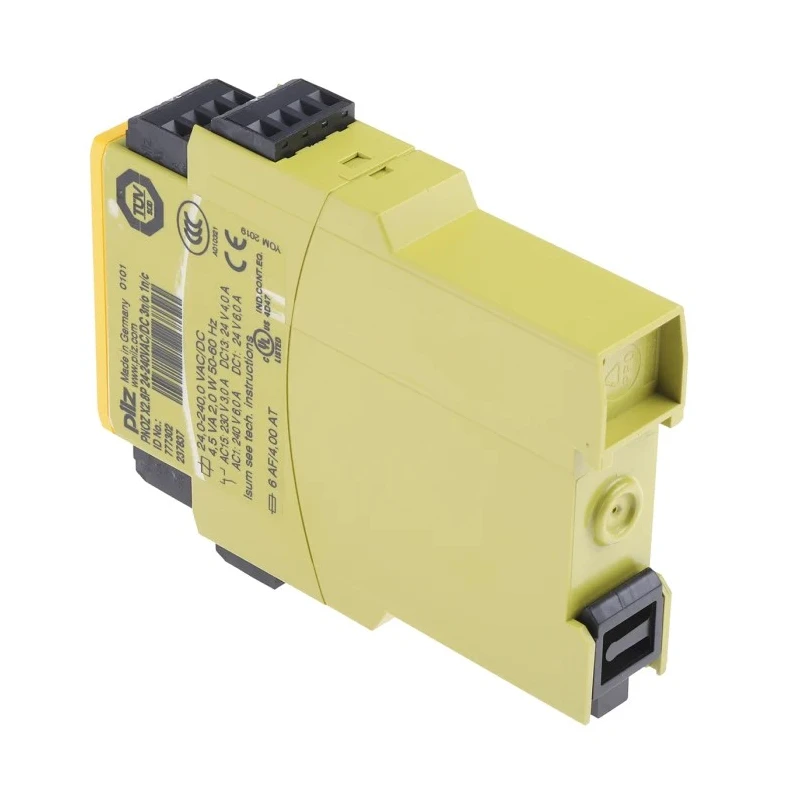

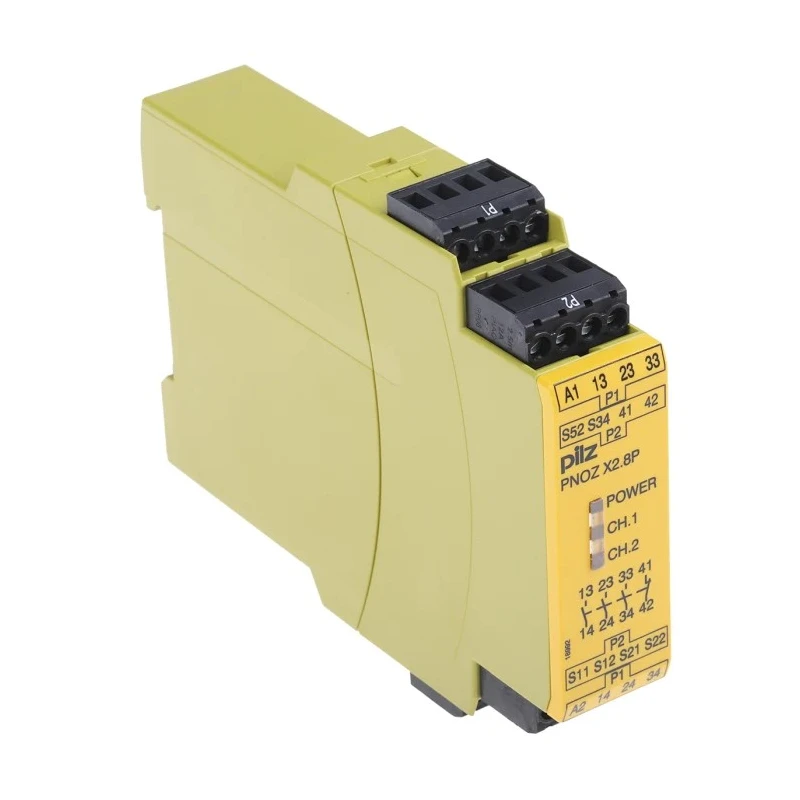

Pilz PNOZ X2.8P Safety Relay, 24V AC/DC, 240V AC/DC, 3 Safety Contacts, 1 Auxiliary Contact, Manual Reset, DIN Rail 777302

Pilz 777302 PNOZ X2.8P Safety Relay, engineered for high reliability in industrial safety applications, supports dual AC/DC coil voltages of 24V and 240V allowing versatile use. It includes 3 safety contacts and 1 auxiliary contact to facilitate comprehensive safety circuit monitoring and control.

The relay mounts easily on DIN rails and uses screw terminals for secure, maintenance-free wiring. Its manual reset functionality allows operators to promptly restore system readiness after safety events are triggered.

Designed in compliance with international safety standards including EN 60204-1 and EN ISO 13849-1, this relay features an IP20 enclosure rating and can operate in ambient temperatures from -10°C to 55°C, making it suitable for diverse industrial environments.

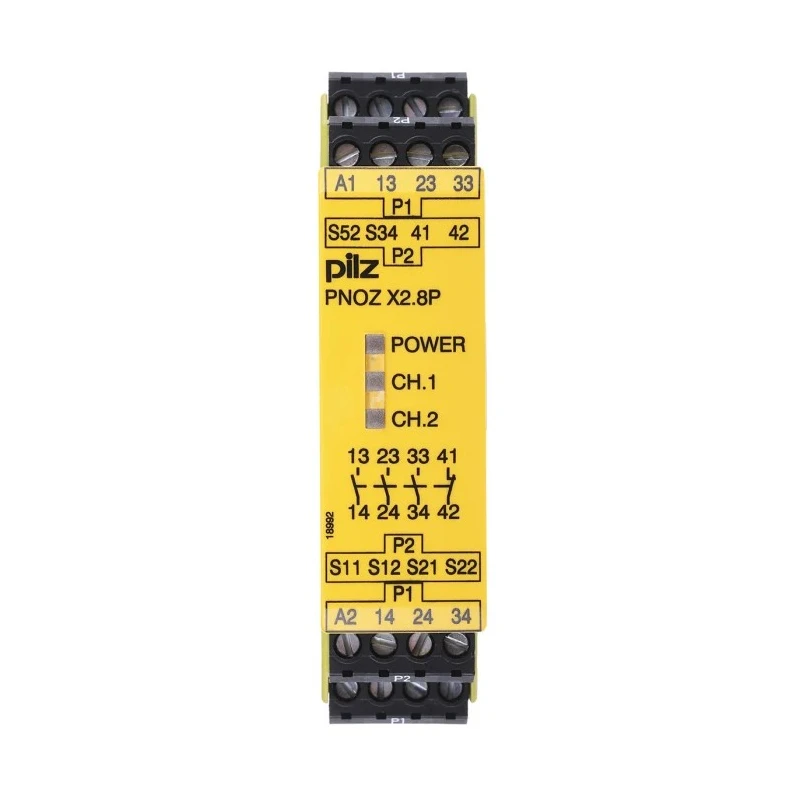

Its LED display provides real-time monitoring of supply voltages and switch status, enhancing operational transparency. Safety category is classified as PLe Category 4, ensuring the highest level of risk reduction performance.

Applications include safety gate monitors, emergency stop monitoring, limit switch circuits, card readers, and light beam device monitoring with safety delay-on timers. The relay’s design supports quick wiring configuration and reliable detection of short circuits or wiring faults, enhancing plant safety and operational uptime.

Its compact dimensions (22.5 mm width, 121 mm height, 94 mm length) allow installation in space-constrained control panels. The defined clamping force of the screw terminals eliminates the need for regular retightening, supporting maintenance-free operation.

Overall, the Pilz PNOZ X2.8P 777302 is a high-performance, robust safety relay that meets demanding industrial automation safety requirements, ideal for manufacturing, packaging, material handling, and process control industries.

Manual reset and DIN rail mounting contribute to ease of use and integration. LED indicators provide clear operational diagnostics. Compliance with relevant safety standards ensures reliable safety control. Robust construction supports varied environmental conditions.

Versatile coil voltage range enhances application flexibility. Explore the extensive range of Safety Relays and automation components available at EnvMart for reliable industrial safety solutions.
