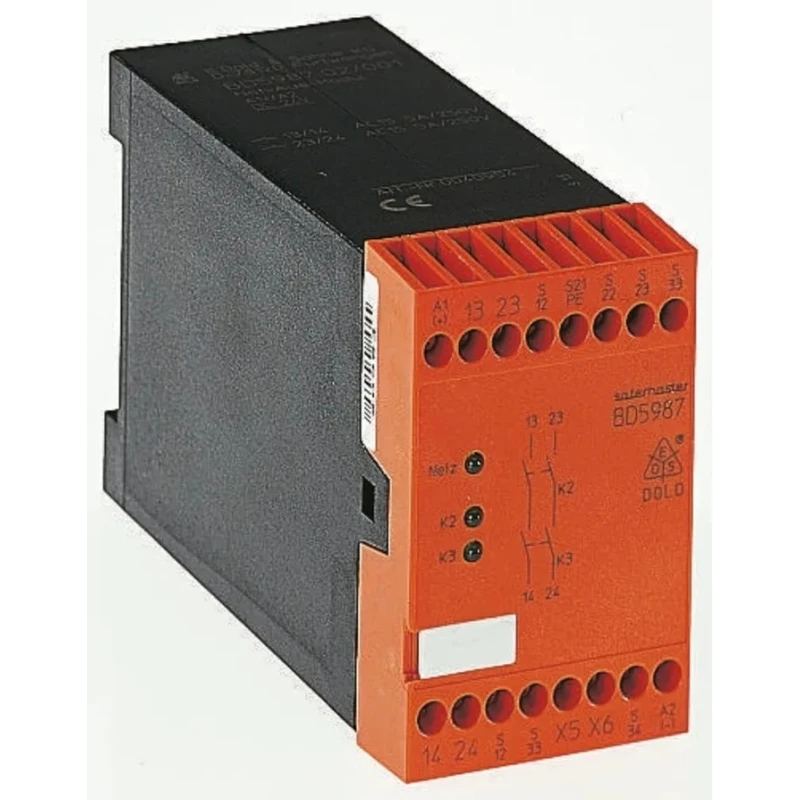

Dold Safety Relay Safety Interlock Switch 24V DC, 2 Safety Contacts, Automatic Reset, DIN Rail Mount BD5987.02/001 DC24V

Dold BD5987.02/001 DC24V Safety Relay Safety Interlock Switch is designed for industrial safety applications requiring reliable emergency stop and interlock functions. With 2 safety contacts and automatic reset, it enables secure and convenient machine control.

This relay is mounted on standard DIN rails and features a coil voltage of 24V DC with a power consumption of 5.5 VA, suitable for integration into various safety circuits. It supports switching capacities up to 24V DC and 250V AC to meet diverse control demands.

Industrial use includes monitoring emergency stop buttons, sliding grill guards, and controlling safety interlock circuits in compliance with international standards such as IEC/EN 62061, EN ISO 13849-1, and EN 60204-1. LED displays on the relay indicate the status of both safety channels, ensuring clear operational feedback.

The device incorporates optional features like cross-fault detection and automatic activation when operational voltage is reached, enhancing fault detection and machine safety integrity. Screw terminals allow robust and reliable electrical connections.

Operating temperature ranges from -15°C to 55°C, enabling usage in a variety of industrial environments. Manufactured in Germany, it is certified under multiple approvals including BG, SUVA, UL, and CSA standards.

Equipped with 2 safety contacts for secure switching. Automatic reset method enhances ease of operation. Designed for DIN rail mounting ensuring easy installation. Supports switching DC voltage of 24V and AC voltage up to 250V.

Power consumption is 5.5 VA ensuring efficient energy use. LED indicators provide status for dual safety channels. Built-in control loop monitors external contactors for safety circuit integrity. Complies with IEC/EN 62061, EN ISO 13849-1 and other international safety standards.

Robust screw terminal type ensures secure wiring. Operating temperature ranges from -15°C to a maximum of 55°C for versatility. This relay is ideal for machine safety in industrial, manufacturing, and automation applications requiring compliance with stringent safety directives.
