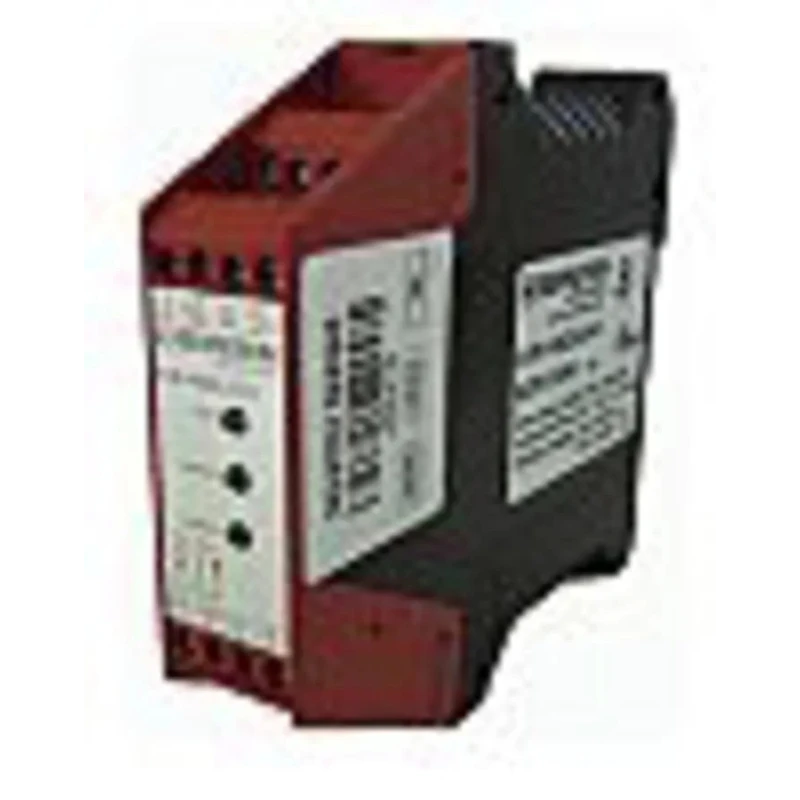

Bernstein AG 24V ac/dc Safety Relay with 4 Safety Contacts, 3 NO/1 NC Contact Configuration, DIN Rail Mount SCR 6075111010

Bernstein AG 6075111010 Safety Relay is a single channel, SCR series safety relay designed to ensure enhanced protection in automation and electrical control systems. It operates at a coil voltage of 24V AC/DC, supporting both AC and DC power supply environments. The device features a contact configuration of 3 normally open (NO) and 1 normally closed (NC) safety contacts alongside 3 auxiliary contacts, enabling comprehensive control circuit integration.

This relay is mounted on DIN rails for convenient installation within industrial electrical panels. The screw terminal type connections provide robustness and reliability for wiring. Its IP40 and IP20 ingress protection ratings make it suitable for standard industrial enclosure applications, protecting the relay against solid objects and limited dust ingress.

Operating temperature range spans from -25°C to 55°C allowing usage in diverse ambient conditions. It switches AC voltages up to 240V and DC voltages up to 24V, with each contact rated for 5 Amperes current, ensuring capability for various automation tasks. The relay complies with stringent EU safety and electromagnetic compatibility directives, carrying certifications such as TÜV and CUL US, and adheres to EN ISO 13849-1 standard for safety-related control systems.

Safety category CAT 4 classification further confirms its suitability for high-risk industrial environments requiring reliable safety measures. The compact build dimensions of 22.5mm length, 99mm width, and 114.5mm height make it space efficient for panel assembly layouts. Manufactured in Germany, it reflects high manufacturing standards and quality assurance.

The relay includes 3 auxiliary contacts to facilitate additional control functions. Designed for DIN rail mounting for easy installation. Equipped with screw terminals ensuring secure and reliable wiring connections. Features IP40 and IP20 protection class ratings, suitable for indoor industrial environments.

Operates reliably within -25°C to 55°C ambient temperature range. Capable of switching 240V AC and 24V DC with a contact current rating of 5 Amperes. Certified to multiple standards including EU directives (2006/42/EG, 2014/30/EU), TÜV, EN ISO 13849-1, and CUL US approvals.

Safety category rated CAT 4 for enhanced industrial safety compliance. Compact dimensions with a length of 22.5mm, width 99mm and height 114.5mm. Manufactured in Germany ensuring premium quality workmanship.

This Bernstein AG safety relay is ideal for industrial automation, manufacturing facilities, and electrical safety control applications requiring reliable contact monitoring and operational safety. Explore the complete range of Safety Relays at EnvMart for integrated safety and automation solutions.
