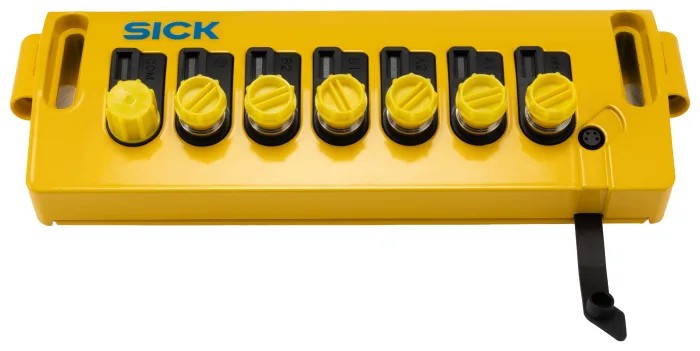

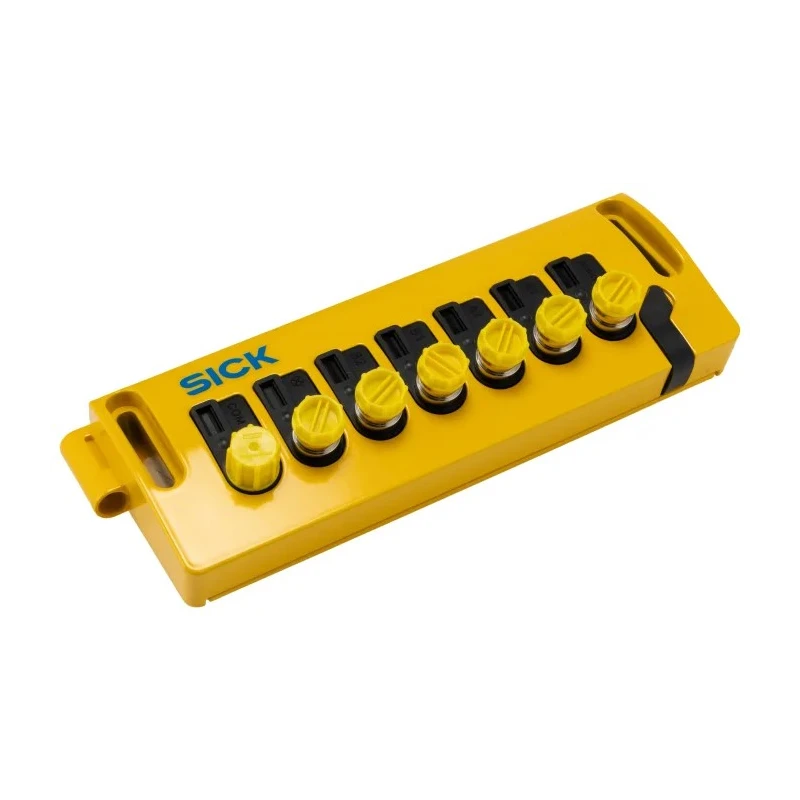

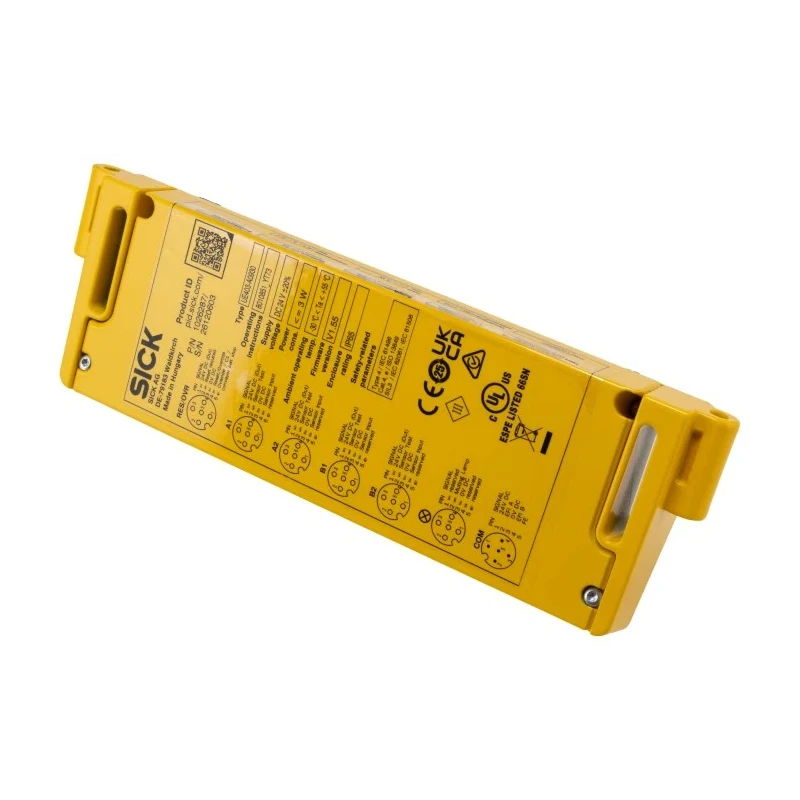

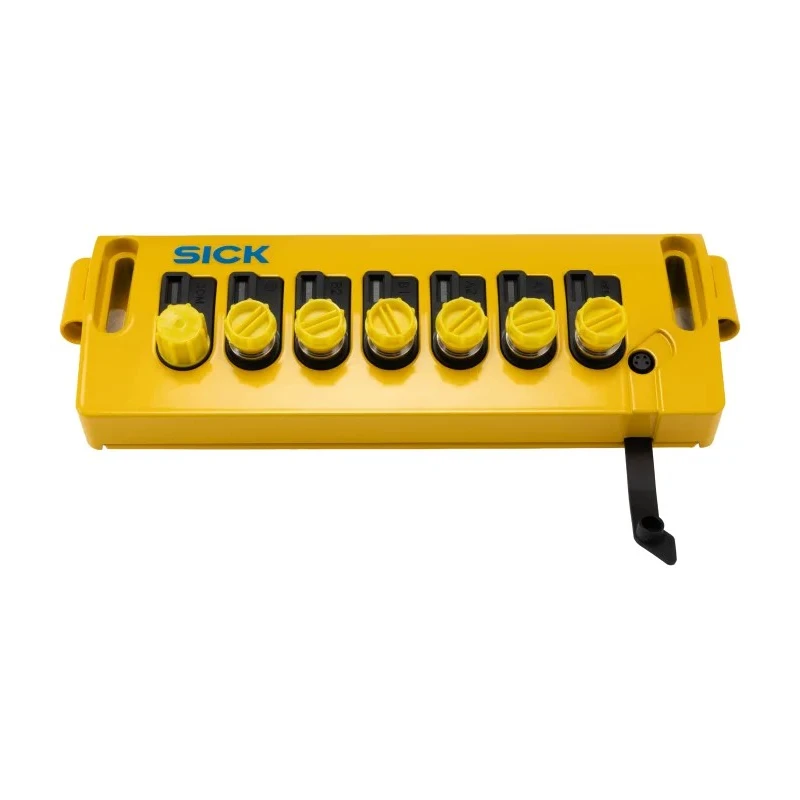

SICK UE403 Series Input/Output Module Safety Relay 24V DC 2W UE403

SICK UE403 Input/Output Module Safety Relay 24V DC 2W is a safety relay designed to provide reliable muting switching amplification for industrial automation. It features override, reset, C1, belt stop, and muting sensor inputs with ON state switching voltage of 24VDC and OFF state voltage of 0VDC. The relay module provides voltage supply for reset, override, muting sensors, and C1 outputs at 24VDC.

This module is mounted on a DIN rail and is intended for use with the M4000 series of light curtains, supporting safety functions in motor control applications and industrial process control systems. Its 5-pin M12 female connector interface ensures secure electrical connections.

Key features include concurrence monitoring, sensor gap monitoring, belt stop, muting with override, monitoring of total muting time, and exit monitoring function. This module helps achieve electrical isolation and signal matching between electronic controls in automation equipment.

The SICK UE403 Safety Relay Module is rated IP65 for protection against dust and water ingress. It is CE certified and UL recognized, fulfilling rigorous safety norms such as IEC 61508, EN 62061, EN ISO 13849, and EN 50178. These certifications make it suitable for deployment in various industrial automation and safety gear applications.

Equipped with a 5-pin M12 female connector for robust interfacing. Includes concurrence monitoring and sensor gap monitoring functions for enhanced safety. Features belt stop and muting with override for reliable operation.

Monitors total muting time and supports exit monitoring function. IP65 rated and certified to UL, CE standards, ensuring durable and compliant performance. Compatible for use with M4000 Series light curtains; connection cables sold separately.

CULus approved and complies with IEC 61508, EN 62061, EN ISO 13849, EN 50178 standards.

This relay module is ideal for industrial process control, motor control, electrical isolation, and signal matching between electronic controls. It is commonly used in manufacturing facilities for safety input/output control conforming to industrial safety standards. The compact design and DIN rail mounting facilitate easy integration into automation panels.
