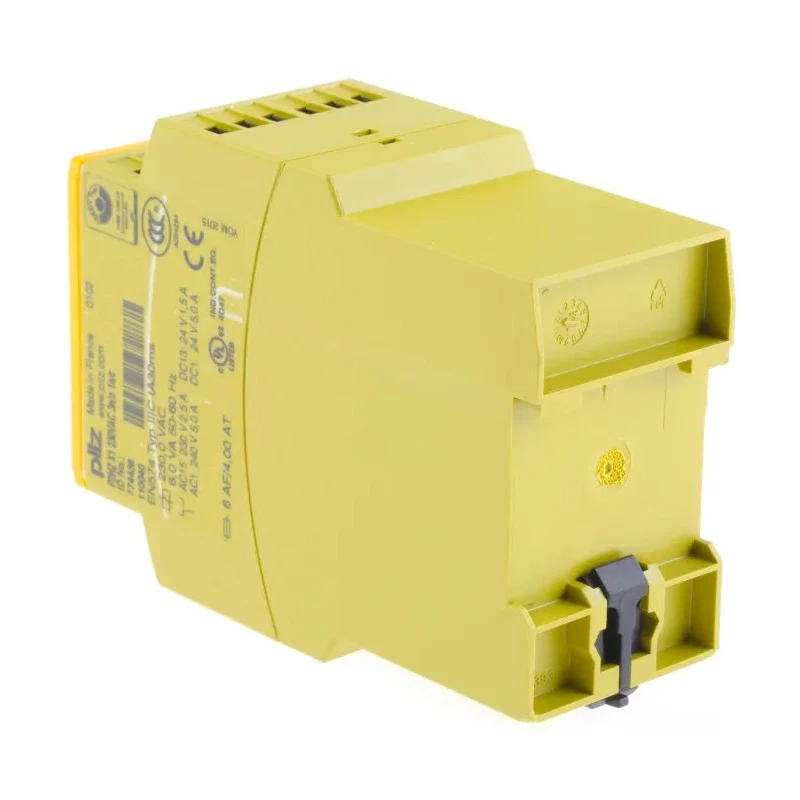

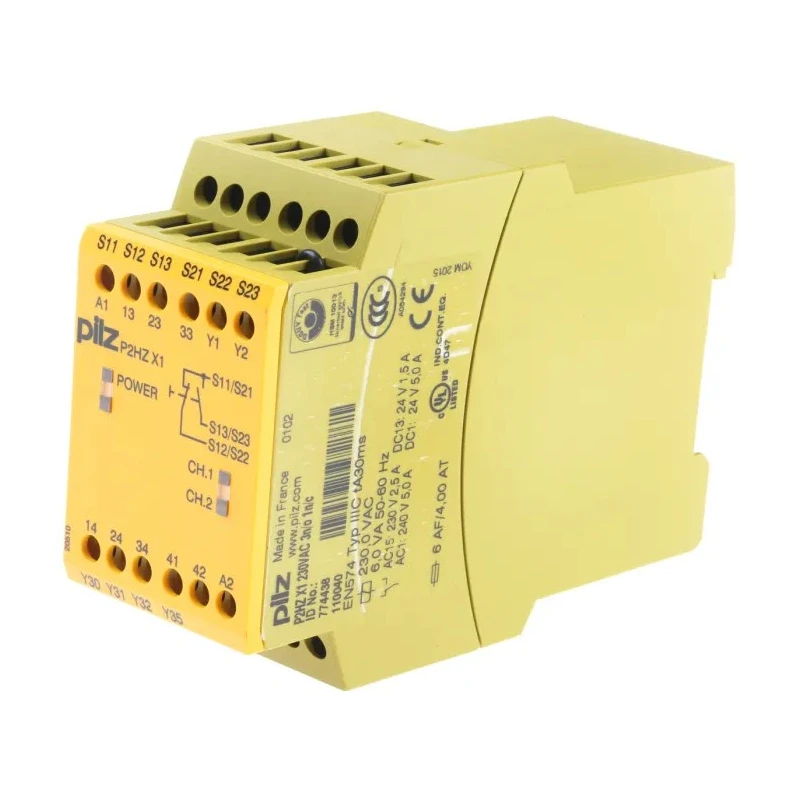

Pilz Safety Relay P2HZ X1 230V AC, 3 Safety Contacts, Manual Reset, DIN Rail Mount P2HZ
Specifications
| Country of Origin | France |
|---|---|
| Brand | Pilz |
| Height | 121mm |
| Length | 101mm |
| Model | P2HZ |
| IP Rating | IP40, IP20, IP54 |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | P2HZ X1 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3 NO/1 NC |
| Minimum Operating Temperature | -10°C |
| Safety Category | CAT 4 |
| Terminal type | Screw |
| Reset Method | Manual |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Contact Current | 5A |
| Safety Contacts | 3 |
| Number of Auxiliary Contacts | 1 |
| Reactivation | The outputs will no re-energise unless both operator elements have been released and then re-operated simultaneously |
Key Features
- Provides manual reset ensuring operator safety after hazardous movement stops.
- Equipped with 3 NO and 1 NC contacts for reliable safety circuit control.
- DIN rail mounting type allows easy installation in control panels.
- Durable screw terminal connections for secure wiring.
- Operates within a temperature range from -10°C to 55°C for versatile environments.
- Compatible with safety standards such as EN 60204-1, EN 954-1 and IEC 61511 SIL 3 compliance.
- IP40, IP20, and IP54 ratings provide protection against dust and splashing water.
- Includes LED indicators for channel status and supply voltage monitoring.
Product Description
Pilz P2HZ Safety Relay model P2HZ X1 operates at 230V AC coil voltage and includes three safety contacts, designed specifically for two hand monitoring type IIIC. This safety relay is tailored to prevent unintended machine operation by detecting if operators have their hands in danger zones during hazardous movements. The device features a manual reset method to enhance control safety after activation.
Constructed for DIN rail mounting, the relay is equipped with screw terminal connections for quick and secure setup in industrial control panels. The housing provides IP40, IP20, and IP54 protection ratings, fitting a variety of installation environments.
It supports a broad operating temperature range from -10°C to +55°C, making it robust for many industrial applications including mechanical and hydraulic presses.
The P2HZ series comes with 3 normally open and 1 normally closed safety contacts rated for 5A contact current, and switching voltages of up to 240V AC and 24V DC, providing flexible use in safety control circuits. LED indicators enable operators to monitor channel switching and supply voltage status clearly.
This safety relay conforms to stringent safety standards including EN 60204-1, EN 954-1, EN (IEC) 62061, EN ISO 13849-1, and IEC 61511 SIL 3, ensuring high reliability and compliance for industrial safety applications.
Typical use cases include mechanical presses, hydraulic presses, and emergency safety circuits compliant with EN 60204-1. Provides manual reset ensuring operator safety after hazardous movement stops. Equipped with 3 NO and 1 NC contacts for reliable safety circuit control.
DIN rail mounting type allows easy installation in control panels. Durable screw terminal connections for secure wiring. Operates within a temperature range from -10°C to 55°C for versatile environments. Compatible with safety standards such as EN 60204-1, EN 954-1 and IEC 61511 SIL 3 compliance.
IP40, IP20, and IP54 ratings provide protection against dust and splashing water. Includes LED indicators for channel status and supply voltage monitoring. Suitable for use in mechanical presses, hydraulic presses, and general safety circuits.
Explore more Safety Relays and industrial automation solutions available in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this safety relay is 230V AC.
It features a contact configuration of 3 normally open (NO) contacts and 1 normally closed (NC) contact.
The dimensions are 121mm in height, 101mm in length, and 45mm in width.
The maximum operating temperature is 55°C.
It supports DIN rail mounting for easy installation in control panels.
It complies with safety standards including EN 60204-1, EN 954-1, and IEC 61511 SIL 3.
The minimum operating temperature is -10°C.
The outputs will not re-energize unless both operator elements have been released and then re-operated simultaneously.
The contact current rating is 5A.
The IP ratings for this model are IP40, IP20, and IP54, providing varying levels of protection against dust and water.
It is suitable for applications such as mechanical presses, hydraulic presses, and general safety circuits.
The switching voltage is up to 240V AC and 24V DC.
