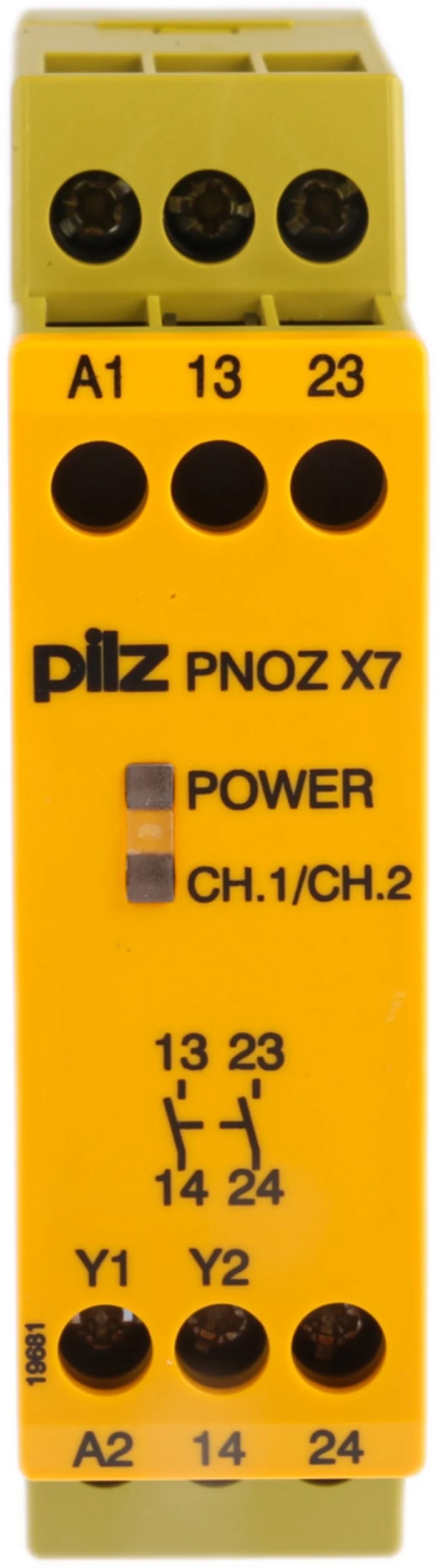

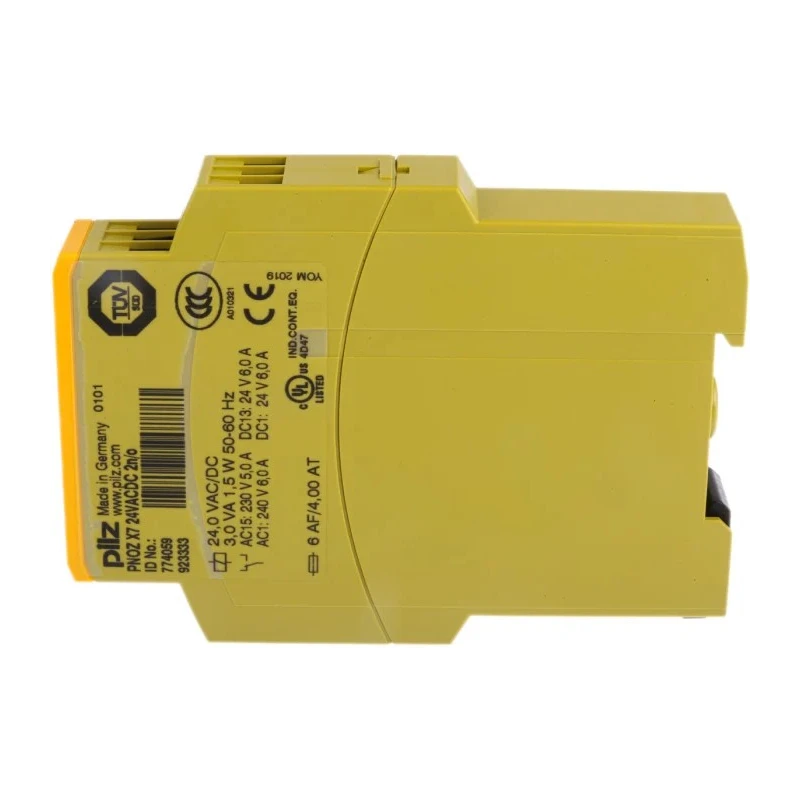

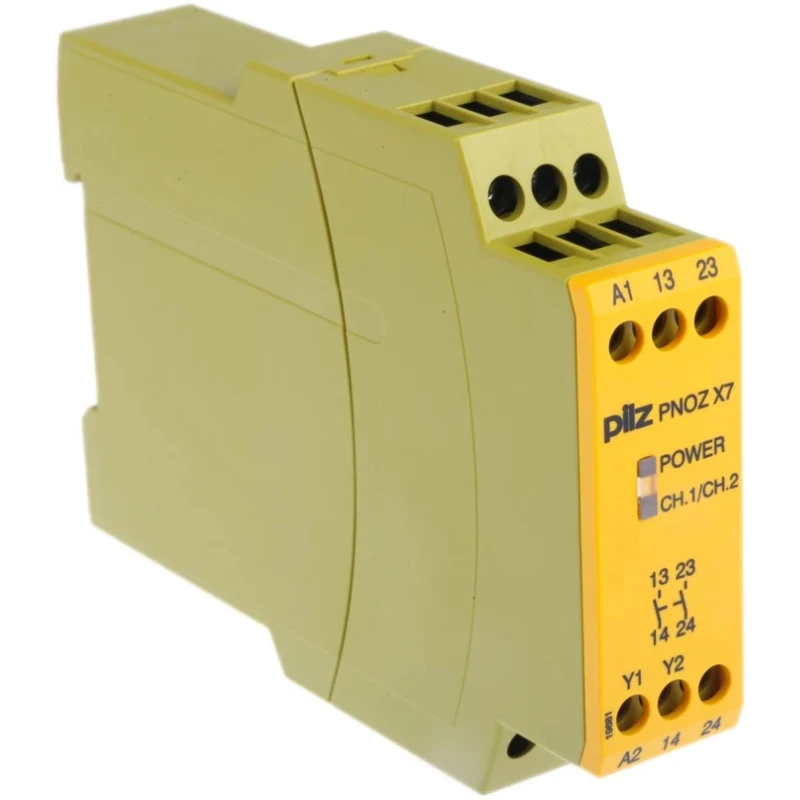

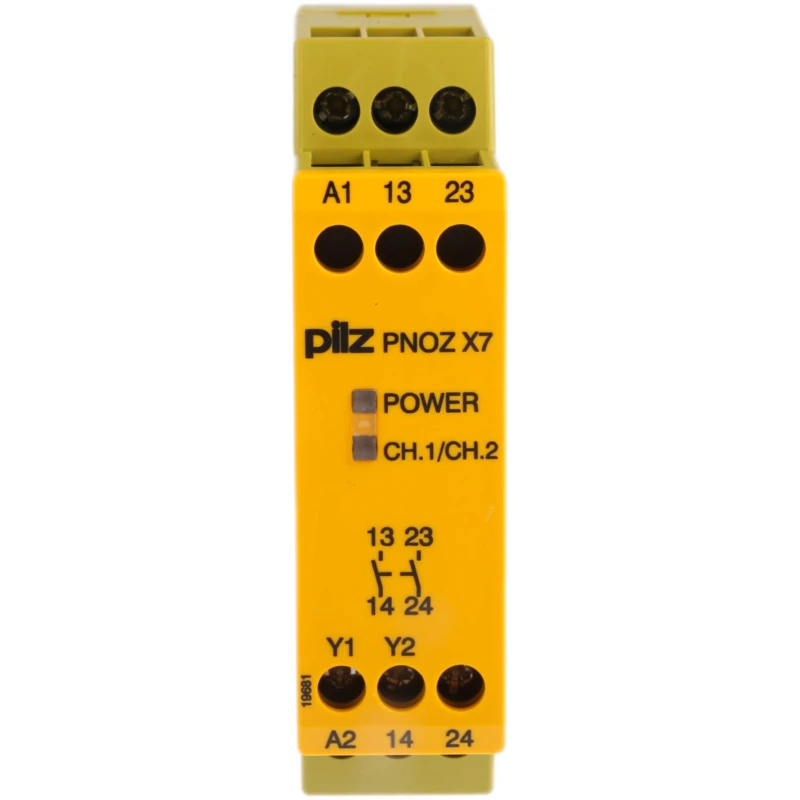

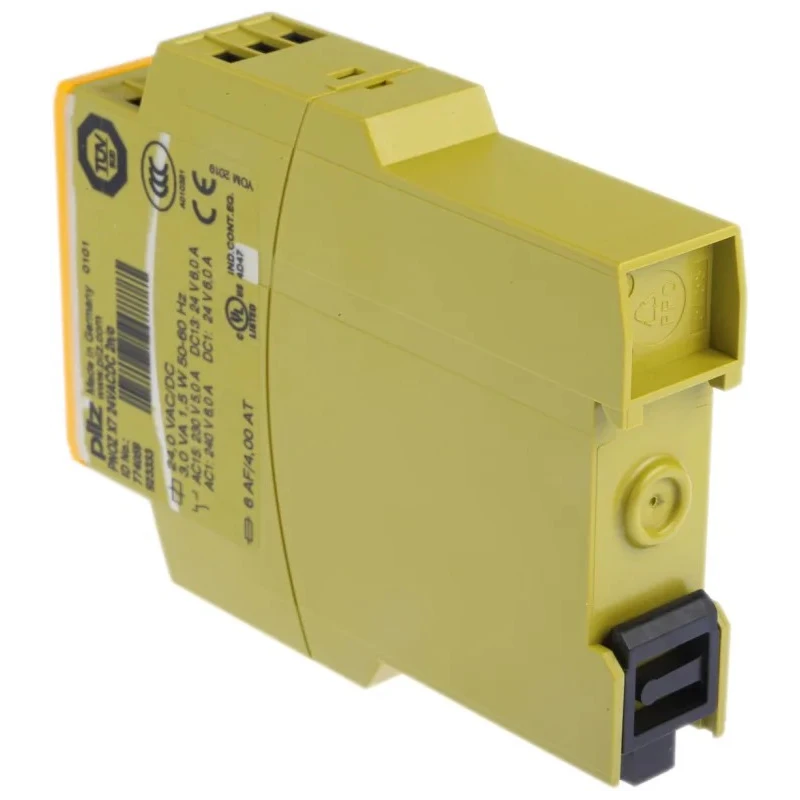

Pilz PNOZ X7 24V ac/dc Safety Relay with 2 Safety Contacts and 1 Auxiliary Contact 774059

Pilz 774059 PNOZ X7 is a 24V ac/dc safety relay designed for reliable and safe interruption of electrical circuits in industrial applications. It includes 2 normally open safety contacts and 1 auxiliary contact, providing redundancy and safety compliance for environments with potential hazards.

The relay features LED status indication for monitoring supply voltage and includes built-in automatic self-testing during each power cycle, ensuring maximum operational safety and dependability. DIN rail mounting is standard, simplifying integration into industrial control systems.

This safety relay complies with multiple international standards such as EN 61000-6-2, EN 60947-4-1, EN 954-1, EN 60204-1, and IEC 60204-1, making it suitable for rigorous industrial applications. It operates effectively between temperatures of -10°C and 55°C, accommodating diverse environmental conditions.

Applications include emergency stop buttons, reset buttons, and external relay or contactor feedback loops. The device’s robust design offers protection with IP ratings of IP20, IP40, and IP54 depending on installation conditions. Its coil voltage is compatible with 24V ac or dc supplies.

The relay supports switching voltages up to 230V ac and 24V dc with a maximum contact current of 6A. Its compact dimensions of 121mm height, 87mm length, and 22.5mm width make it adaptable for various industrial control panels.

This product is ideal for use in automotive, manufacturing, conveyor systems, and general machinery safety shutoff controls, where quick and reliable power cut-off is critical. The device is not suitable for non-contact barriers due to the lack of dynamic start initiation.

Features 2 normally open safety contacts for secure operation. Includes 1 auxiliary contact for additional signal conditioning. Equipped with LED status indication for supply voltage monitoring. Supports DIN rail mounting for easy installation.

Automatic self-testing on each power-up ensures reliability. Operating temperature range from -10°C to 55°C for industrial environments. Designed to EN and IEC safety standards including EN 60947 series. Suitable for emergency stop and reset button control applications.

Contact current rating of 6A with switching voltages of 24V dc and 230V ac. Explore the full range of safety relays by Pilz and other products in the Safety Relays category on EnvMart for industrial automation and control solutions.
