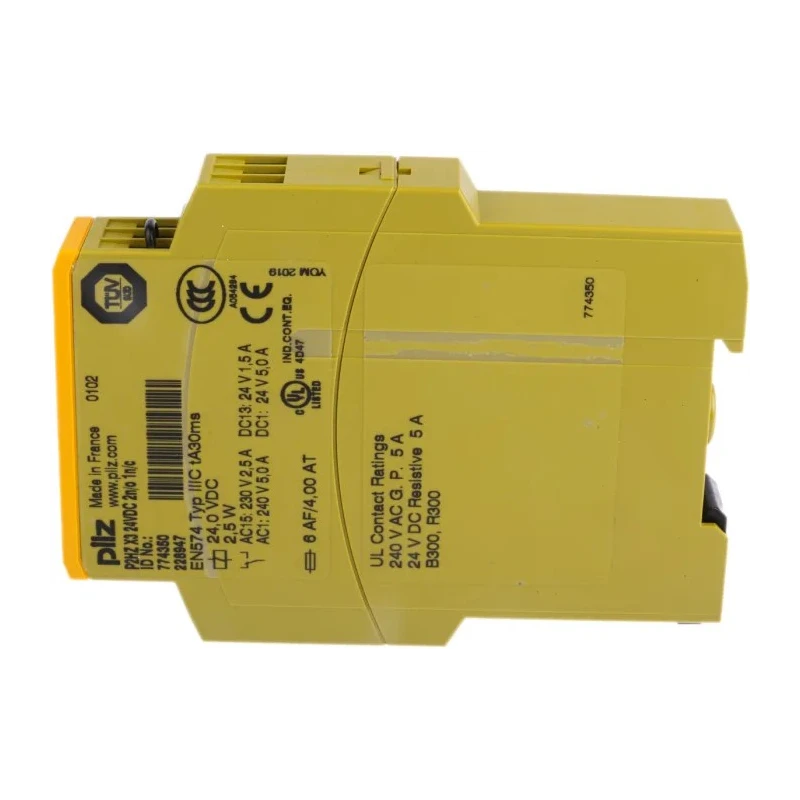

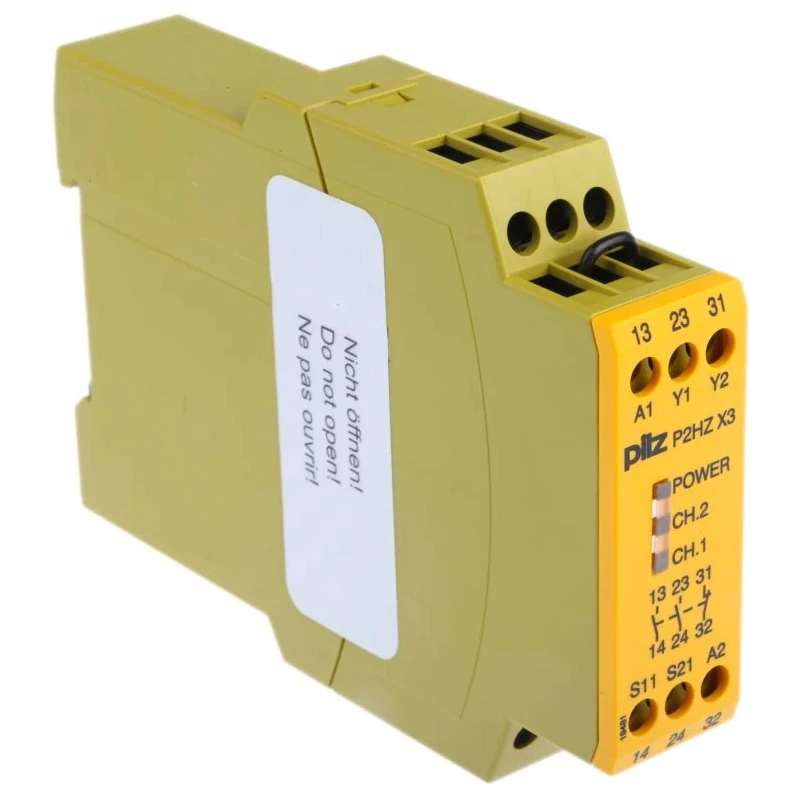

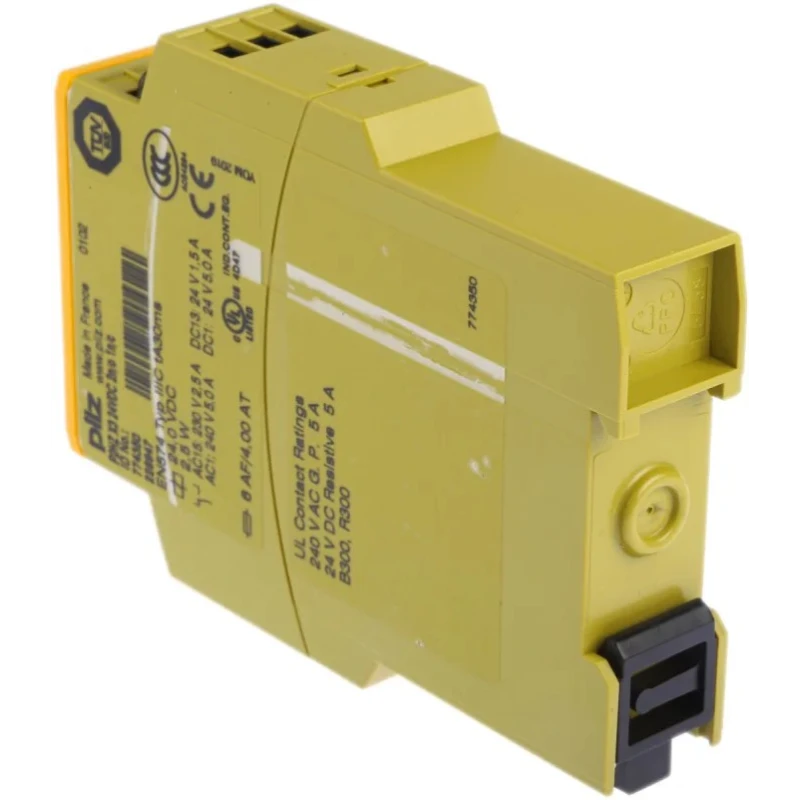

Pilz 24V DC Safety Relay 2 Safety Contacts, 1 Auxiliary Contact, DIN Rail Mount, Power Consumption 2.5W P2HZ X3

Pilz P2HZ X3 24V DC Safety Relay is a specially designed safety relay featuring 2 safety contacts and 1 auxiliary contact for industrial safety applications. It is tailored for two handed control operations, providing protection by ensuring the operator’s hands are outside hazardous zones during machine movements. The relay uses positive guided contacts and a monitored reset method to maintain safe control in all scenarios.

This device supports single or dual channel input operation, making it ideal for controlling press controllers and complex safety circuits. DIN rail mounting capability and a robust IP54 rated enclosure offer durability and ease of installation. The relay consumes only 2.5W of power and utilizes screw terminal connections for secure wiring.

Safety features include circuit self-monitoring to prevent faulty operations due to relay failures, coil defects, or contact welding. This enhances machine safety by blocking further press strokes if faults occur. It operates within a temperature range of -25°C to 55°C and withstands industrial environmental conditions.

Standards compliance includes EN 60204-1, EN ISO 13849-1, IEC 61511 SIL 3 among others, ensuring conformity to international safety requirements. This relay is suitable for use in mechanical presses, hydraulic presses, and general safety circuits, offering reliable protection and operational integrity in industrial manufacturing and automation environments.

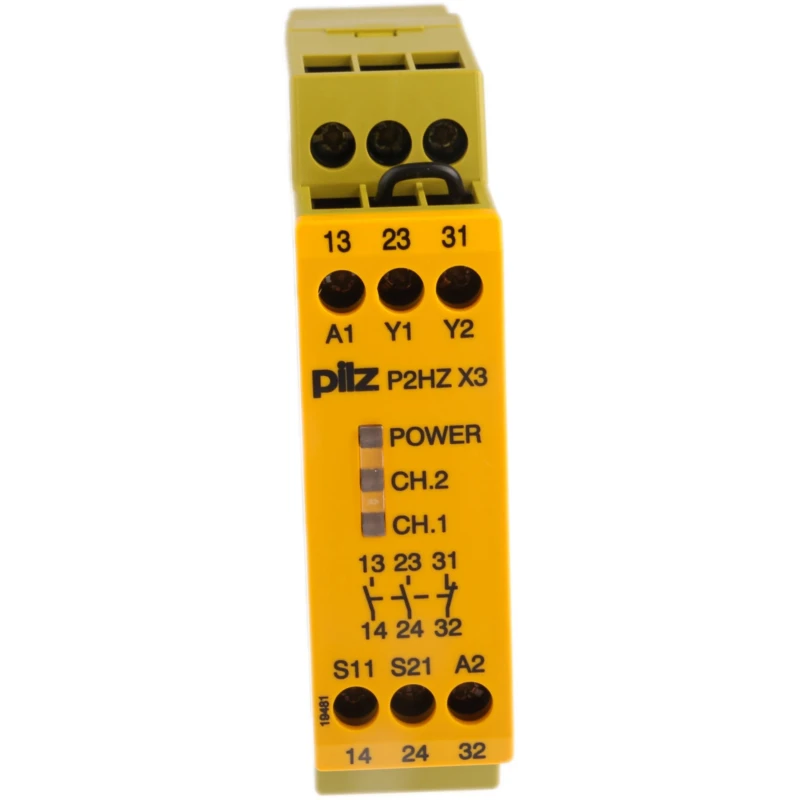

Designed specifically for two handed control and safety operation. Includes LED indicators for channel status and supply voltage monitoring. Suitable for DIN rail mounting with robust construction for extended service life.

Features positive guided relay outputs to ensure safety circuit integrity. Provides self-monitoring to maintain safety function even in case of component failure. Wide operating temperature range from -25°C to 55°C ensures reliability in harsh environments.

IP54 rated enclosure protects against dust and water splashes. Compliant with multiple safety standards including EN ISO 13849-1 and IEC 61511 SIL 3. Applications include mechanical and hydraulic presses and general safety circuit implementations.
