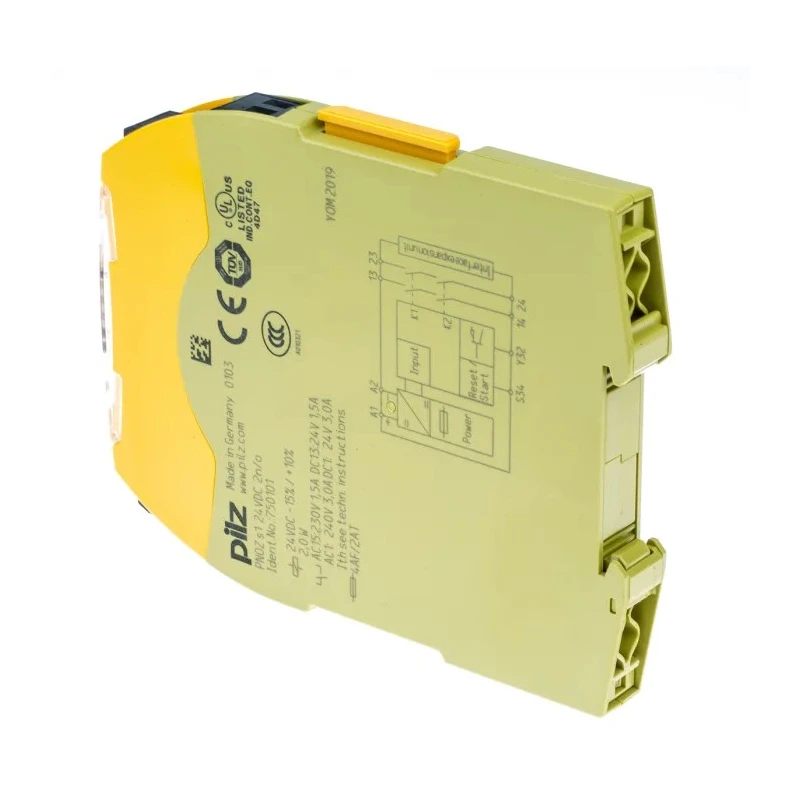

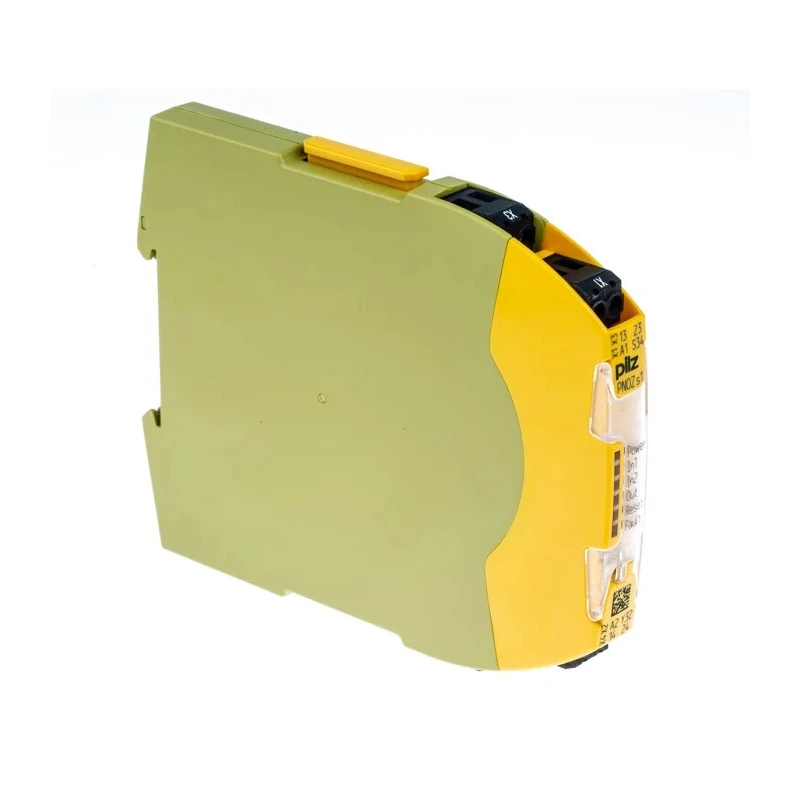

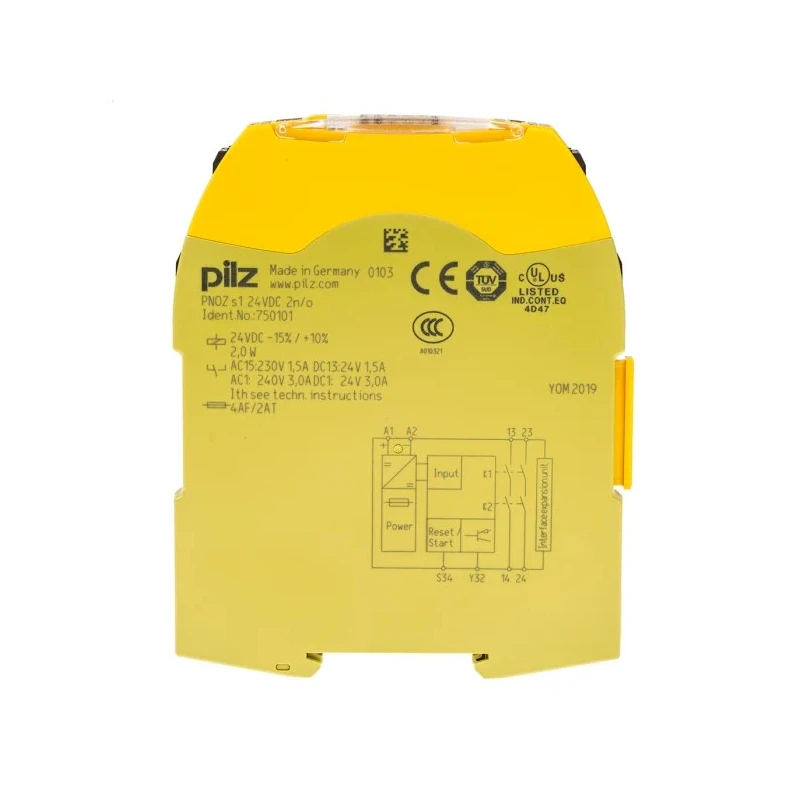

Pilz PNOZ s1 24V DC Safety Relay with 2 Safety Contacts 2NO, DIN Rail Mount 2W Power Consumption 750101

Pilz 750101 PNOZ s1 Safety Relay is a 24V DC powered device designed for industrial safety automation and control. This relay includes 2 safety contacts arranged as 2 normally open (NO) contacts and supports both automatic and manual reset methods. It mounts easily on standard DIN rails and consumes only 2W of power, making it energy efficient.

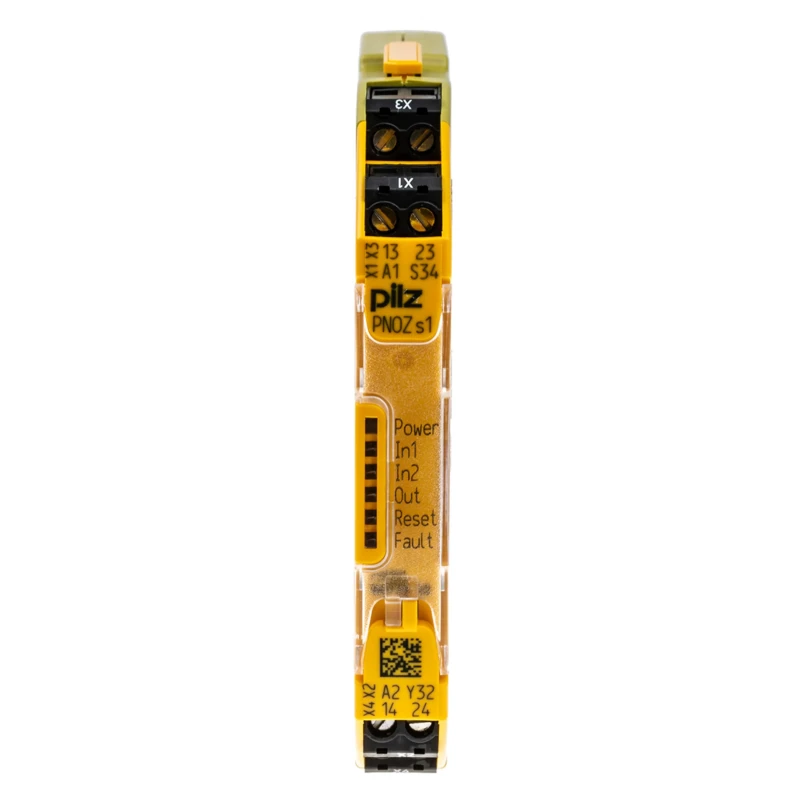

The Safety Relay incorporates advanced safety functions such as self-monitoring that maintains effective protection even in component failure situations. The LED display facilitates monitoring by indicating supply voltage, input statuses of both channels, switch status of safety contacts, reset circuit state, and error conditions. This allows for easy diagnostics and proactive maintenance.

Operating in a temperature range from -10°C to 55°C, and featuring IP20, IP40, and IP54 protection ratings, this relay withstands harsh industrial environments. It complies with several international safety standards including EN 60947-5-1, EN ISO 13849-1, EN 954-1, and VDE 0113-1, ensuring high reliability and regulatory compliance.

Typical applications include emergency stop pushbuttons, safety gate monitoring switches, and reset functions in manufacturing, automation, and other industrial systems where safety circuit monitoring and control are critical.

Features 2 normally open (NO) safety contacts for secure circuit control. Mounts on DIN rails for convenient installation. Power consumption is 2 watts for efficiency. Reset options include automatic and manual methods. Self-monitoring with reliable safety functions during faults.

LED indicators for status and error diagnostics. Operates reliably between -10°C and 55°C. Compliance with important safety and electromagnetic standards. IP20, IP40, and IP54 rated for protection in industrial environments.

Designed for emergency stop and safety gate limit switch applications. Explore more safety automation components from Pilz and related product categories with EnvMart for your industrial safety solutions.
