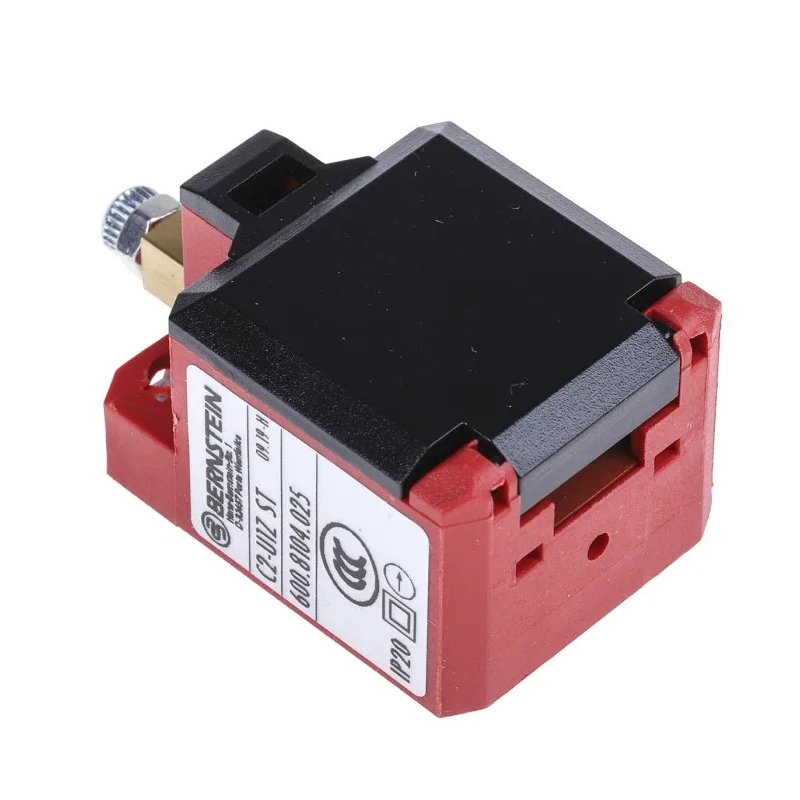

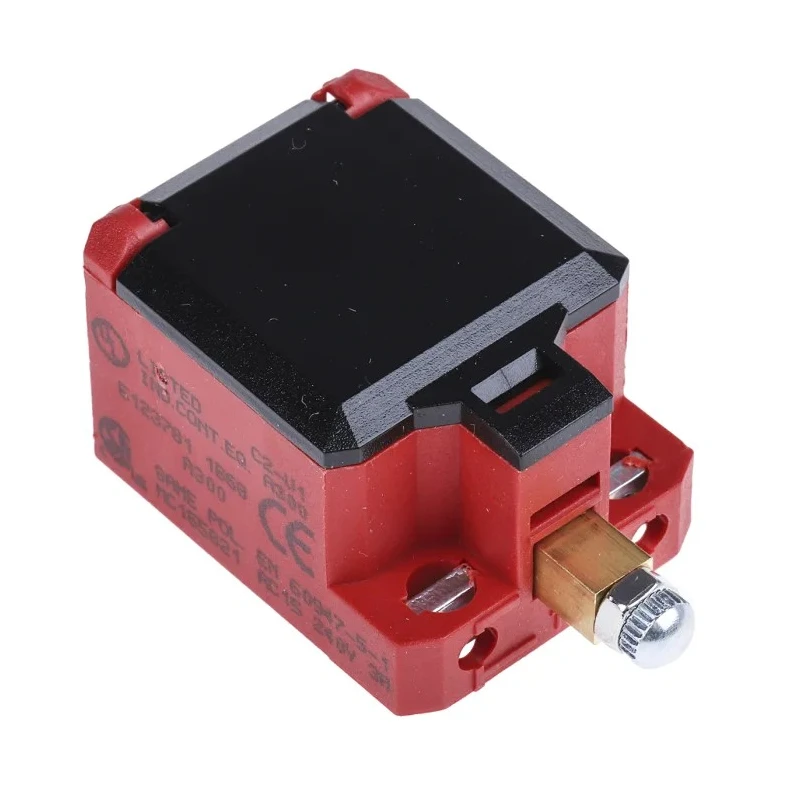

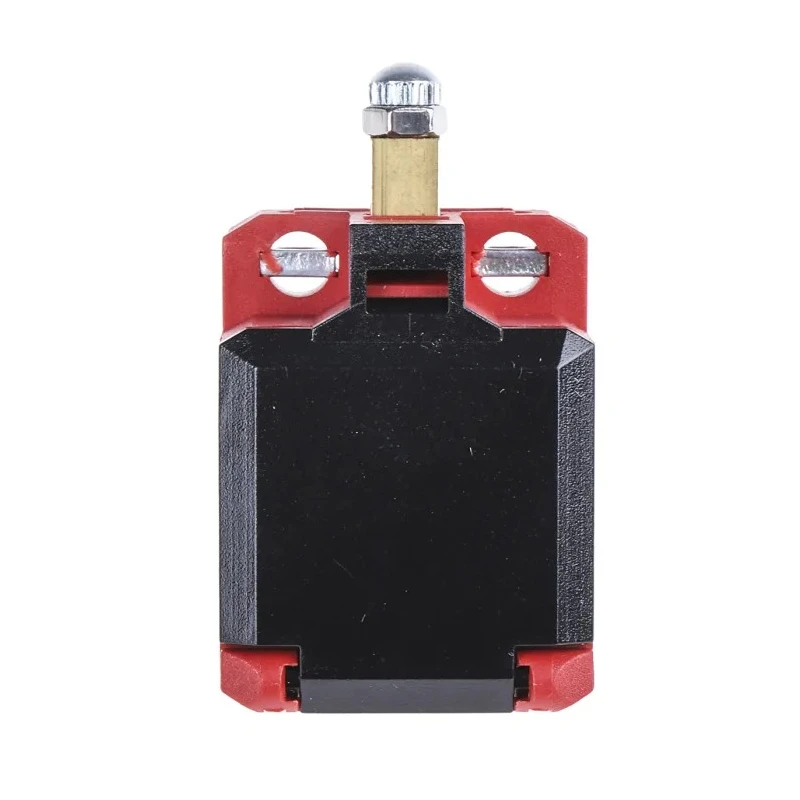

Bernstein AG C2 Series Plunger Interlock Switch 1 NO/1 NC IP20 Glass Reinforced Plastic Housing 250V AC 10A IP20
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Bernstein AG |
| Length | 44mm |
| Model | IP20 |
| Depth | 21mm |
| IP Rating | IP20 |
| Width | 26mm |
| Housing Material | Glass Reinforced Plastic |
| Series | C2 |
| Maximum Operating Temperature | 80°C |
| Mounting Orientation | Front |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | 30°C |
| Switching Current | 10A |
| Terminal type | Screw |
| Standards/Approvals | UL, CSA, RoHS |
| Operating Force | 2.5N |
| Mechanical Life | 3000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Conduit Entry | 8.5 x 3.5 mm |
Key Features
- The plunger actuator type ensures precise and positive operation.
- Glass reinforced plastic housing offers durable insulation and mechanical protection.
- IP20 protection rating suitable for indoor environments.
- Rated for switching voltages of 250V AC/DC and current up to 10A.
- Mechanical life rated at 3,000,000 cycles for long-term reliability.
- Compact dimensions of 44mm length, 26mm width, and 21mm depth.
- Operating temperature range from 30°C minimum to 80°C maximum.
- Suitable for front mounting with screw terminal connections.
Product Description
Bernstein AG IP20 model C2 Series plunger interlock switch is engineered for reliable safety functions in various electrical and automation systems. The switch uses a plunger actuator type offering snap action contact behavior with 1 normally open (NO) and 1 normally closed (NC) contact configuration for versatile control.
Its housing is constructed from glass reinforced plastic, delivering robust mechanical protection and electrical insulation suitable for industrial environments. Rated operating voltages include up to 250 volts AC and DC with a maximum current capacity of 10 amperes, supporting a wide range of machinery and control circuits.
The IP20 ingress protection rating indicates suitability for indoor use, protecting against finger contact and foreign objects greater than 12mm in size. The switch features a long mechanical life rated at 3 million cycles ensuring durability under repeated operation.
Compact form factor with dimensions 44mm x 26mm x 21mm facilitates installation in tight spaces. Mechanical operating force is 2.5 Newtons, allowing for sensitive actuation. Mounting is designed for front orientation with screw-type terminals for secure wiring.
This interlock switch meets UL, CSA, and RoHS certifications, confirming compliance with recognized safety and environmental standards. Manufactured in Germany, reflecting stringent quality and engineering standards. Ideal for use in industrial machinery, electrical panels, automation equipment, and safety interlock applications requiring precise and reliable switching.
Browse the extensive range of industrial safety and limit switches available at EnvMart to find components that match your application requirements.
Explore more products in our Safety Interlock Switch category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for switching voltages of 250V AC/DC and a maximum current capacity of 10A.
The mechanical life is rated at 3,000,000 cycles, ensuring long-term reliability under repeated operation.
This model has compact dimensions of 44mm in length, 26mm in width, and 21mm in depth.
It uses a plunger actuator type, which provides snap action contact behavior.
The switch has an IP20 rating, indicating it is suitable for indoor environments and protects against finger contact and foreign objects greater than 12mm in size.
The operating temperature range is from a minimum of 30°C to a maximum of 80°C.
It is designed for front mounting with screw terminal connections for secure wiring.
It meets UL, CSA, and RoHS certifications, confirming compliance with recognized safety and environmental standards.
The contact configuration includes 1 normally open (NO) and 1 normally closed (NC) contact.
The housing is constructed from glass reinforced plastic, providing mechanical protection and electrical insulation.
The mechanical operating force is 2.5 Newtons, allowing for sensitive actuation.
It is manufactured in Germany, reflecting stringent quality and engineering standards.
