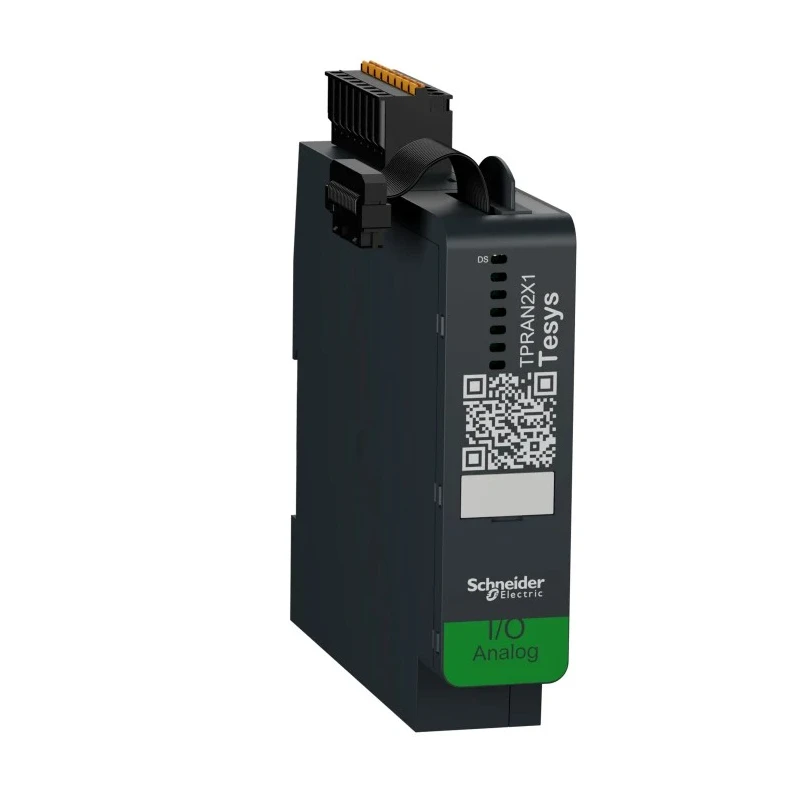

Schneider Electric TPRAN Series Input/Output Module 2 Inputs 1 Output 24V DC TPRAN2X1

Schneider Electric TPRAN2X1 Input/Output Module is an analog IO device designed for use with the TeSys Island system to provide sophisticated monitoring and control functions. Operating at 24V DC, this device features 2 analog inputs and 1 configurable analog output supporting voltage, current, and temperature measurements and controls.

Compatible exclusively with the TPRBC bus coupler, the module offers isolated analog inputs with 15-bit plus sign resolution for precise signal acquisition. The single isolated analog output has selectable ranges including 4...20 mA, 0...20 mA, 0...10 V, and ±10 V with 12-bit or 11-bit resolution, enabling versatile control signal transmission.

The module is designed for DIN rail mounting and includes a spring terminal connection for secure wiring. It features a status LED that uses green or red light to provide clear local feedback on operational status, supporting safe and reliable automation process management.

With a maximum power dissipation of 0.5 W and current consumption of 160 mA, it is energy efficient while delivering precise control. Certifications to UL and CSA standards ensure the module meets quality and safety requirements for industrial environments.

TeSys Island modules like the TPRAN2X1 enable digitized, object-orientated load management compliant with Industry 4.0 principles. They facilitate faster machine engineering, simplified system configuration, and seamless integration with third-party automation systems via various fieldbuses including EtherNet/IP, Modbus TCP, PROFINET, and PROFIBUS.

Ideal for industrial, manufacturing, process control, and automation applications, this module contributes to smarter, reliable machine control handling electrical loads up to 80 A AC-3. Package contents include the Input/Output Module only.

Two isolated analog inputs providing accurate voltage, current, and temperature sensing. One isolated, configurable analog output with multiple selectable ranges. DIN rail mountable with spring terminal connections for robust installation.

Industry standard UL and CSA certifications for safety compliance. Compact dimensions: Width 25 mm × Depth 118 mm × Height 114 mm. Operational only when used with the TPRBC bus coupler for fieldbus connectivity. Explore Schneider Electric TeSys Island range on EnvMart for advanced industrial automation components.
