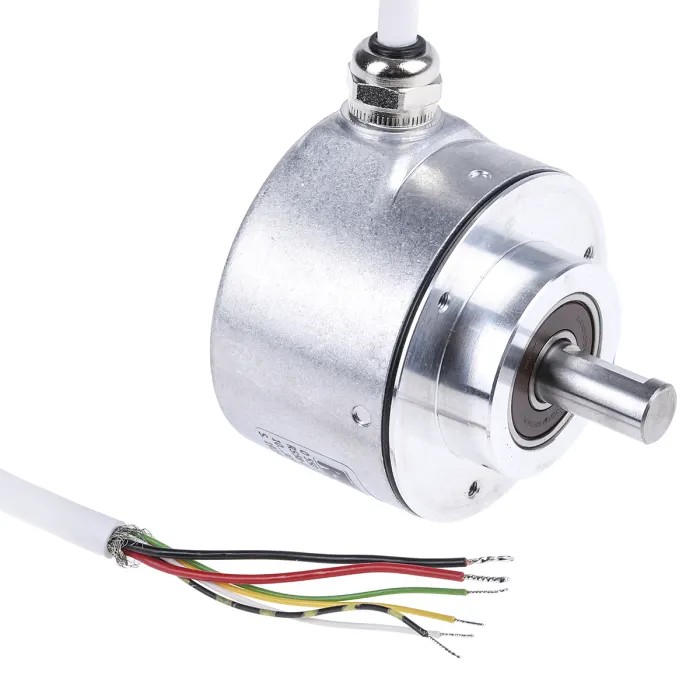

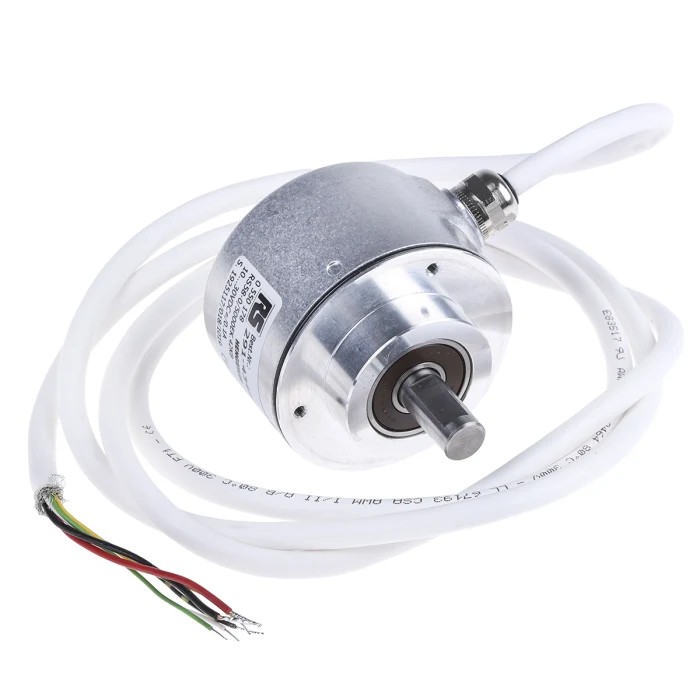

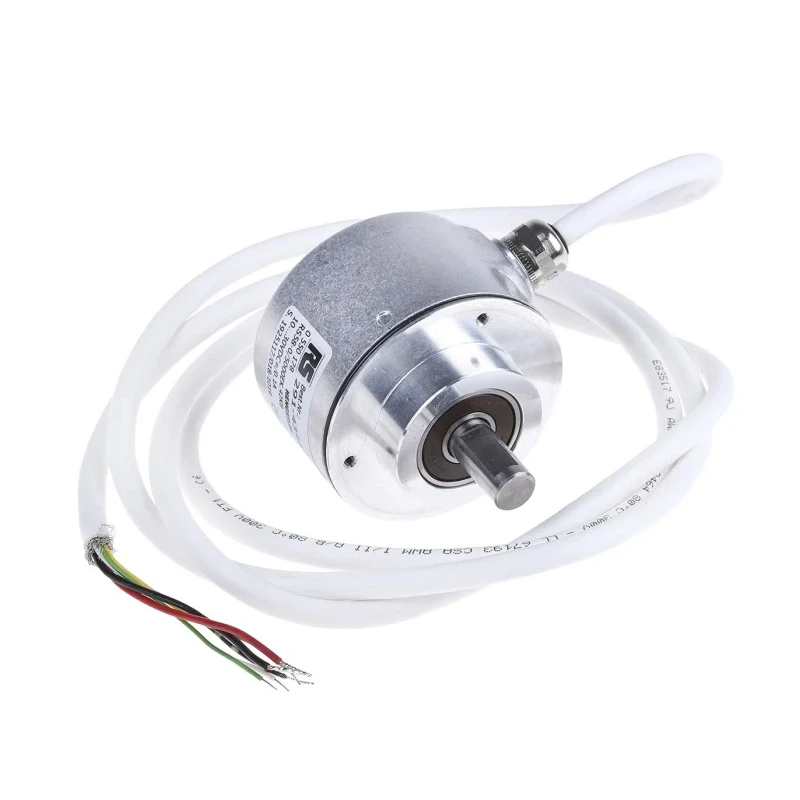

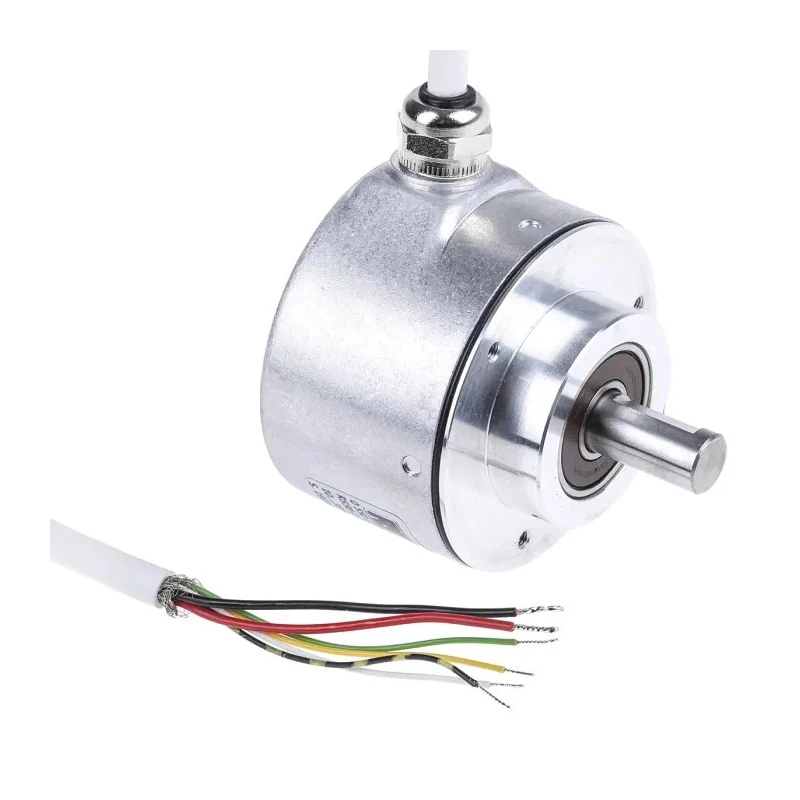

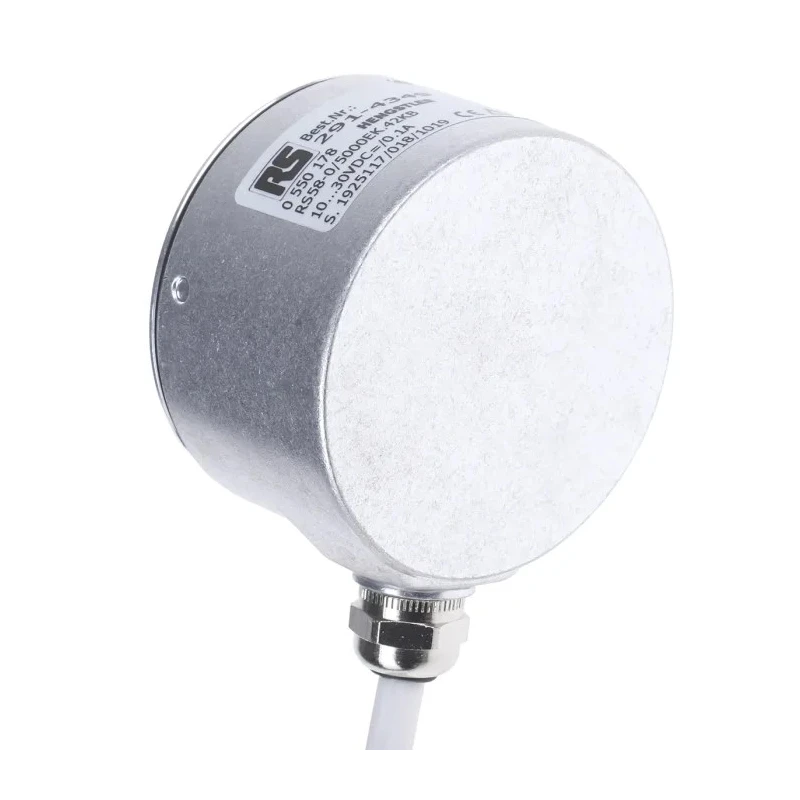

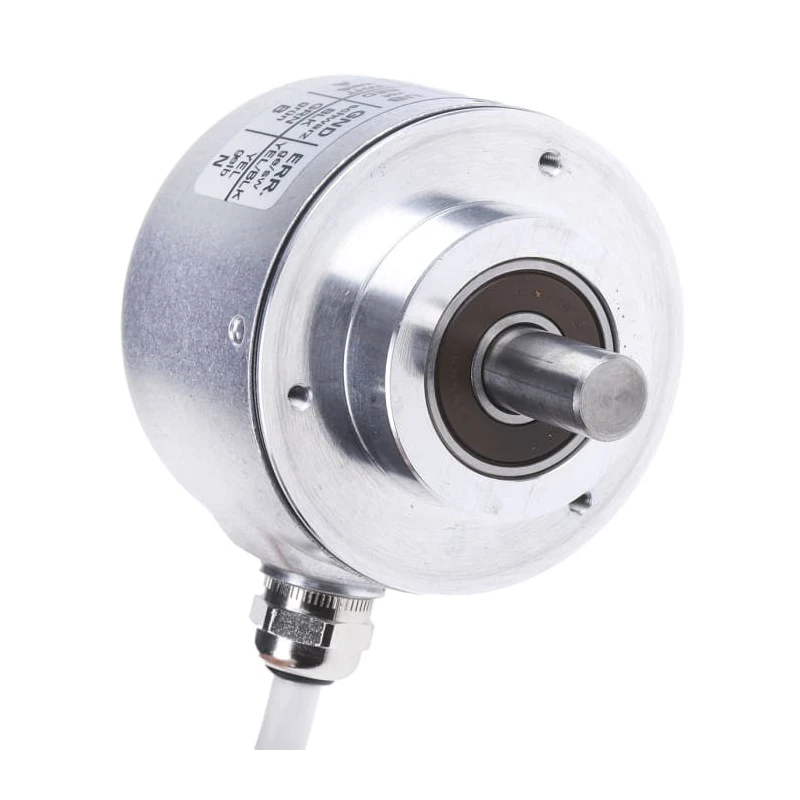

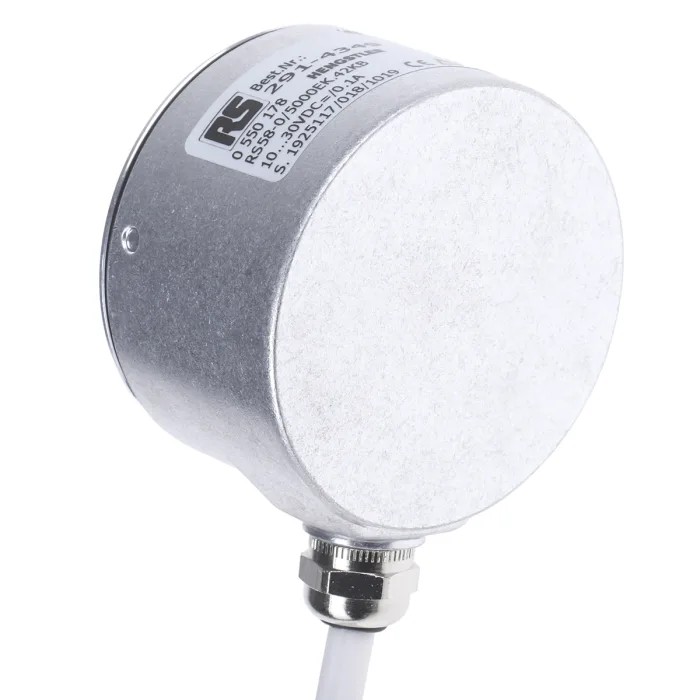

Kubler RI58-O Series Incremental Encoder 30V dc 5000 ppr Push Pull Signal Solid Shaft 10 mm RS0550178

Free Delivery in India | Lowest Global Shipping Charges

Kubler RI58-O Series Incremental Encoder 30V dc 5000 ppr Push Pull Signal Solid Shaft 10 mm RS0550178

Name: Kubler RI58-O Series Incremental Encoder 30V dc 5000 ppr Push Pull Signal Solid Shaft 10 mm RS0550178
Brand: Kubler
SKU: 181571
Price: 439.4 USD
Availability: InStock



Category Incremental Encoder Brand Kubler Condition New

Specifications

Country of Origin	Germany
Brand	Kubler
Model	RS0550178
IP Rating	IP64, IP65
Mount Type	Flange
Series	RI58-O
Overall Width	50mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Shaft Diameter	10mm
Overall height	50mm
Switching Frequency	200kHz
Shaft Type	Solid
Terminal type	Cable
Pulses per Revolution	5000ppr
Standards/Approvals	CE, UL
Maximum Supply Voltage	30V dc
Overall Depth	58mm
Encoder Technology	Incremental
Maximum Revolutions	10000rpm
Output Signal Type	Push Pull
Encoders	OptoAsic technology for greater reliability
Pulse shape	Square wave, 1:1 duty cycle
Kubler Incremental Encoder, 5000 ppr, Push Pull SignalBrand	Kubler

Key Features

High reliability incremental encoder with OptoAsic technology.
Operates at a maximum speed of 10000 rpm.

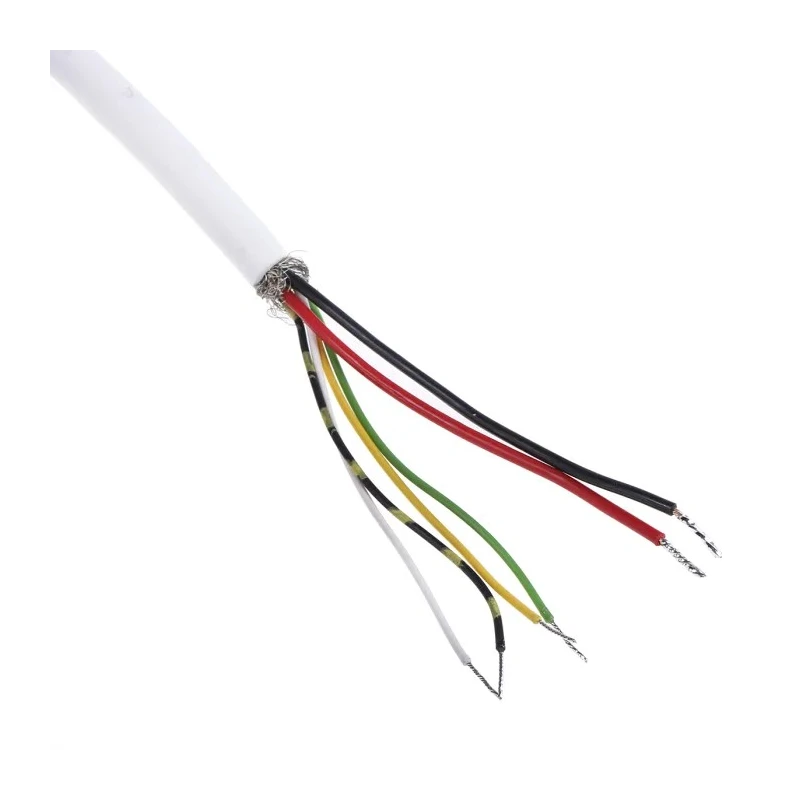

Features radial cable termination and flange mount type.
Designed with IP64 and IP65 ingress protection ratings.
Suitable for industrial motion control sensor applications.
Operating temperature ranges from -10°C to 70°C.

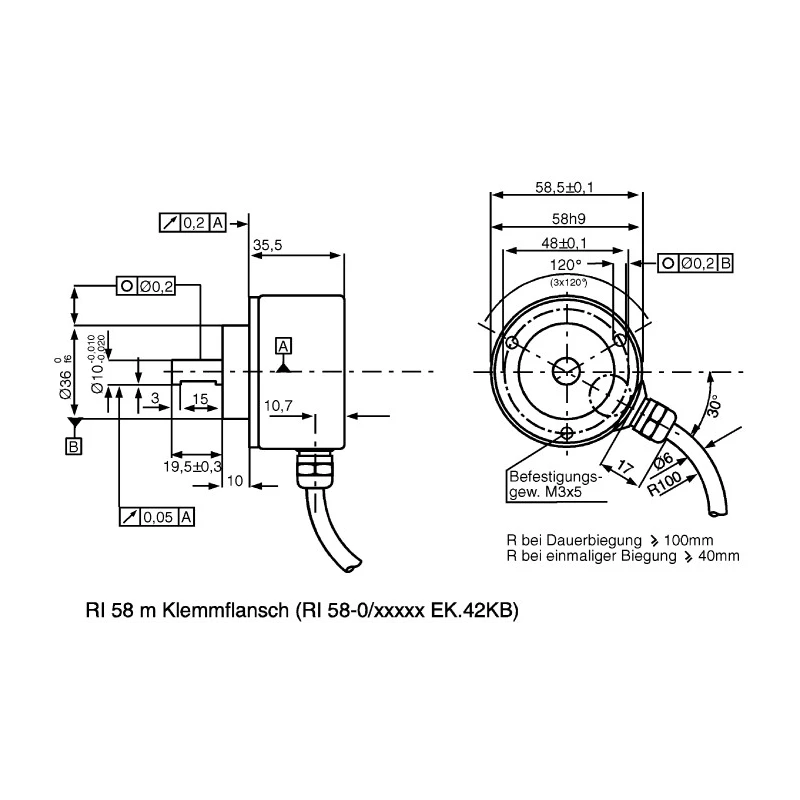

Overall dimensions 58mm depth, 50mm height, and 50mm width.
Complies with CE and UL standards for safety and quality.

Product Description

Hengstler RS0550178 is an advanced incremental encoder from the RI58-O series designed for precision motion control applications. Operating at 30V dc, it delivers high-resolution feedback with 5000 pulses per revolution through a push pull type output signal. The encoder features a robust solid shaft of 10 mm diameter coupled with OptoAsic technology for enhanced reliability and accuracy.

This encoder supports a maximum rotational speed of 10000 rpm and is built with radial cable termination and a flange mount, facilitating straightforward installation and durability. It offers ingress protection ratings of IP64 and IP65, making it suitable for challenging industrial environments requiring dust and water resistance.

The pulse output is a square wave with a 1:1 duty cycle, ensuring clean signal output critical for precise positioning and speed measurement. Its operating temperature range spans from -10°C to 70°C, broadening its usability in various industrial and automation contexts.

With overall dimensions of 58mm depth, 50mm height, and 50mm width, the encoder is compact yet engineered for durable operation. It meets CE and UL safety standards, reflecting its compliance with international quality and safety requirements.

Manufactured in Germany, the Hengstler RS0550178 encoder is an ideal choice for industrial motion control sensor needs, including manufacturing automation, robotics, and process control environments requiring dependable position and speed feedback.

High reliability Incremental Encoder with OptoAsic technology. Operates at a maximum speed of 10000 rpm. Features radial cable termination and flange mount type. Designed with IP64 and IP65 ingress protection ratings. Pulse shape is a square wave with a 1:1 duty cycle.

Suitable for industrial motion control sensor applications. Operating temperature ranges from -10°C to 70°C. Overall dimensions 58mm depth, 50mm height, and 50mm width. Complies with CE and UL standards for safety and quality.

Country of origin is Germany. Explore more from our comprehensive selection of industrial sensors and automation control products at EnvMart.
