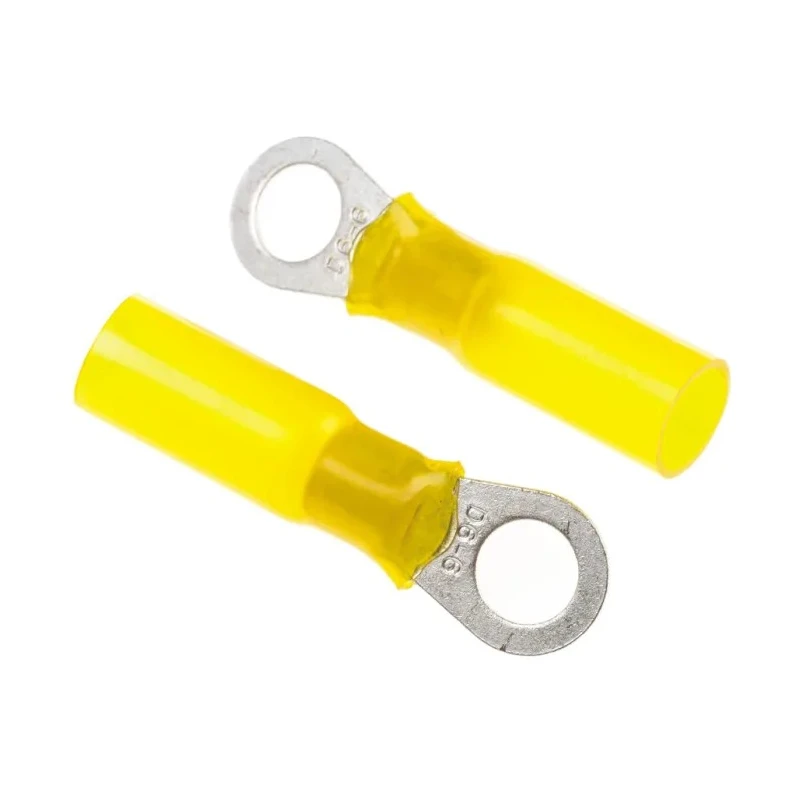

RS PRO DuraSeal Insulated Crimp Ring Terminal, M6 12 - 10 AWG Nylon Yellow DR-4-60
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | RS PRO |
| Colour | Yellow |
| Model | DR-4-60 |
| Insulation | Insulated |
| Overall Length | 41.5mm |
| Contact Material | Copper Alloy |
| Series | DuraSeal |
| Maximum Operating Temperature | 125°C |
| Insulation Material | Nylon |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | UL Listed |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 3mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Stud Size | M6 |
Key Features
- Provides environmentally sealed wire connections for maximum electrical protection.
- Constructed with a heat-shrinkable nylon tube lined with hot-melt adhesive for superior insulation and water resistance.
- Supports wire sizes from 12 AWG up to 10 AWG and accommodates M6 stud size for versatile applications.
- Offers resistance to mechanical abuse, vibration, wire pull-out, and abrasion, ensuring reliable performance.
- Features a copper alloy contact plated with tin, enhancing conductivity and corrosion resistance.
- Recommended for automotive, marine, and industrial wiring where environmental sealing is important.
- Operating temperature range from -55°C to 125°C, suitable for demanding conditions.
- Complies with UL listed standards for quality assurance.
Product Description
TE Connectivity DR-4-60 DuraSeal Insulated Crimp Ring Terminal is a specialized electrical connector designed for secure and robust connections in demanding environments. This terminal is constructed with a heat-shrinkable nylon insulation tubing, lined with hot-melt adhesive that ensures a hermetic seal against water, salt, chemicals, and physical stresses.
Capable of accommodating wire sizes from 12 AWG to 10 AWG (3 mm² to 6 mm²), the terminal is intended for use with M6 stud connections, common in both automotive and marine wiring, as well as industrial harness applications. When the terminal is crimped onto a cable and subsequently heat-shrunk, the adhesive flows to encapsulate the wire, preventing ingress of moisture while offering exceptional mechanical stability.
The DuraSeal series is engineered to protect connections from vibration, wire pull-out, abrasion, and mechanical abuse. The insulated barrel is manufactured with high-quality nylon and the contact is made from copper alloy with a durable tin plating, providing both strong electrical conductivity and corrosion resistance. The vibrant yellow insulation identifies the terminal for its supported wire size category, facilitating rapid installation and verification.
With a minimum operating temperature of -55°C and maximum of 125°C, the DR-4-60 terminal meets rigorous requirements for industrial, automotive, marine, and commercial installations. The terminal’s environmental sealing capabilities make it particularly suited where frequent exposure to moisture or contaminants is expected.
Applications for this crimp ring terminal include automotive electrical systems, marine engine compartments, industrial machinery, control panels, HVAC wiring, and outdoor lighting connections where long-term performance and protection against harsh conditions are paramount.
Explore other specialized connectors and terminals from TE Connectivity in the Ring Terminal category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 12 AWG to 10 AWG, accommodating a minimum wire size of 3 mm² and a maximum of 6 mm².
It is designed to accommodate an M6 stud size, making it suitable for various applications.
The terminal features a copper alloy contact plated with tin for enhanced conductivity and corrosion resistance, while the insulation is made of nylon.
It operates within a temperature range of -55°C to 125°C, suitable for demanding environments.
The DuraSeal design provides a hermetic seal against water, salt, chemicals, and physical stresses, ensuring reliable connections in harsh conditions.
Yes, it complies with UL listed standards for quality assurance, ensuring it meets rigorous safety and performance criteria.
The overall length of this terminal is 41.5 mm, which is important for installation considerations.
It is recommended for automotive, marine, and industrial wiring, particularly in environments where environmental sealing is crucial.
The hot-melt adhesive flows to encapsulate the wire when heat-shrunk, preventing moisture ingress and enhancing mechanical stability.
The nylon insulation provides superior insulation and water resistance, contributing to the terminal's reliability in various conditions.
It provides environmentally sealed wire connections, ensuring maximum electrical protection against environmental factors.
The contact material is a copper alloy, which is essential for strong electrical conductivity and durability.
