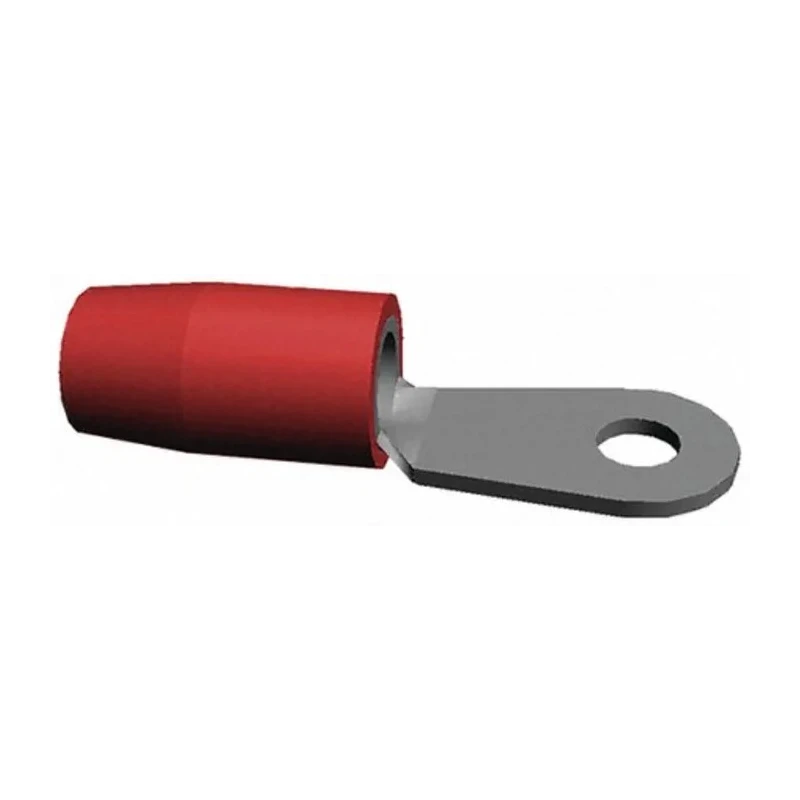

TE Connectivity PIDG Insulated Ring Terminal M2 Stud Size 22 AWG to 16 AWG Wire Size Red 324158
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Model | 324158 |
| Insulation | Insulated |
| Overall Length | 16.99mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M2 |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Copper sleeve inside barrel improves insulation support and prevents wire fraying.
- Serrations in the wire barrel ensure maximum contact and tensile strength after crimping.
- Colour-coded nylon sleeve enables easy wire size and tooling identification.
- Funnelled wire entry allows quick wire insertion for high-speed production.
- Suitable for various applications including instruments, control panels, power supplies, and transportation systems.
- Meets requirements of MIL-T-7928 Type II, Class 1 and 2 for demanding circuit environments.
Product Description
TE Connectivity 324158 PIDG Insulated Ring Terminal is a pre-insulated diamond grip ring tongue terminal designed for uniform reliability and durability in rigorous circuit environments. The precision-formed copper body provides excellent conductivity and mechanical strength.
The terminal features a copper sleeve inside the wire barrel that enhances wire insulation support and prevents fraying, combined with serrations that maximize contact efficiency and tensile strength after crimping. A nylon outer sleeve aids in wire size identification with its distinctive red color and facilitates fast wire insertion due to its funnelled design.
This PIDG ring terminal is engineered to support wire sizes ranging from 22 AWG to 16 AWG with an M2 stud size and maintains performance under operating temperatures up to 105°C. It is widely used across applications such as instrumentation, lighting, power supply systems, panel boxes, transportation, lifting equipment, motors, aerospace, and various appliances.
The construction and specialized tooling dies employed ensure a reliable and uniform crimp for consistent electrical connections. These terminals meet or exceed military specifications MIL-T-7928 Type II, Class 1 and 2, making them suitable for high reliability needs.
High conductivity copper body ensures optimal electrical performance. Copper sleeve improves wire insulation support and prevents fraying. Serrations in barrel maximize contact and tensile strength after crimping. Colour-coded nylon sleeve for easy wire size and tooling identification.
Funnelled wire entry for quick and easy wire insertion. Designed for reliable, uniform crimps with specialized tooling dies. Applications include control instruments, power supplies, aerospace, motors, and transportation industries.
This product is classified under Electronics & Electricals > Electronics Components > Ring Terminal and is ideal for industrial and commercial electrical wiring tasks requiring dependable wire termination solutions.
Explore more options in Ring Terminals and related connectors at EnvMart to find the perfect solution for your electrical component needs.
